Intermediate Servo - 2-4 Servo: Removal

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Raise and support the vehicle. .
  3. Remove the engine splash shield.
  4. Remove the transaxle fill tube.
    1. Remove the ground strap nut.
    2. Remove the fill tube bolts.
    3. Remove the fill tube.

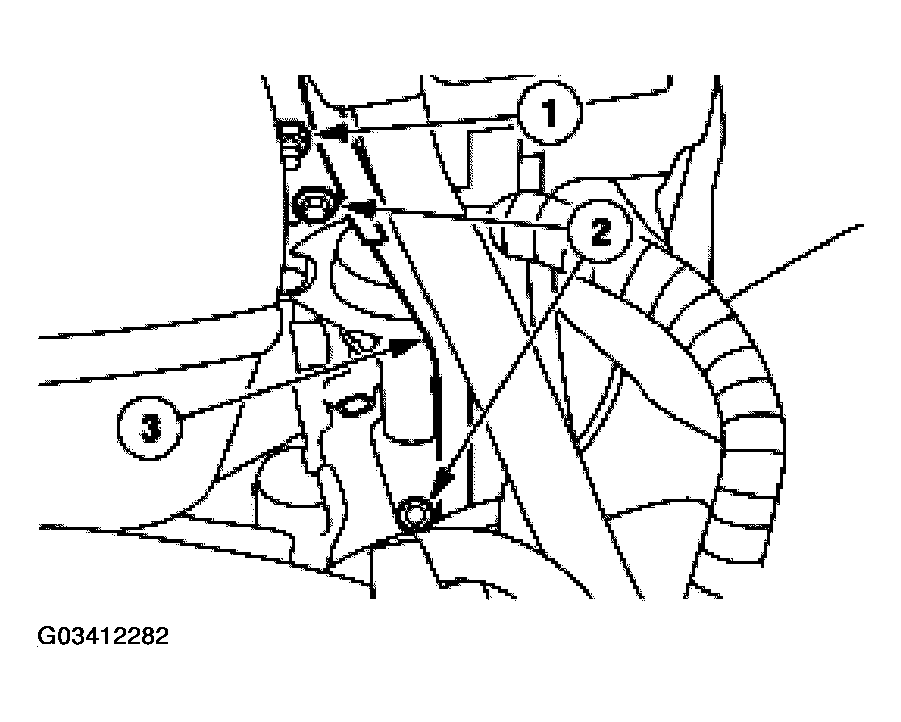

      Fig 1: Removing Ground Strap Nut
      G03412282Courtesy of FORD MOTOR CO.
  5. Remove the 2-4 servo piston retainer assembly.
    1. Remove the bolts.
    2. Remove the fourth apply piston retainer assembly.

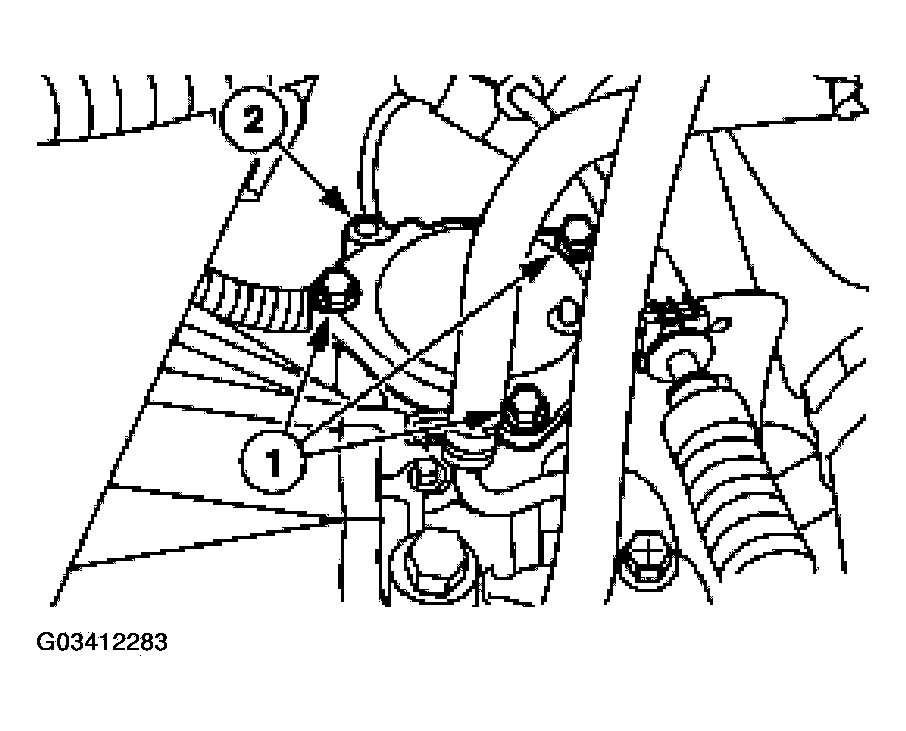

      Fig 2: Removing Bolts
      G03412283Courtesy of FORD MOTOR CO.
  6. Remove the second apply piston assembly.

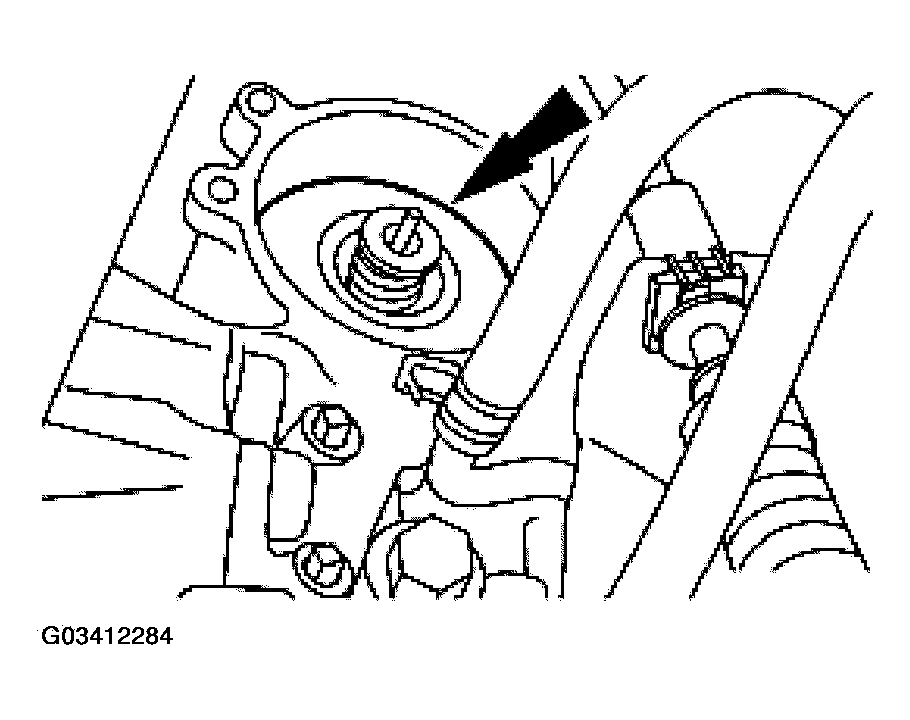

    Fig 3: Removing Second Apply Piston Assembly
    G03412284Courtesy of FORD MOTOR CO.
