Low/Reverse Clutch Piston Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

Remove the low reverse clutch piston from the low reverse clutch piston retainer.
- Apply compressed air to the fluid passage.

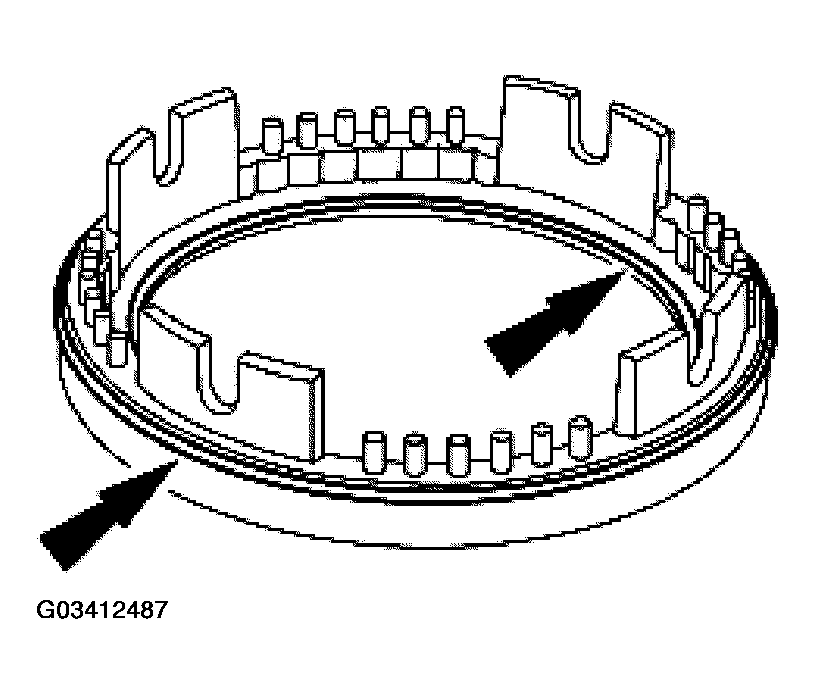

  Fig 1: Removing Low Reverse Clutch Piston From Low Reverse Clutch Piston Retainer
  Courtesy of FORD MOTOR CO.
Remove the low reverse clutch piston seals.

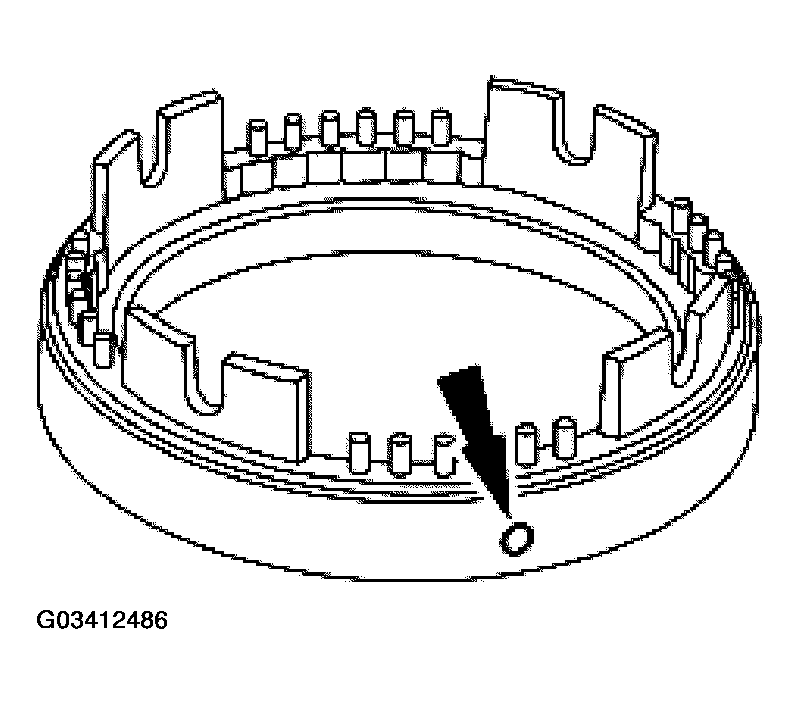

Fig 2: Removing Low Reverse Clutch Piston Seals
Courtesy of FORD MOTOR CO.
Inspect the low reverse clutch piston components for wear and damage. Replace as necessary.
