Special Tool(s)

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

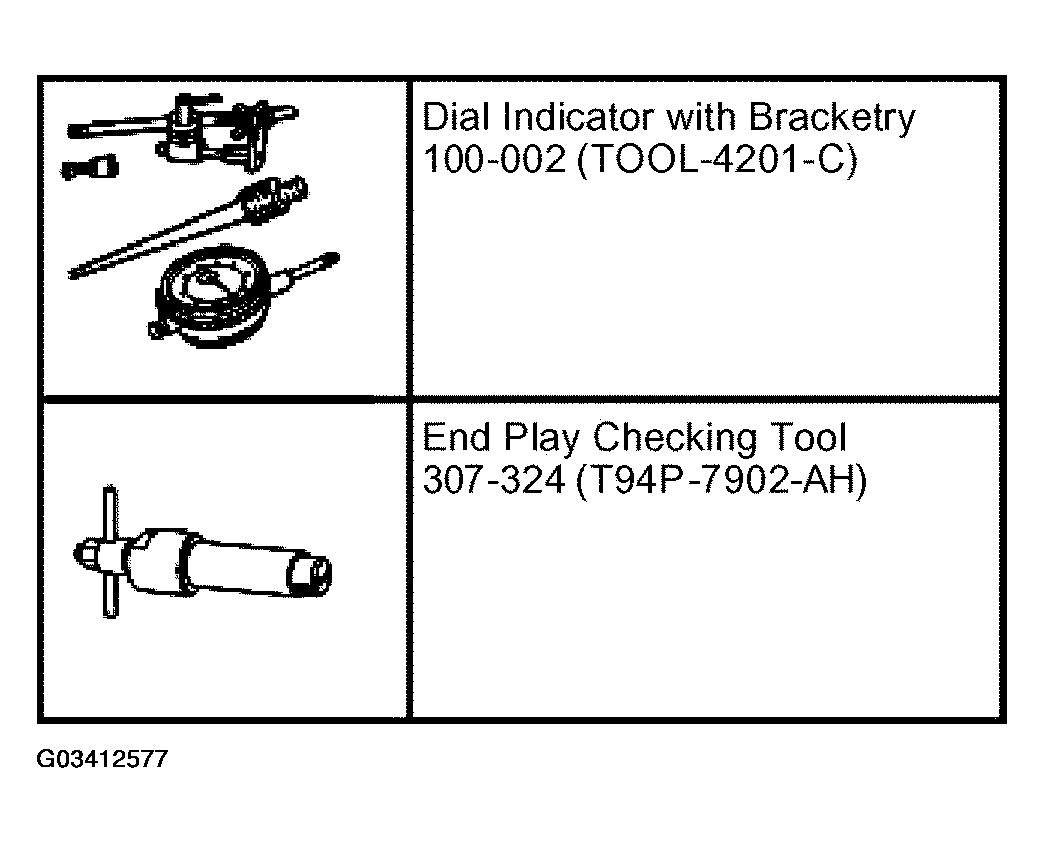

Fig 1: Identifying Special Tool(s)
G03412577Courtesy of FORD MOTOR CO.
  1. Install the special tool.
    1. Install the tool.
    2. Hand-tighten the nut.
      Fig 2: Installing Hand-Tighten Nut
      G03412578Courtesy of FORD MOTOR CO.

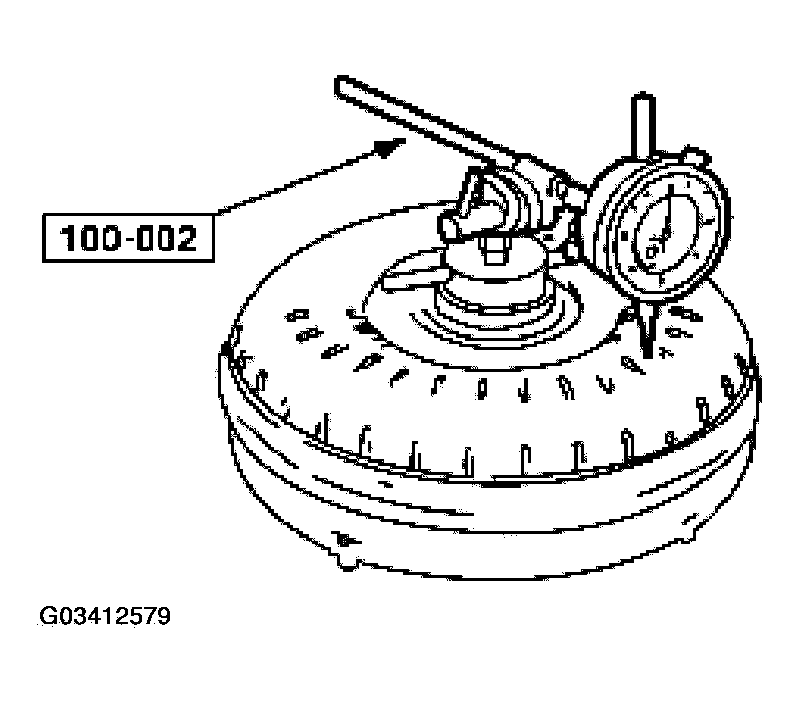

  2. Install the special tool.
    • Zero the dial on the tool.
      Fig 3: Identifying Zero Dial On Tool (1 Of 2)
      G03412579Courtesy of FORD MOTOR CO.

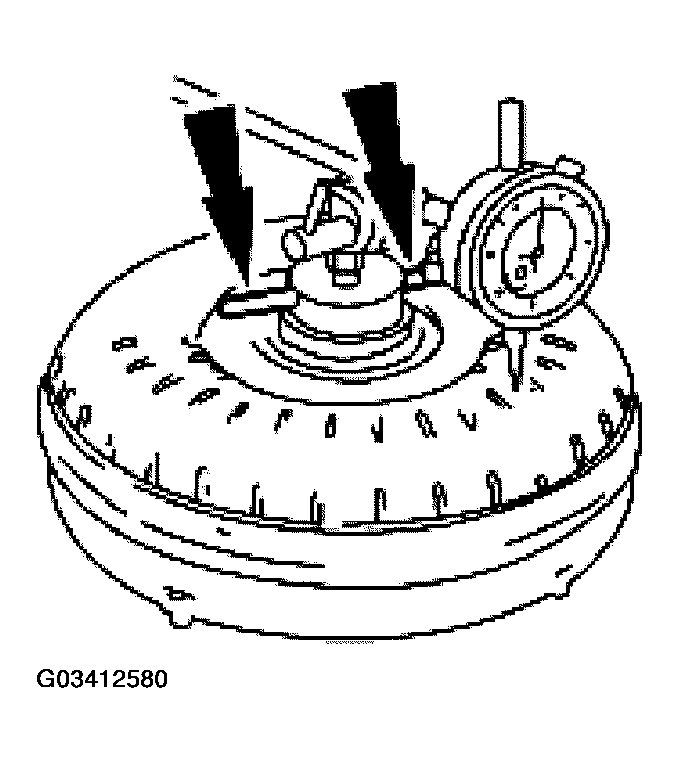

  3. Lift up on the special tool. If the reading exceeds 1.55 mm (0.061 in), install a new torque converter.
    Fig 4: Identifying Zero Dial On Tool (2 Of 2)
    G03412580Courtesy of FORD MOTOR CO.
