PINPOINT TEST B: Transmission Fluid Temperature (TFT) Sensor
WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

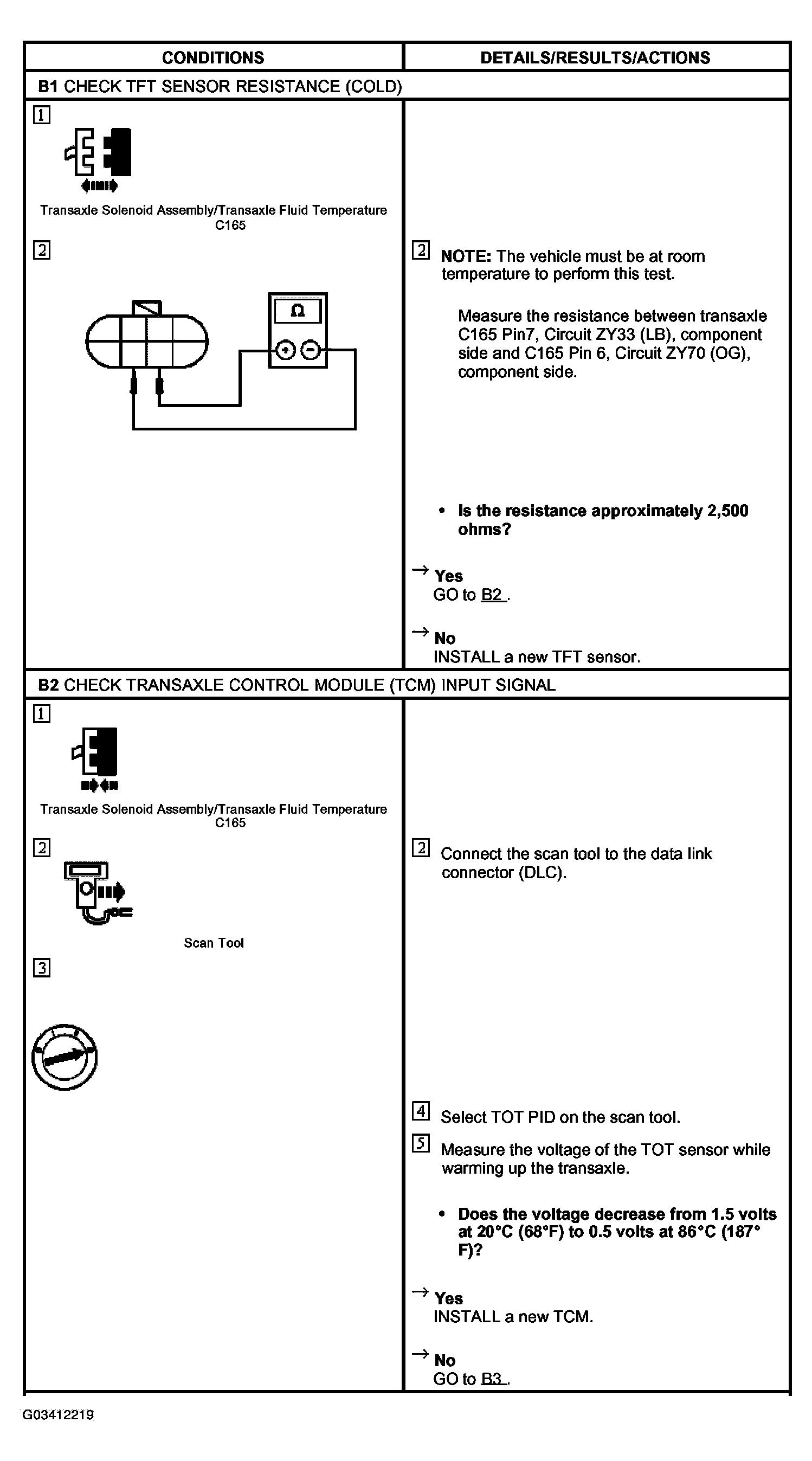

Fig 1: Identifying Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (1 Of 3)
Courtesy of FORD MOTOR CO.

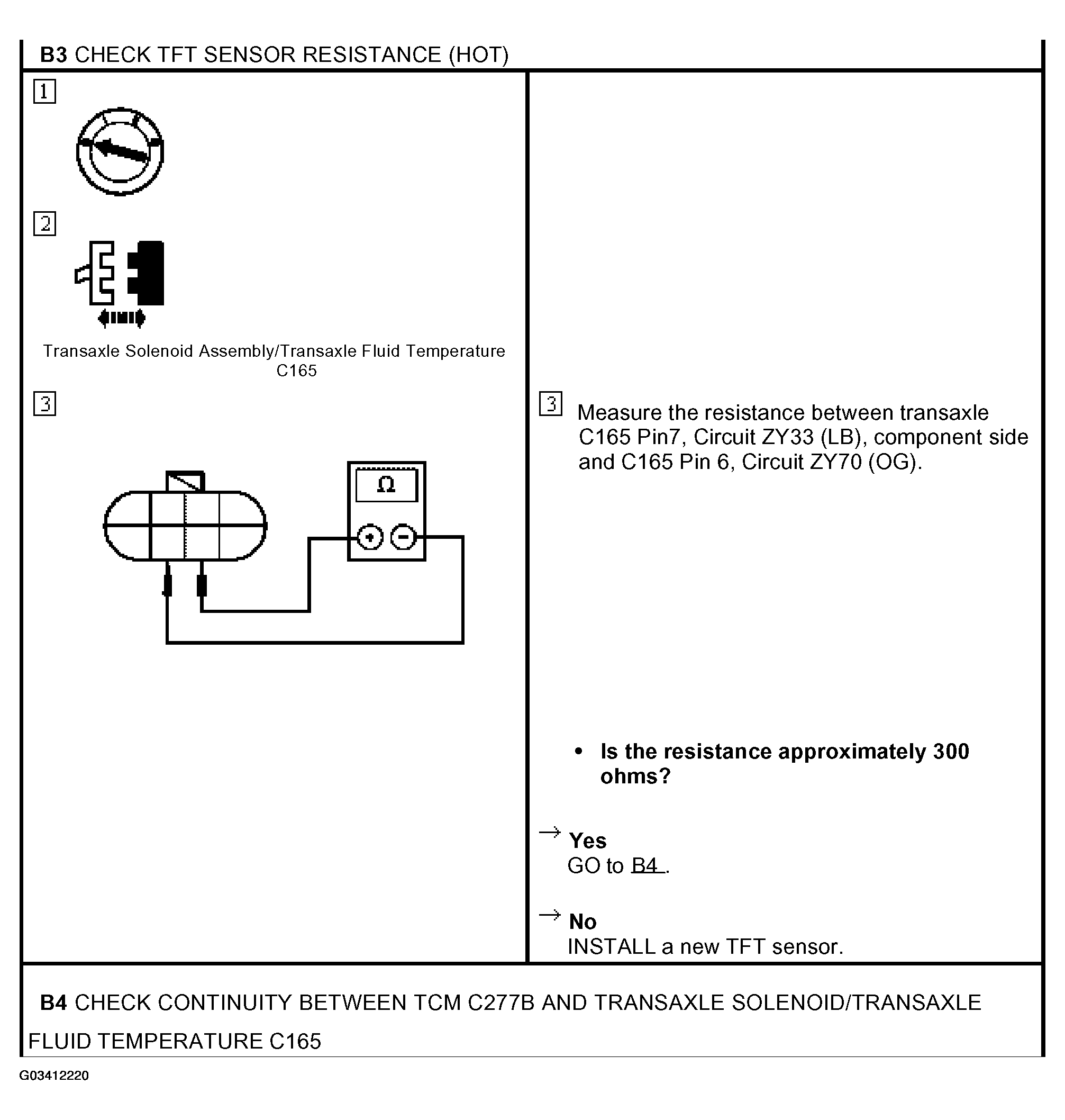

Fig 2: Identifying Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (2 Of 3)
Courtesy of FORD MOTOR CO.

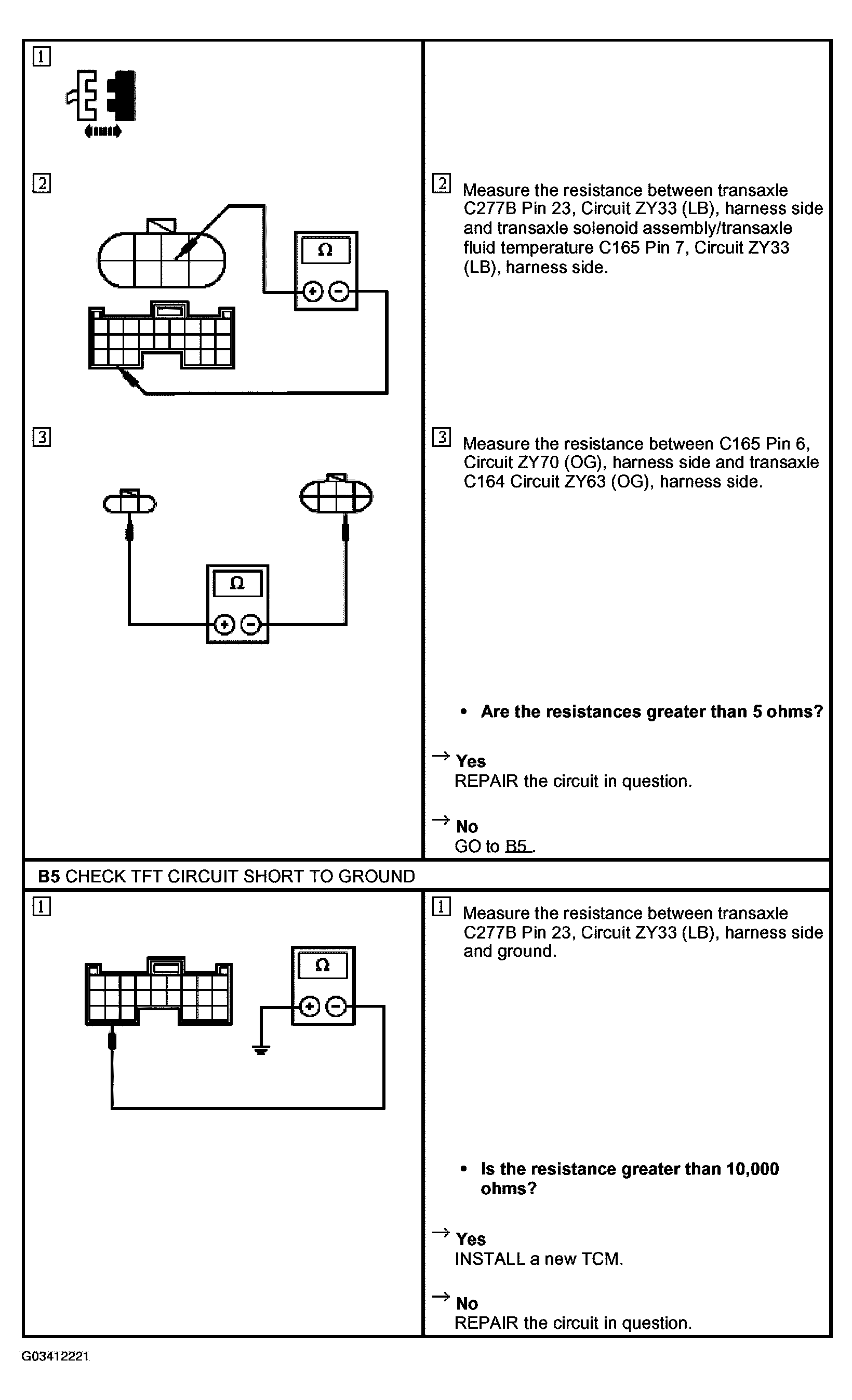

Fig 3: Identifying Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (3 Of 3)
