Bushings, Bearing and Thrust Washer Locator

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

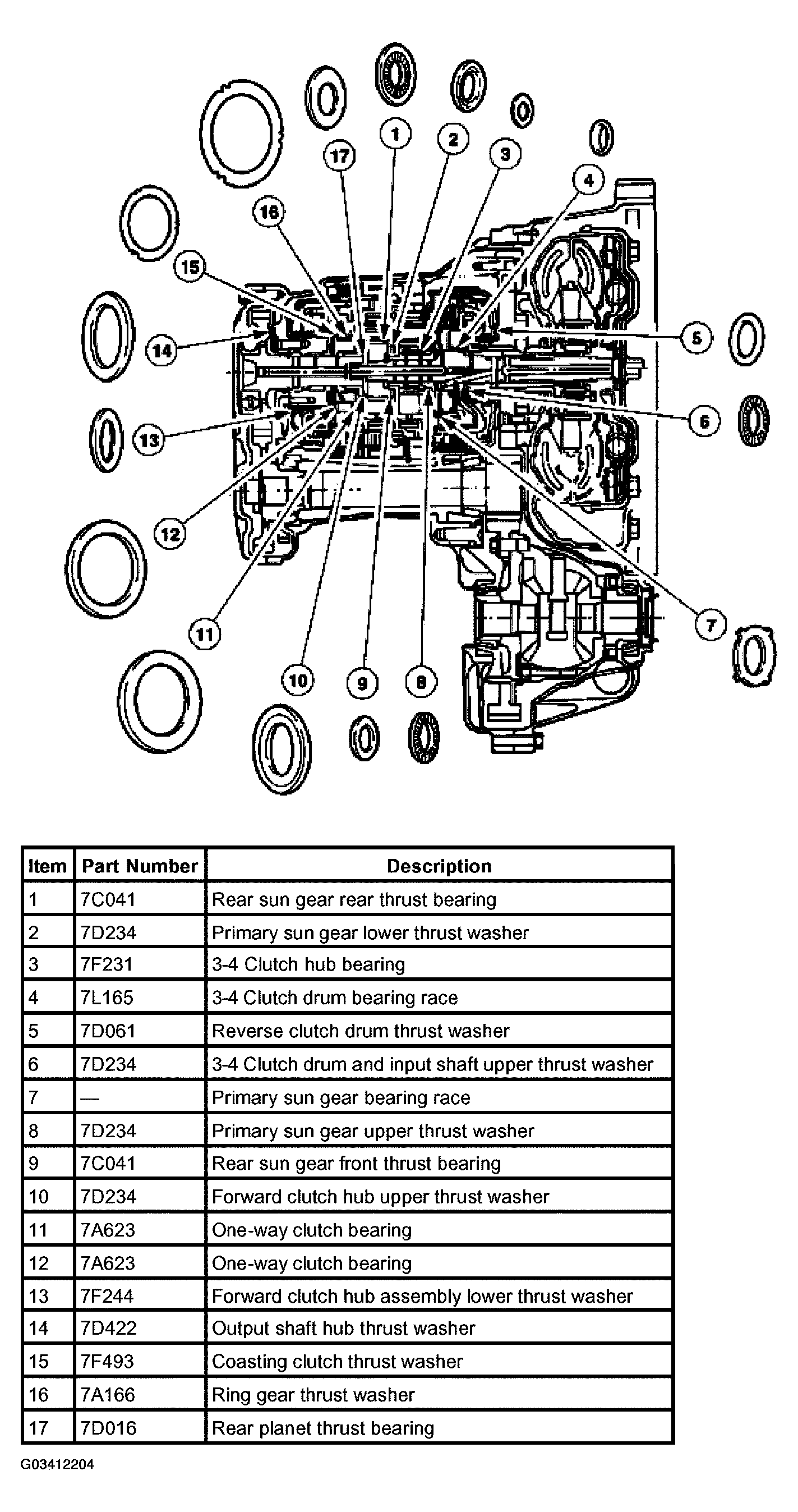

Fig 1: Disassembling Bushings, Bearing And Thrust Washer
G03412204Courtesy of FORD MOTOR CO.
