Pinpoint Test B: Vibration When The Brakes Are Applied
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

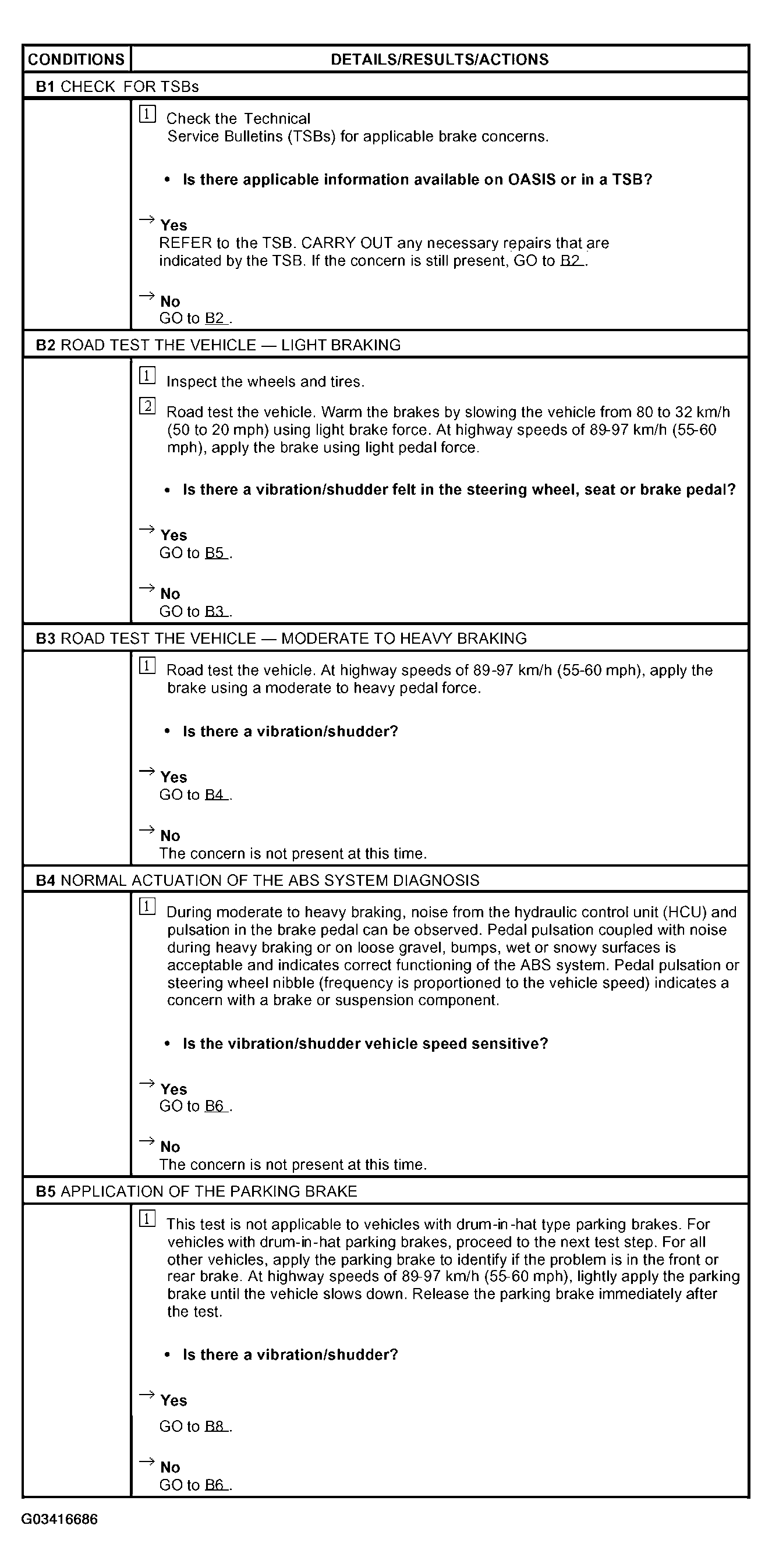

Fig 1: Pinpoint Test B Chart - Vibration When Brakes Are Applied (B1-B5)
Courtesy of FORD MOTOR CO.

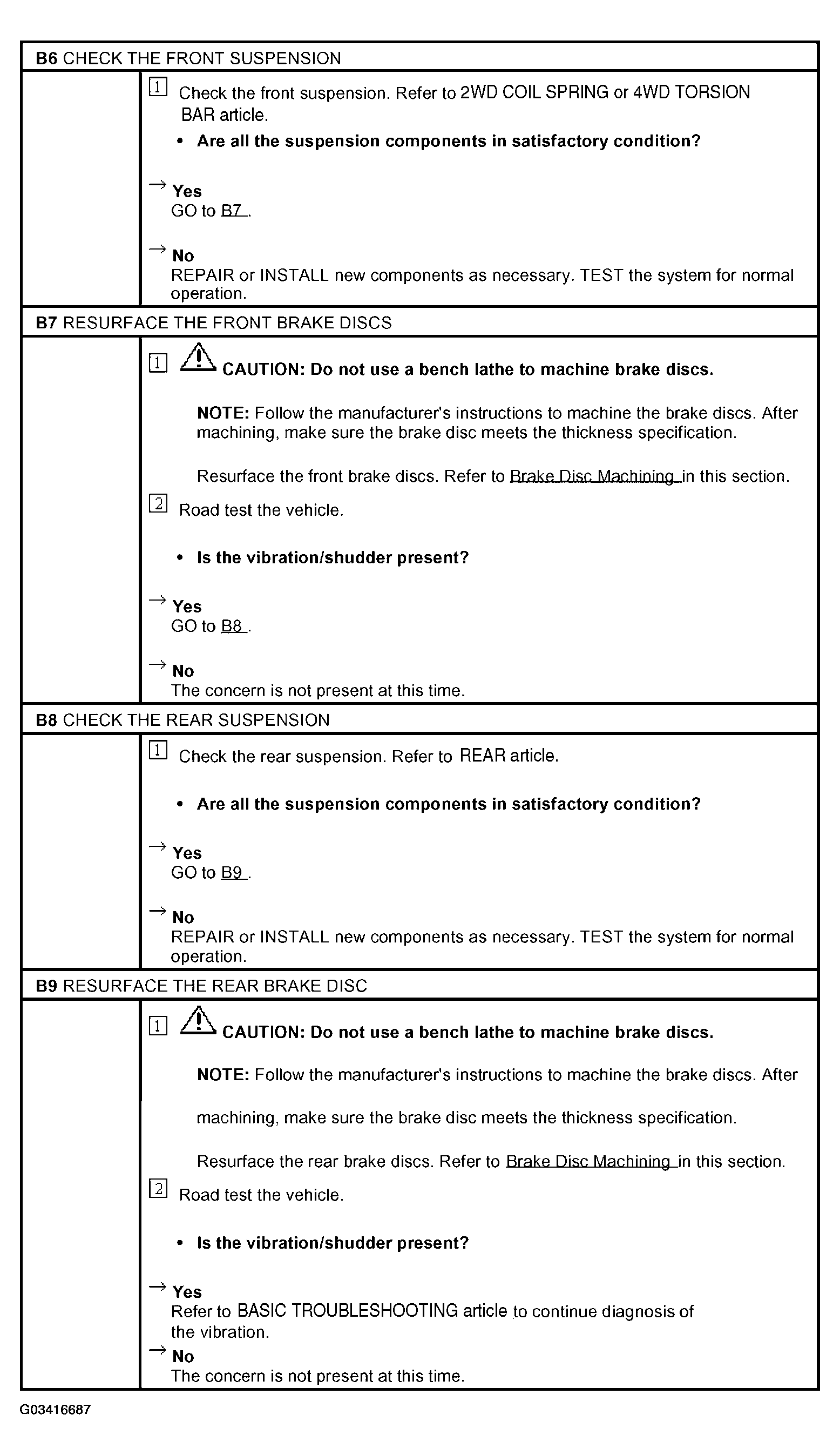

Fig 2: Pinpoint Test B Chart - Vibration When Brakes Are Applied (B6-B9)
