Height Adjuster - Shoulder Safety Belt: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation

NOTE: Make sure to tighten bolts to specification

NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or if it does not remain closed, install a new shoulder safety belt guide

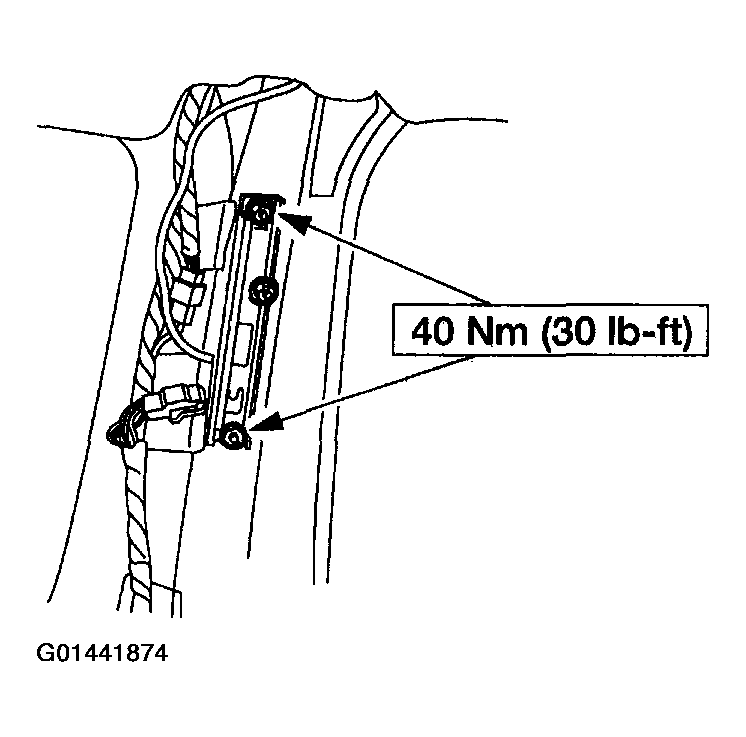

Fig 1: Installing Shoulder Safety Belt Height Adjuster

Courtesy of FORD MOTOR CO.

Fig 2: Installing Shoulder Safety Belt Guide Nut

Courtesy of FORD MOTOR CO.

Follow the removal procedure in reverse order.
- Check the active restraint system for correct operation.
