Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. For additional information, refer to SEATING .
  2. Remove the seat cushion. For additional information, refer to SEATING .
  3. Remove the six LATCH bolts.
    • Remove the LATCH.

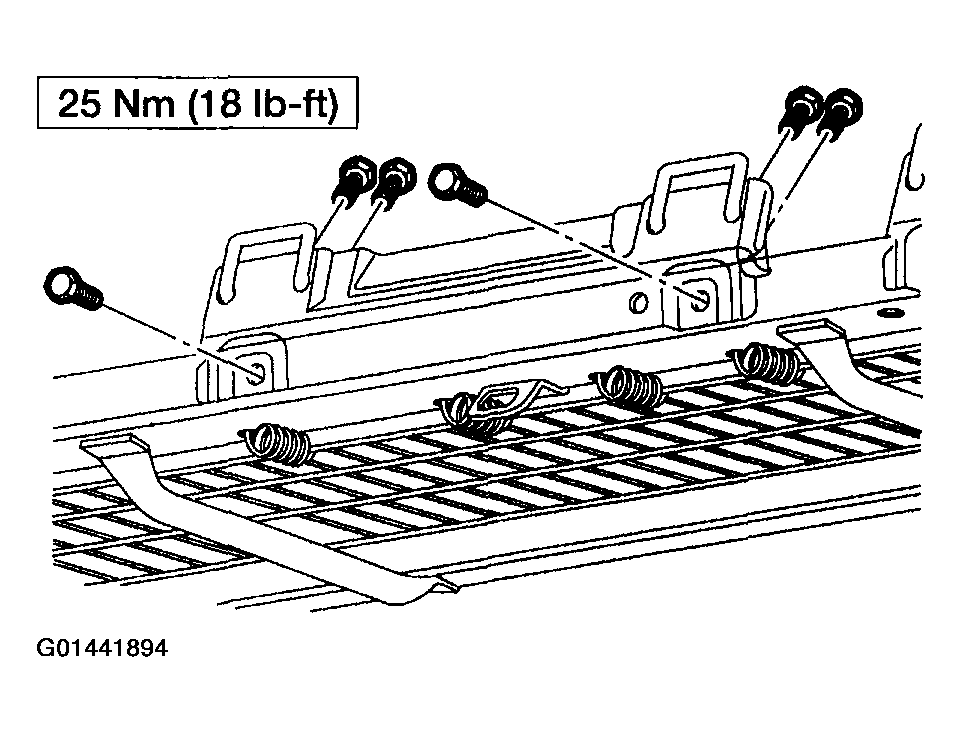

    Fig 1: Removing Six Latch Bolts
    G01441894Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
  5. Check the active restraint system for correct operation.
