Safety Belt Tongue Rotated on Belt

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

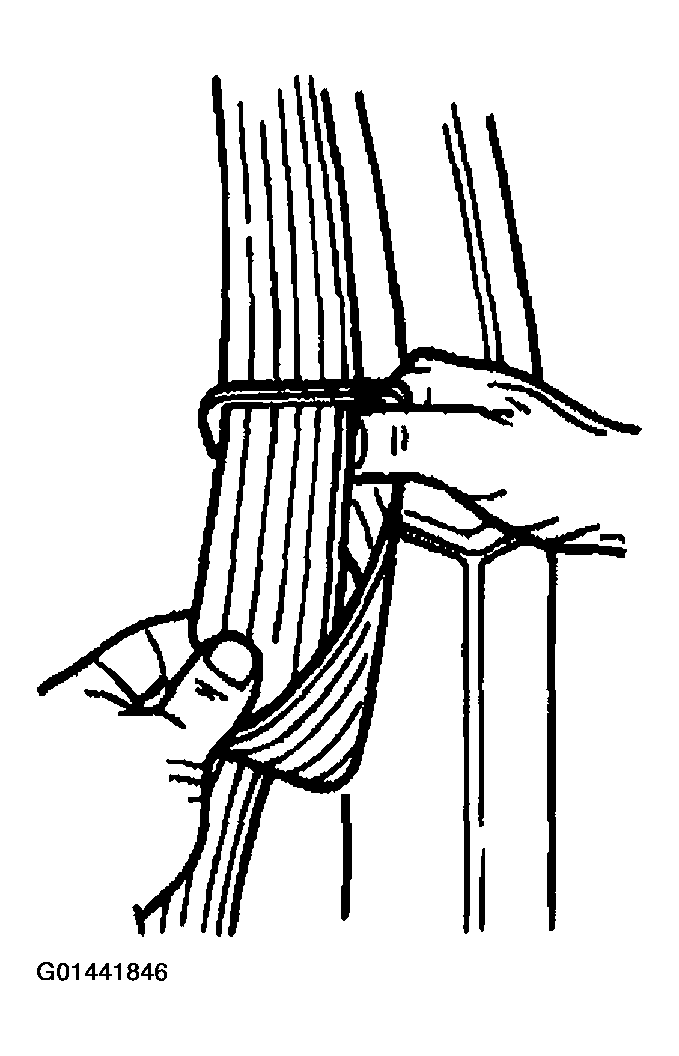

Fig 1: Checking Active Restraint System For Correct Operation

Courtesy of FORD MOTOR CO.

Grasp the belt tongue and pull down on the closest belt webbing to form a loop through the upper (narrower and longer) slot in the tongue.

Fig 2: Rotating And Folding Belt Webbing Over Itself As Required To Removing Twist
Courtesy of FORD MOTOR CO.
Working within the upper slot, rotate and fold the belt webbing over itself as required to remove the twist.
Pull the excess belt webbing back through the upper slot in the tongue.
Repeat Steps 1-3 to complete the removal of the twist at the lower (wider and larger) slot in the tongue.

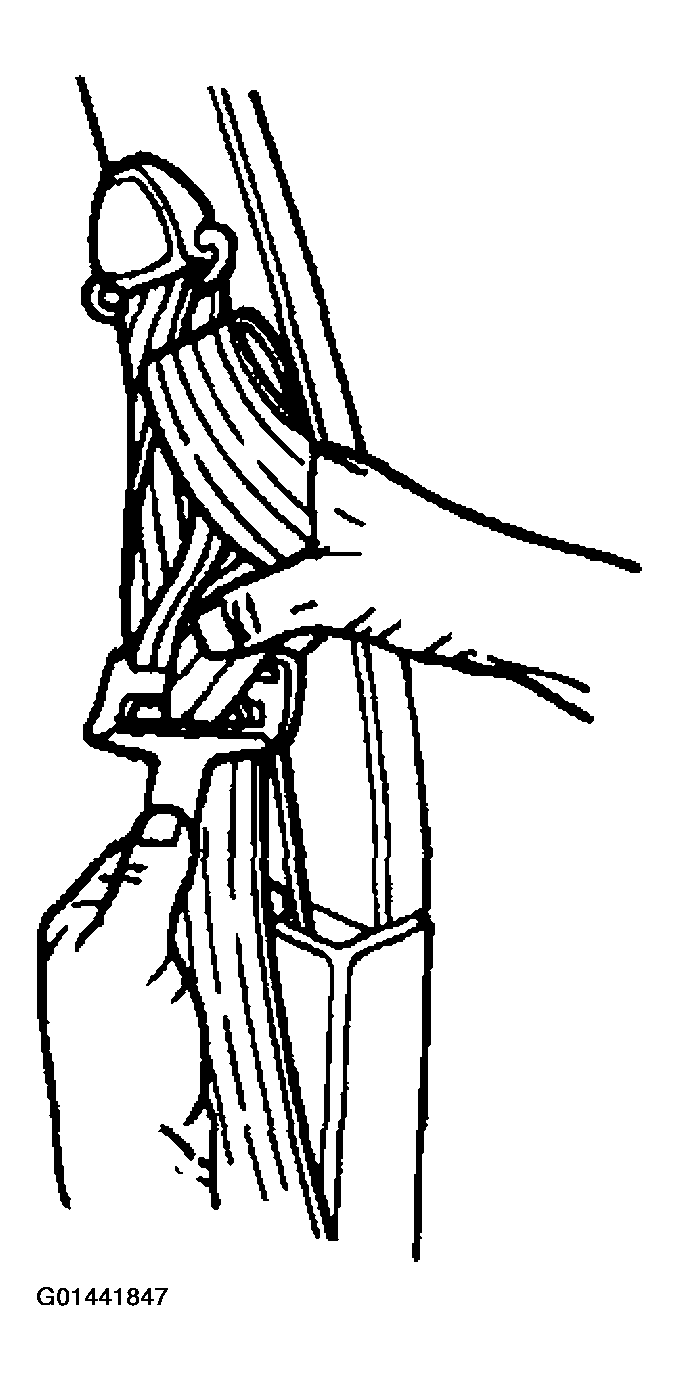

Fig 3: Pulling Excess Belt Webbing Back Through Upper Slot In Tongue
Courtesy of FORD MOTOR CO.
When completed, the safety belt should look like the illustration.

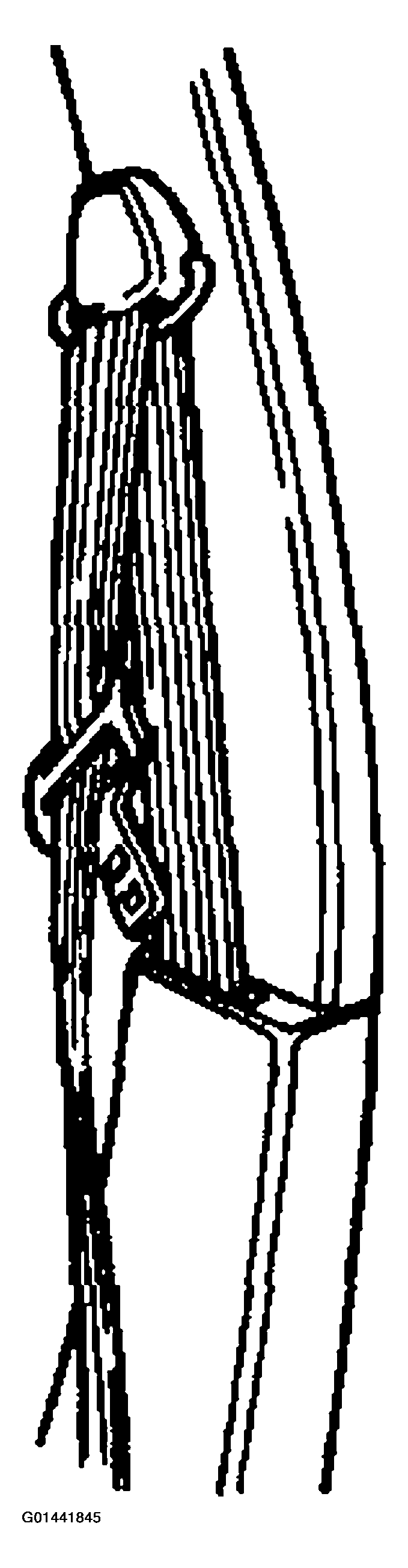

Fig 4: Identifying Safety Belt
Courtesy of FORD MOTOR CO.
