Washer Pump and Reservoir: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy

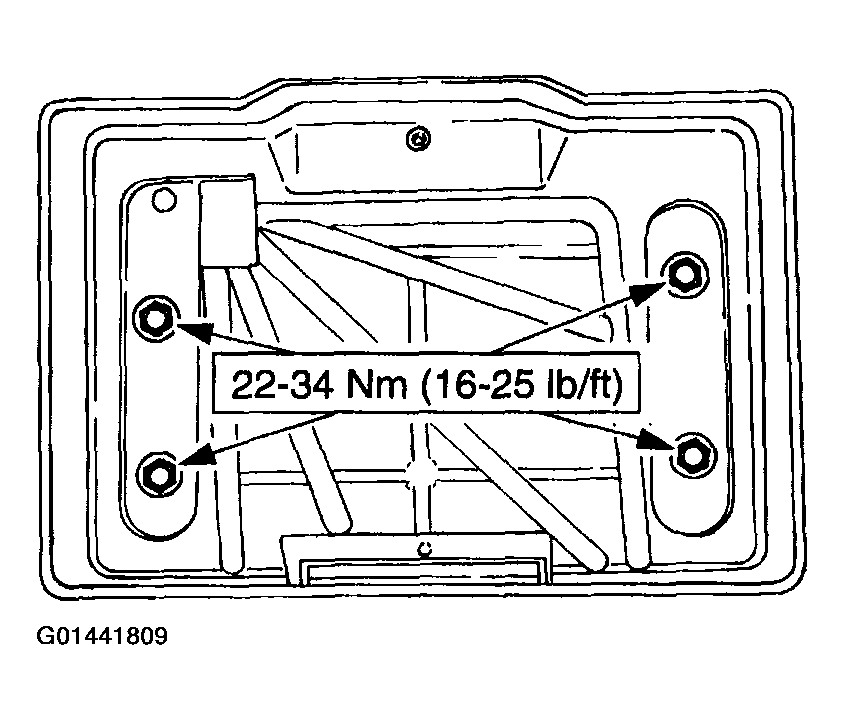

Fig 2: Battery Tray Torque Specifications

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Fill the windshield washer reservoir with windshield washer fluid.

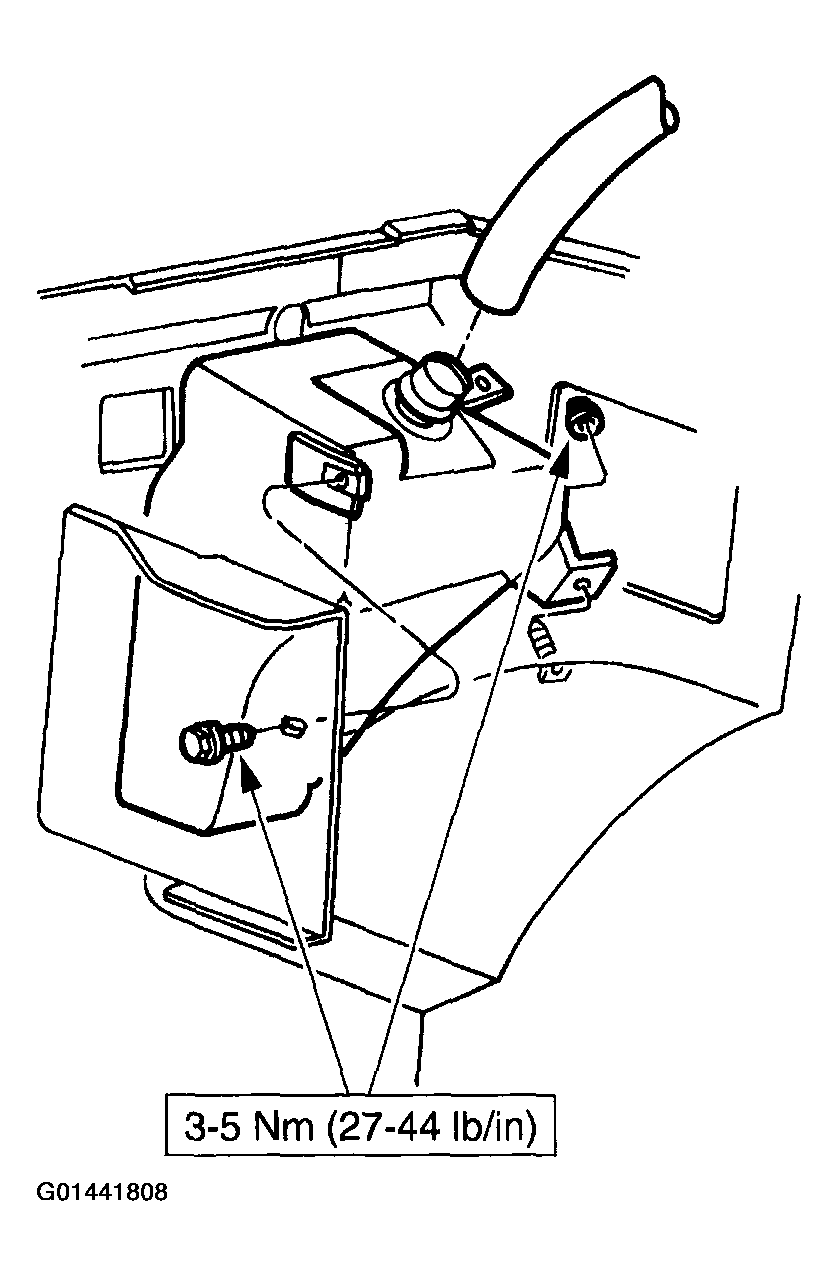

  Fig 1: Washer Pump And Reservoir Torque Specifications
  Courtesy of FORD MOTOR CO.
