Mounting Arm and Pivot Shaft: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The windshield wiper mounting arm and pivot shaft (17566) is replaced as an assembly
  1. Remove the windshield wiper pivot arms (17526); refer to PIVOT ARM .
  2. Remove the cowl top vent panels (022A68); refer to FRONT END BODY PANELS .
  3. Disconnect the windshield wiper mounting arm and pivot shaft.
    1. Remove the access cover from the dash panel (01610).
    2. Remove the retaining clip.
    3. Disconnect the windshield wiper mounting arm and pivot shaft from the windshield wiper motor (17508).

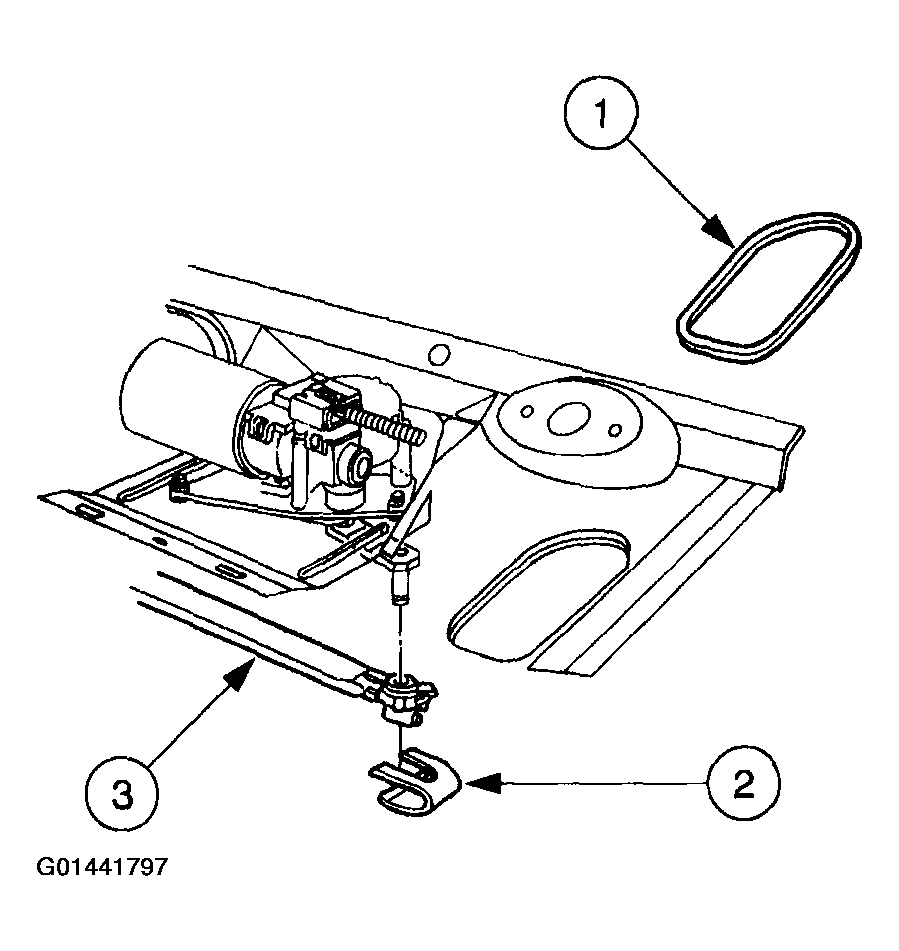

    Fig 1: Disconnecting Windshield Wiper Mounting Arm And Pivot Shaft
    G01441797Courtesy of FORD MOTOR CO.
  4. Remove the windshield wiper mounting arm and pivot shaft.
    1. Remove the screws.
    2. Remove the windshield wiper mounting arm and pivot shaft.

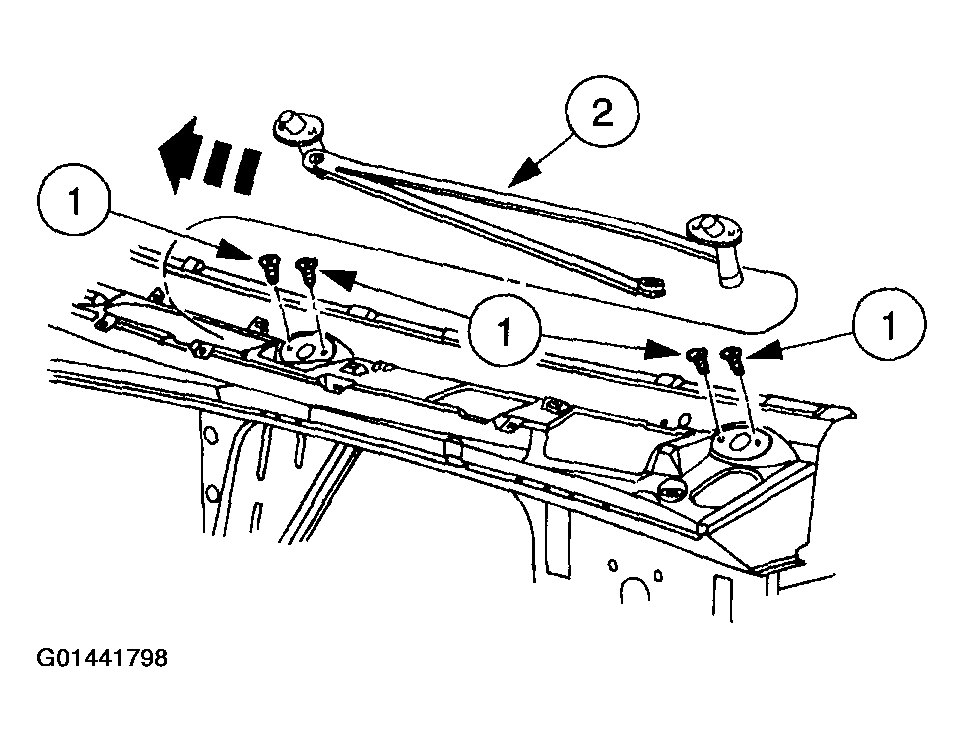

    Fig 2: Removing Windshield Wiper Mounting Arm And Pivot Shaft
    G01441798Courtesy of FORD MOTOR CO.
