Motor - Windshield Wiper: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mounting arm and pivot shaft retaining clip on the windshield wiper mounting arm and pivot shaft.
    Fig 1: Installing Mounting Arm And Pivot Shaft Retaining Clip On Windshield Wiper Mounting Arm And Pivot Shaft
    G01441802Courtesy of FORD MOTOR CO.
  2. Install the windshield wiper motor.
    1. Position the windshield wiper motor in the dash panel.
    2. Install the bolts.
    3. Connect the electrical connector.

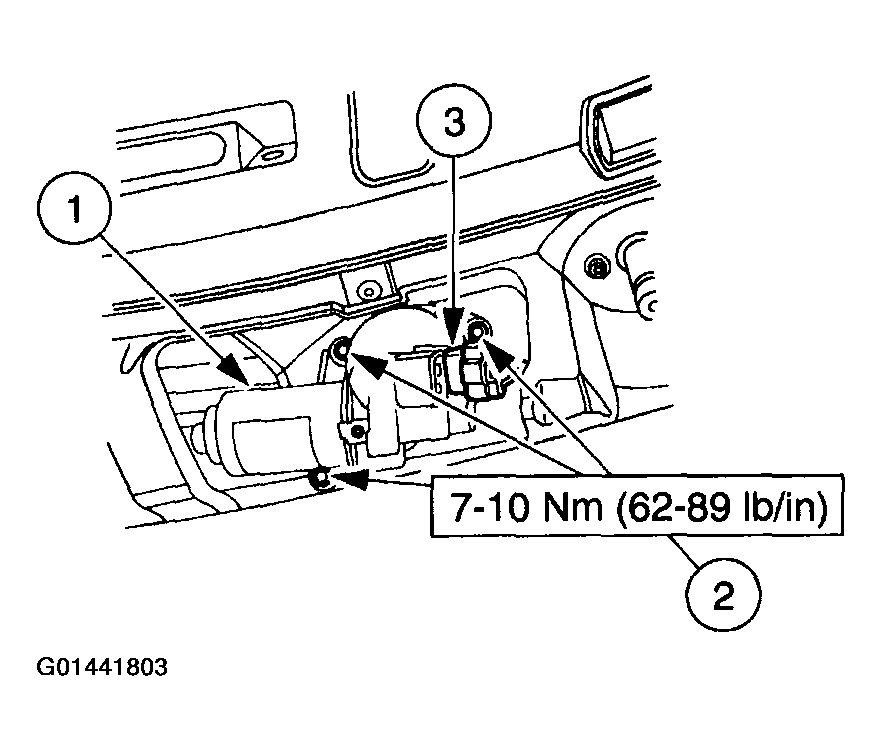

    Fig 2: Installing Windshield Wiper Motor
    G01441803Courtesy of FORD MOTOR CO.
  3. Connect the windshield wiper mounting arm and pivot shaft.
    1. Press upward on the windshield wiper mounting arm and pivot shaft after it is aligned with the windshield wiper motor.
    2. Install the access cover in the dash panel.

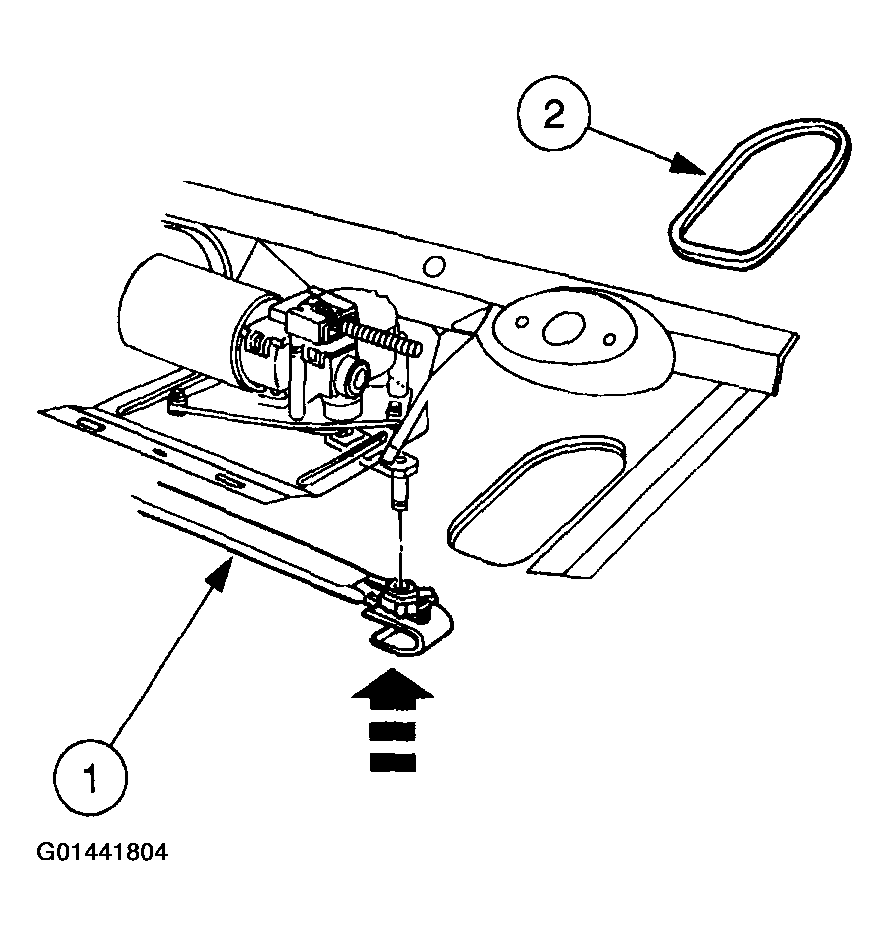

    Fig 3: Connecting Windshield Wiper Mounting Arm And Pivot Shaft
    G01441804Courtesy of FORD MOTOR CO.
  4. Install the cowl top vent panels.
  5. Install the windshield wiper pivot arms. For additional information, refer to PIVOT ARM .
