Inspection and Verification

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the windshield wiper and washer system to duplicate the condition.
  2. Visually inspect for the following obvious sings of mechanical or electrical damage.

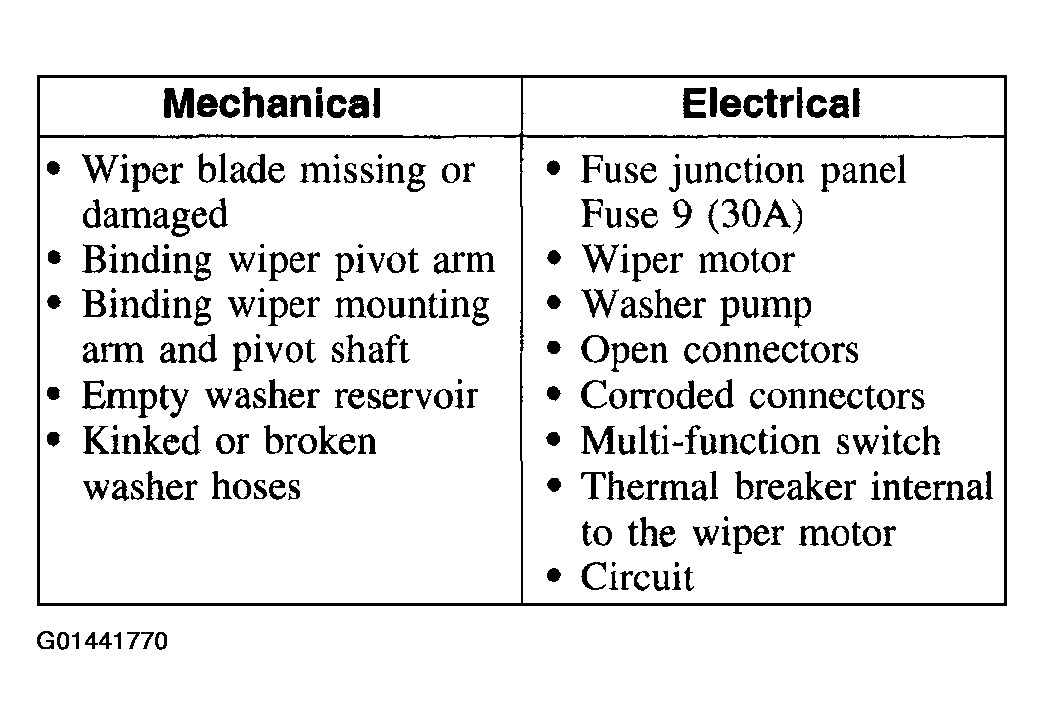

    Fig 1: Visual Inspection Chart
    G01441770Courtesy of FORD MOTOR CO.
  3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
