Instrument Panel: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  1. Remove the driver and passenger side air bag modules. Refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the steering column. For additional information, refer to STEERING COLUMN .
  3. Remove the floor console. For additional information, refer to FLOOR CONSOLE .
  4. Remove the engine cover.
    • Release the engine cover latches and remove the engine cover.
      Fig 1: Removing Engine Cover
      G01441227Courtesy of FORD MOTOR CO.
  5. Remove the instrument panel cowl top screws.
    Fig 2: Removing Instrument Panel Cowl Top Screws
    G01441228Courtesy of FORD MOTOR CO.
  6. Remove the upper center instrument panel access panel.
    Fig 3: Removing Upper Center Instrument Panel Access Panel
    G01441229Courtesy of FORD MOTOR CO.
  7. Disconnect the climate control vacuum harness connector.
    Fig 4: Disconnecting Climate Control Vacuum Harness Connector
    G01441230Courtesy of FORD MOTOR CO.
  8. Remove the LH upper access panel.
    Fig 5: Removing LH Upper Access Panel
    G01441231Courtesy of FORD MOTOR CO.
  9. Remove the instrument panel cowl top nut.
    Fig 6: Removing Instrument Panel Cowl Top Nut
    G01441232Courtesy of FORD MOTOR CO.
  10. Remove the instrument panel dash brace (044F48).
    1. Remove the six dash brace bolts.
    2. Remove the instrument panel dash brace.

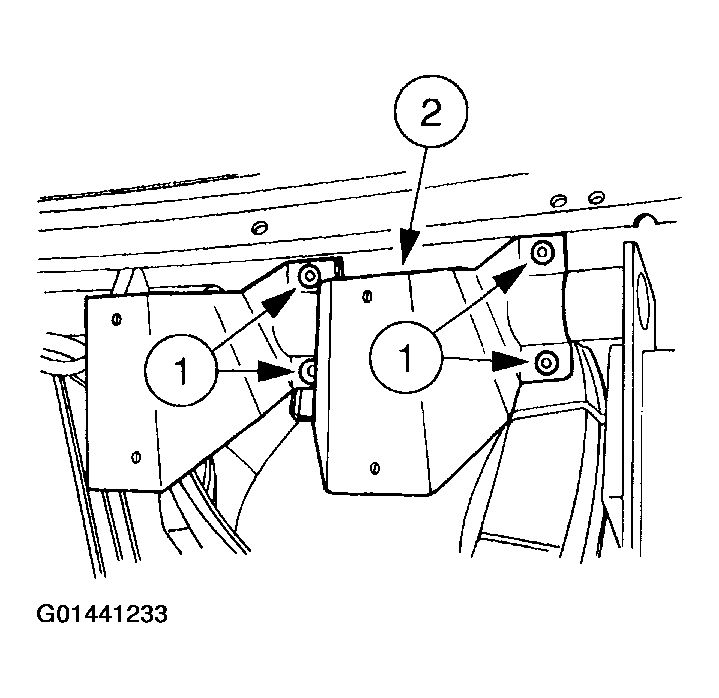

    Fig 7: Removing Instrument Panel Dash Brace
    G01441233Courtesy of FORD MOTOR CO.
  11. From under the hood, position the coolant reservoir aside.
    1. Remove the bolts.
    2. Position the coolant reservoir aside.

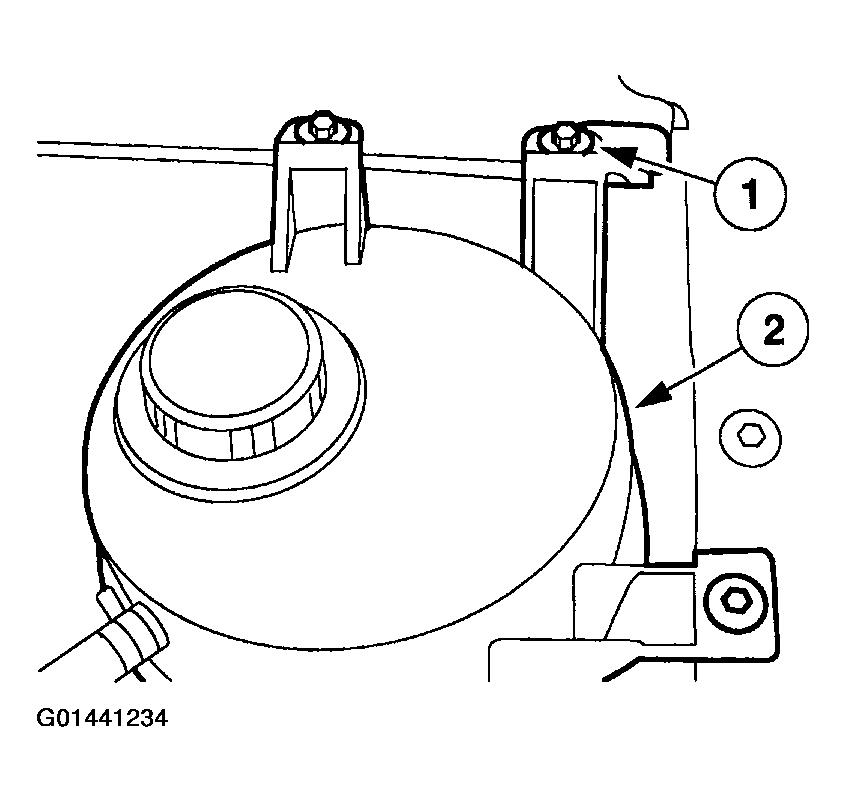

    Fig 8: Positioning Coolant Reservoir Aside
    G01441234Courtesy of FORD MOTOR CO.
  12. Remove the main wiring assembly/lower bulkhead connector.
    1. Loosen the bulkhead connector bolt.
    2. Disconnect the bulkhead connector clips.
    3. Remove the bulkhead connector.

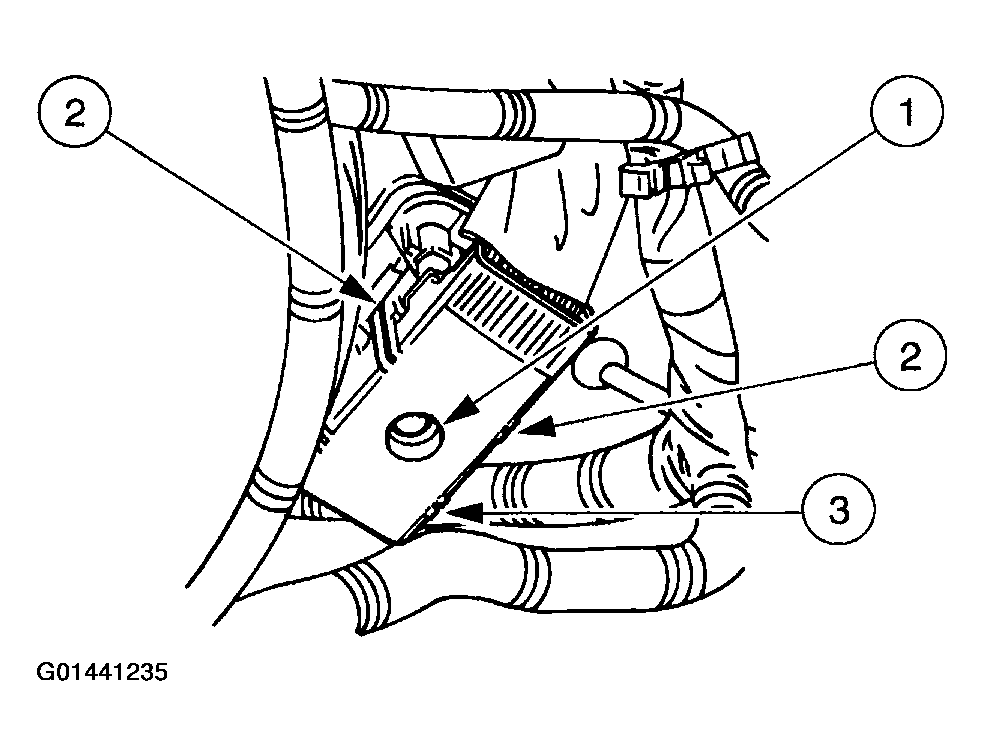

    Fig 9: Removing Bulkhead Connector
    G01441235Courtesy of FORD MOTOR CO.
  13. Remove the RH A-pillar lower trim panel.

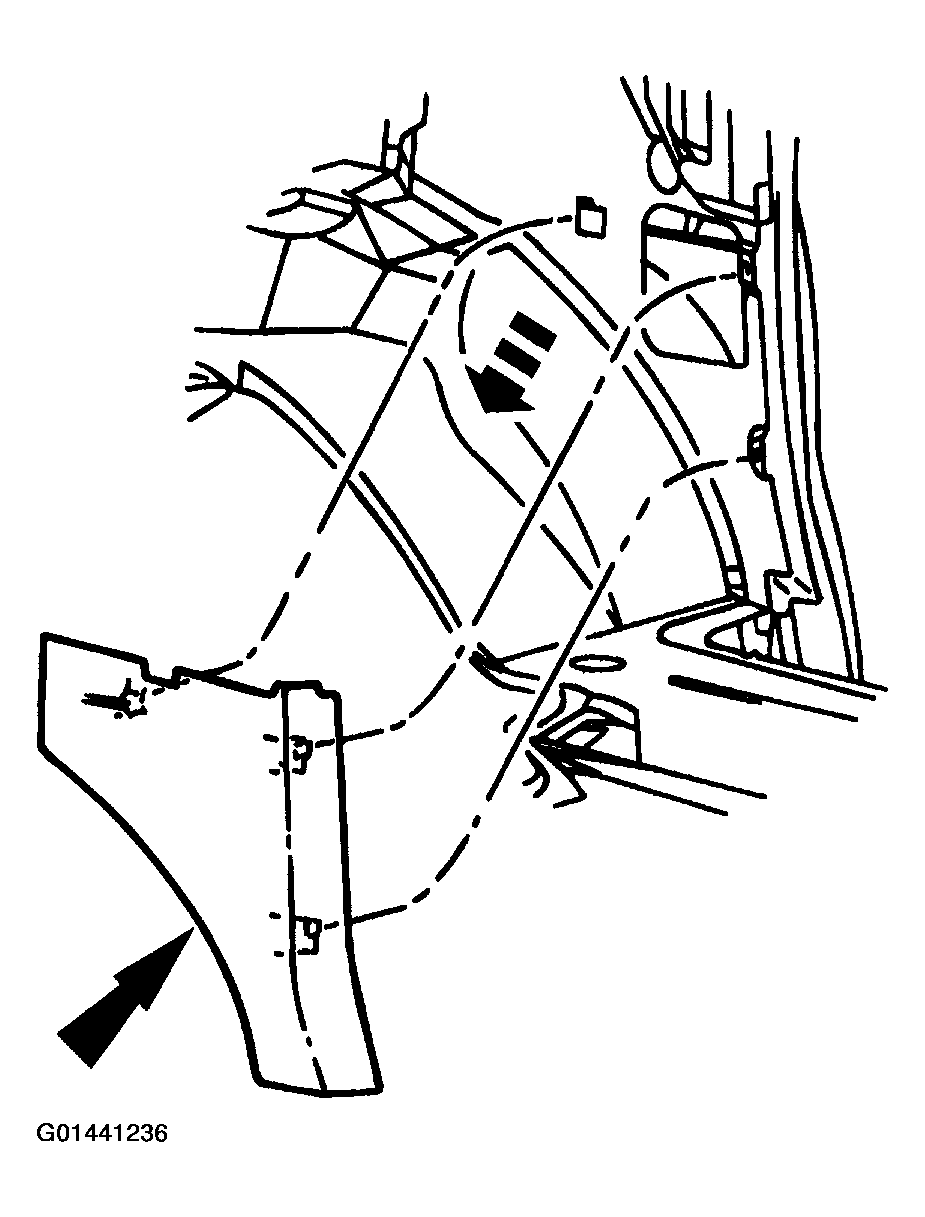

    Fig 10: Removing RH A-Pillar Lower Trim Panel
    G01441236Courtesy of FORD MOTOR CO.
  14. Disconnect the electronic crash sensor (ECS) module electrical connector.
    1. Remove the locking clip.
    2. Disconnect the connector.

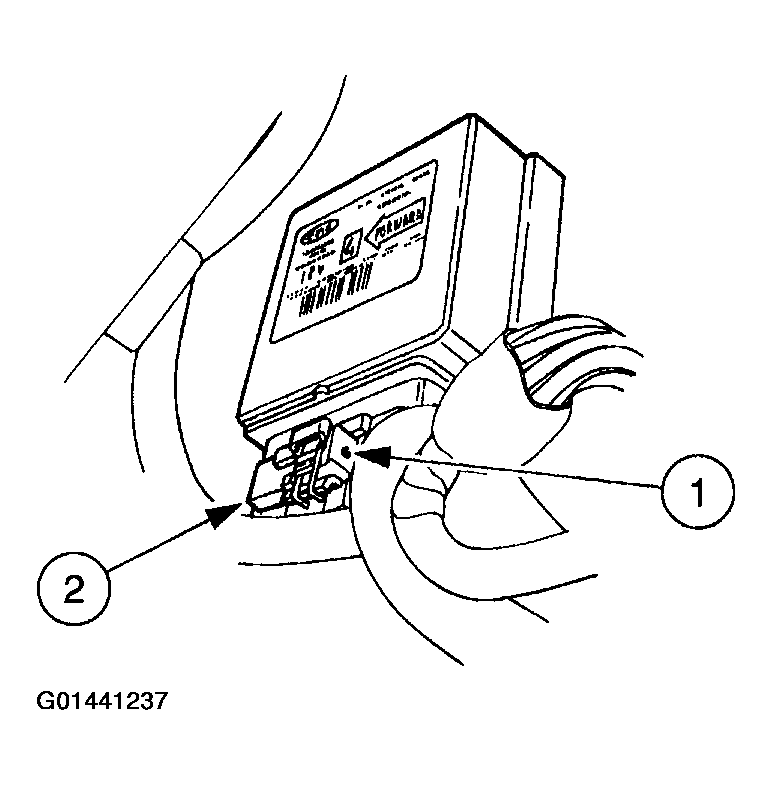

    Fig 11: Disconnecting Electronic Crash Sensor Module Electrical Connector
    G01441237Courtesy of FORD MOTOR CO.

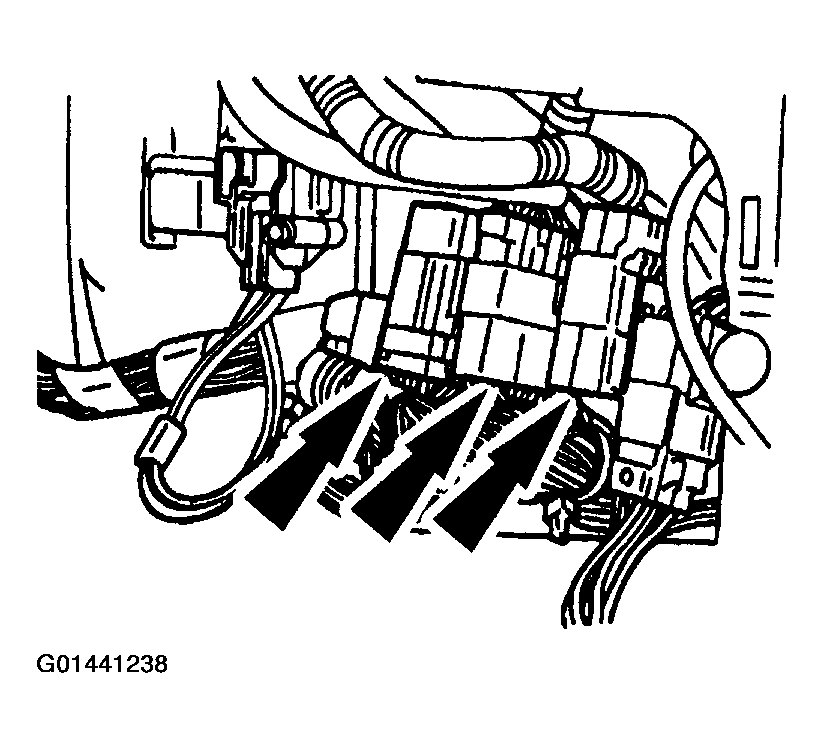

  15. Disconnect the RH instrument panel cowl side wiring electrical connectors.
    Fig 12: Disconnecting RH Instrument Panel Cowl Side Wiring Electrical Connectors
    G01441238Courtesy of FORD MOTOR CO.
  16. Disconnect the antenna cable from the radio and release the cable locators from the instrument panel.
  17. Remove the RH instrument panel bolts.

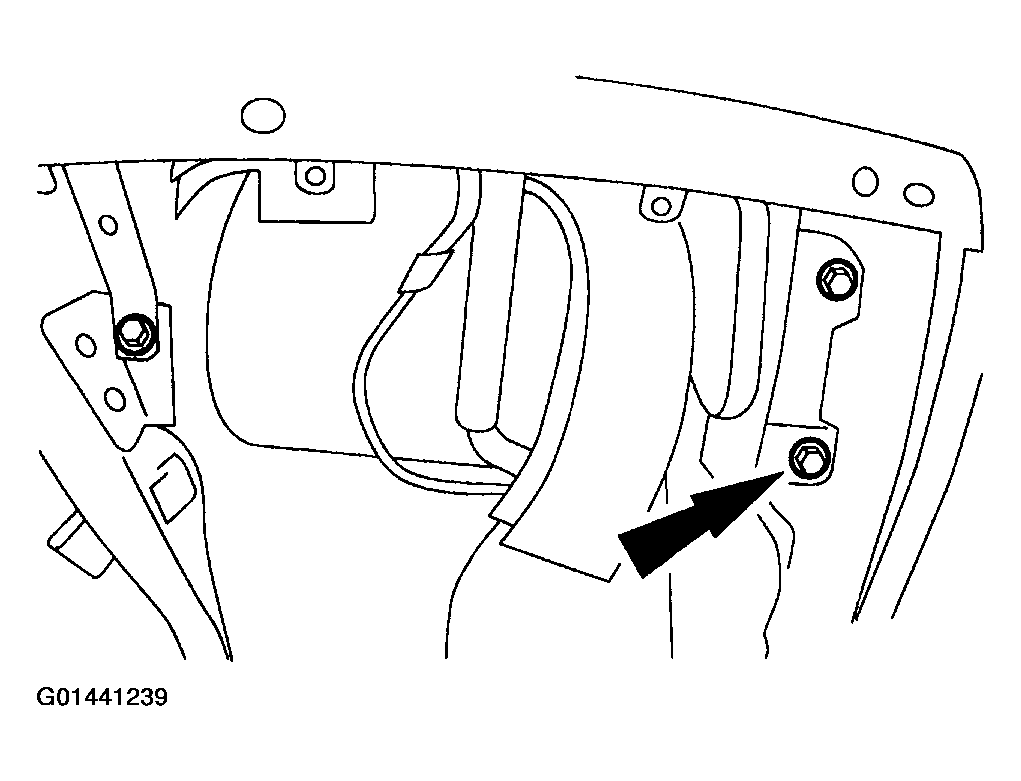

    Fig 13: Removing RH Instrument Panel Bolts
    G01441239Courtesy of FORD MOTOR CO.
  18. Remove the LH instrument panel bolts.

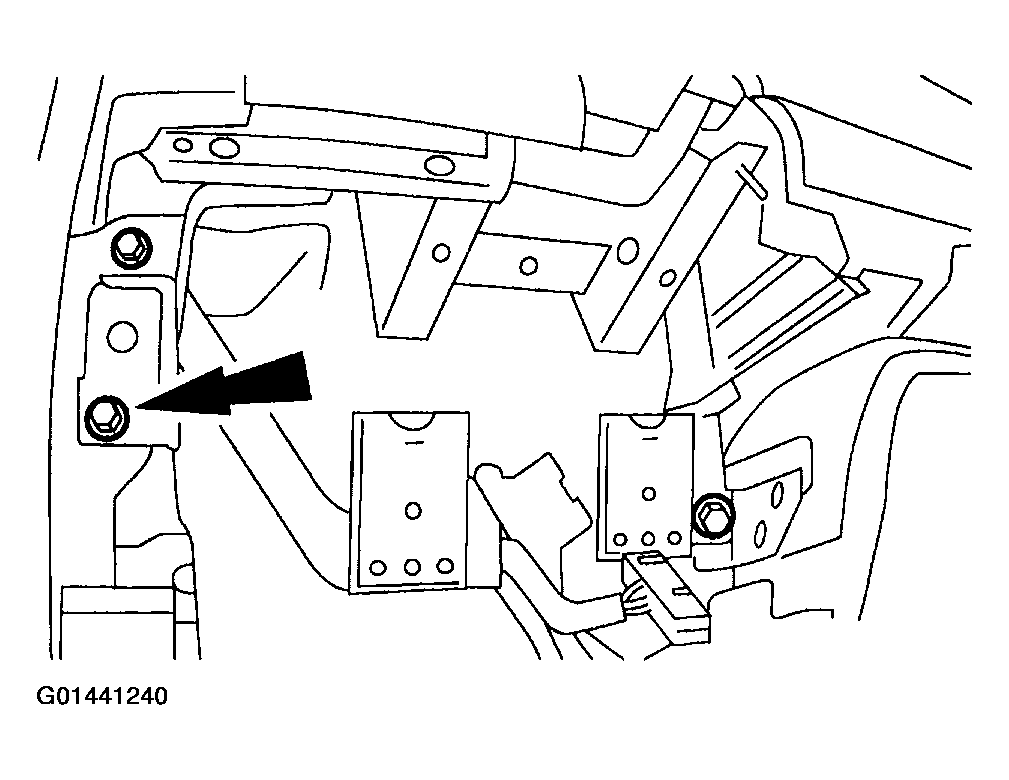

    Fig 14: Removing LH Instrument Panel Bolts
    G01441240Courtesy of FORD MOTOR CO.
    19. NOTE: Removing the instrument panel (04320) from the vehicle requires an assistant

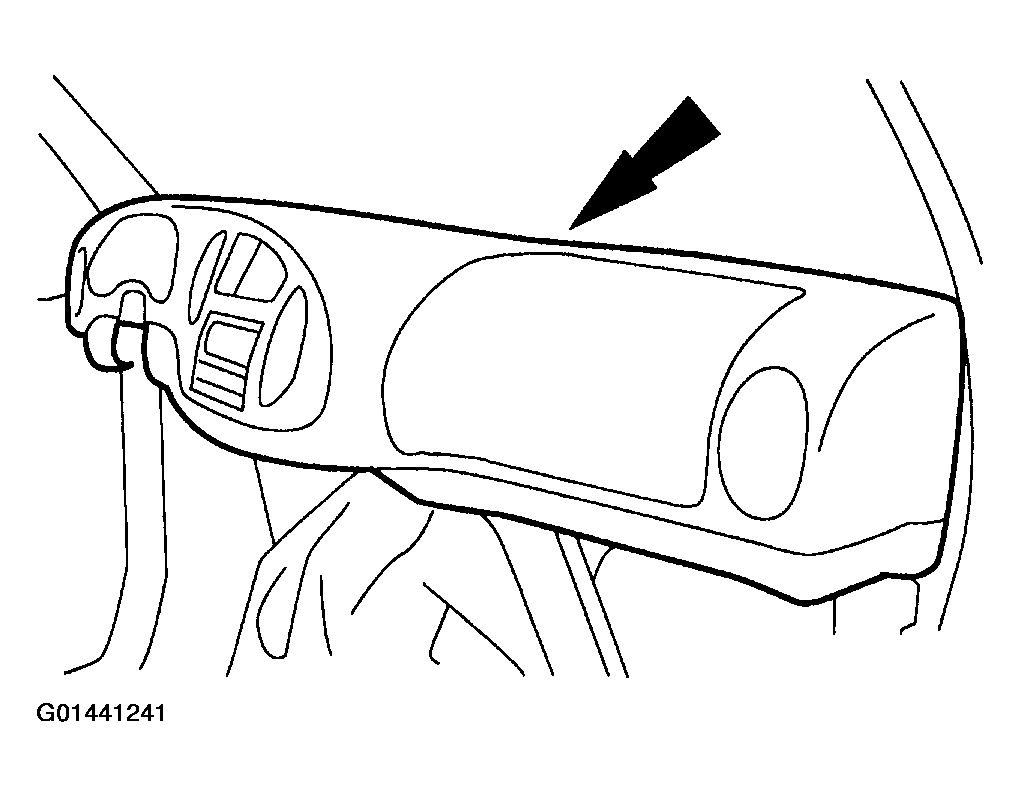

    Fig 15: Removing Instrument Panel From Vehicle Through Passenger Side Door
    G01441241Courtesy of FORD MOTOR CO.
  19. Remove the instrument panel from the vehicle through the passenger side door.
