Door Window Glass Adjustment

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel (23942); for additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Loosen, but do not remove, the window regulator bracket upper nuts.

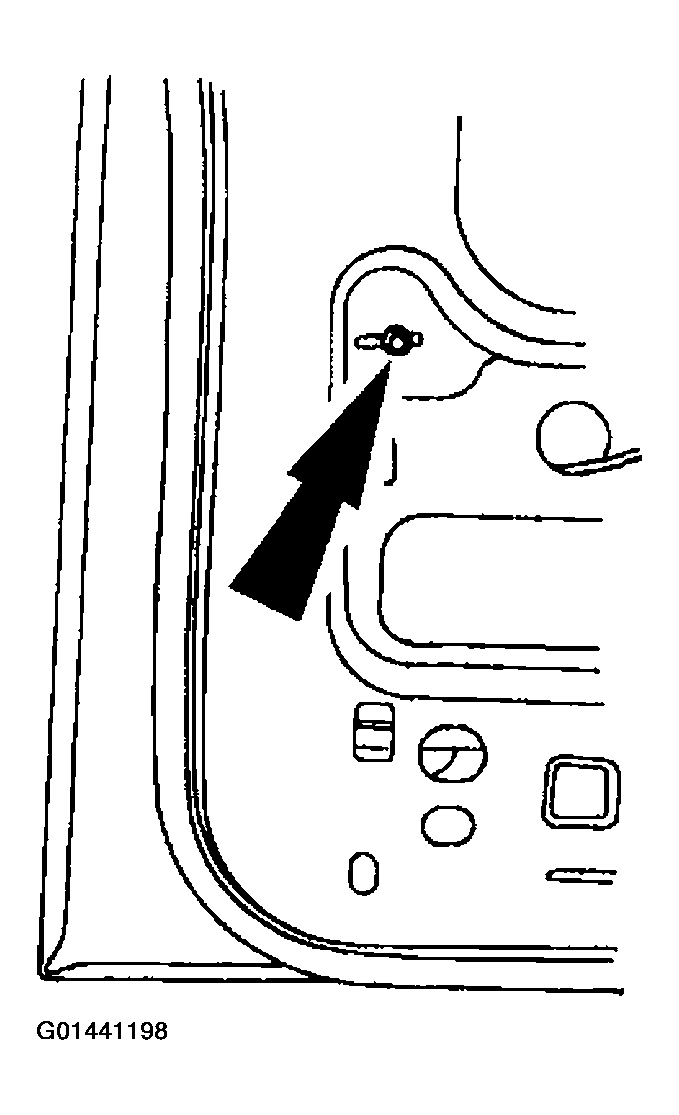

Fig 1: Loosening Window Regulator Bracket Upper Nuts
Courtesy of FORD MOTOR CO.
Raise the front door window glass to the full up position, and tighten the nuts.

Fig 2: Raising Front Door Window Glass To Full Up Position
Courtesy of FORD MOTOR CO.
Loosen, but do not remove, the rear glass channel bolt.

Fig 3: Loosening Rear Glass Channel Bolt
Courtesy of FORD MOTOR CO.
Lower the front door window glass partway, to allow adjustment.
Move the front door window glass to the rearward position, and tighten the bolt.

Fig 4: Moving Front Door Window Glass To Rearward Position
Courtesy of FORD MOTOR CO.
