Seat - Rear, Quad Bucket: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear bucket seat in the vehicle.
From the passenger side, insert the four pins in the seat support into the four holes in the seat striker.

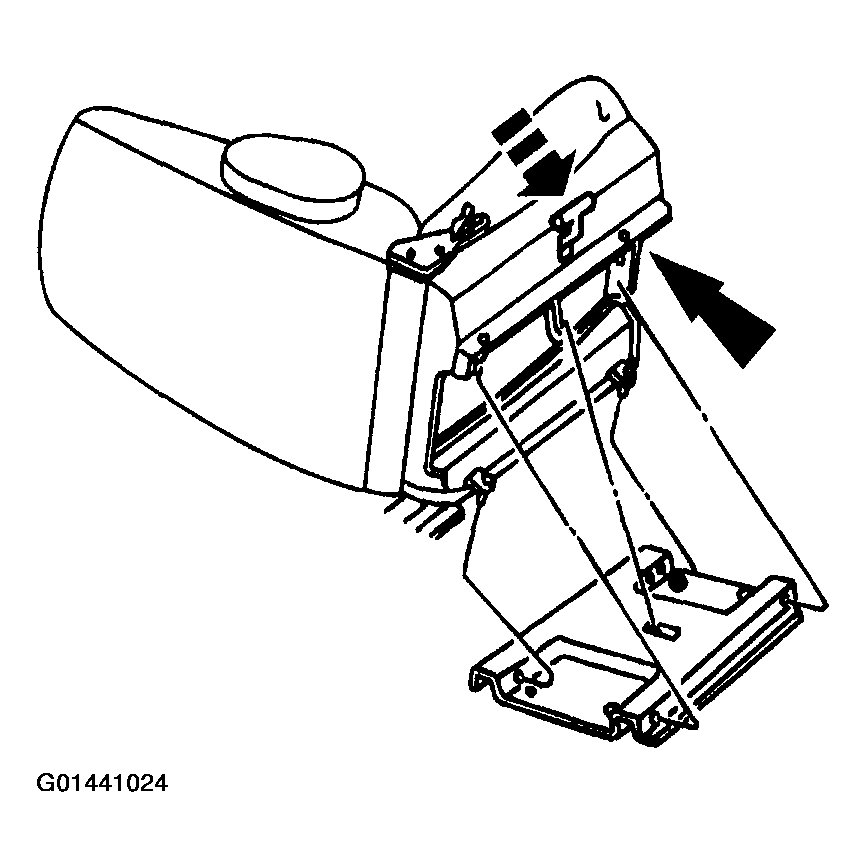

Fig 1: Positioning Rear Bucket Seat In Vehicle
Courtesy of FORD MOTOR CO.
Rotate the handle downward and in as far as it will go, to lock the rear bucket seat in place.

Fig 2: Rotating Handle Downward
Courtesy of FORD MOTOR CO.
Make sure the safety belt is not twisted, then insert the safety belt tongue into the detachable anchor until you hear a "click" and feel the latch engage.
