Interior Trim

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

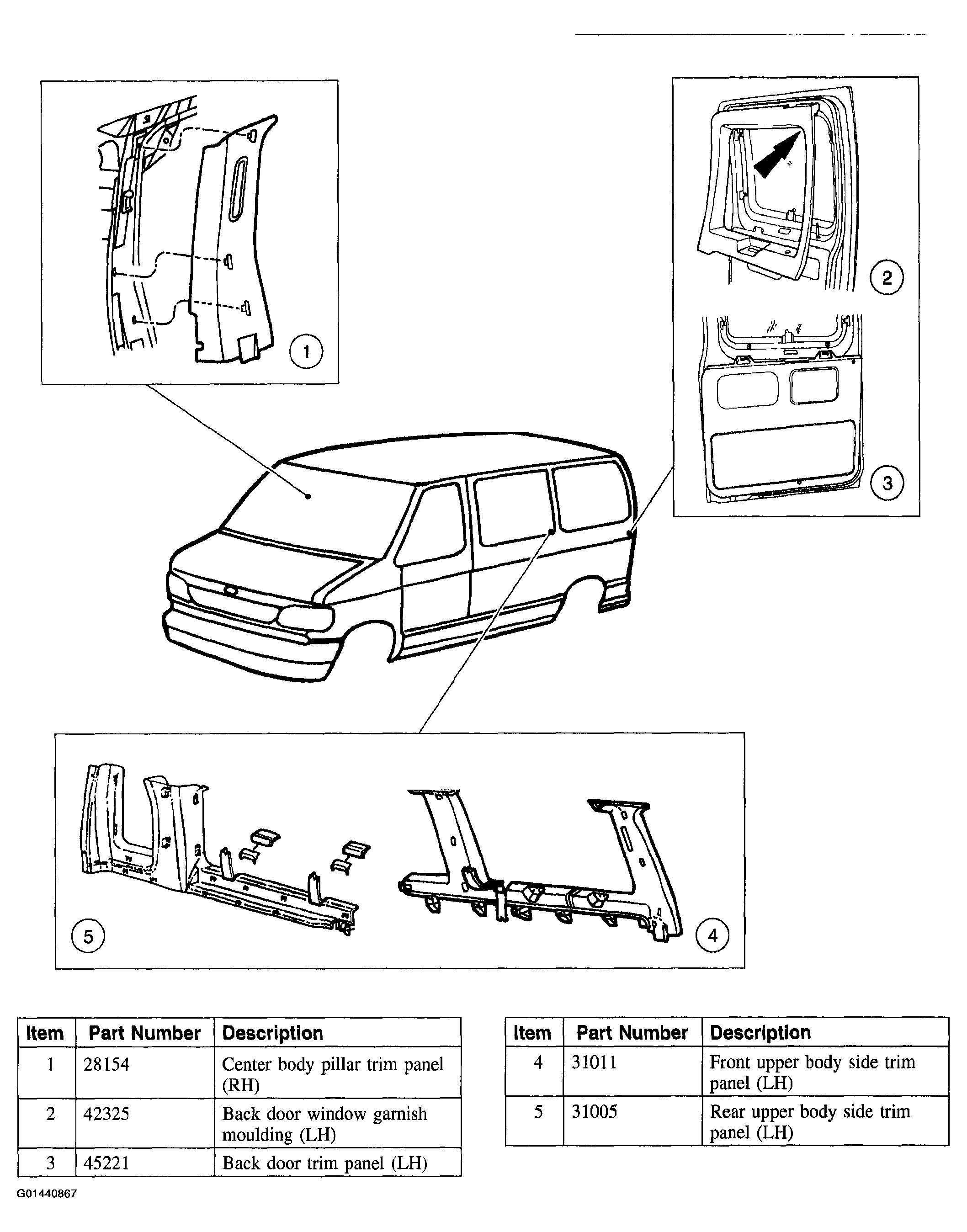

Fig 1: Identifying Interior Trim Component Locations - RH Center Pillar, LH Rear Door And LH Body Side
G01440867Courtesy of FORD MOTOR CO.

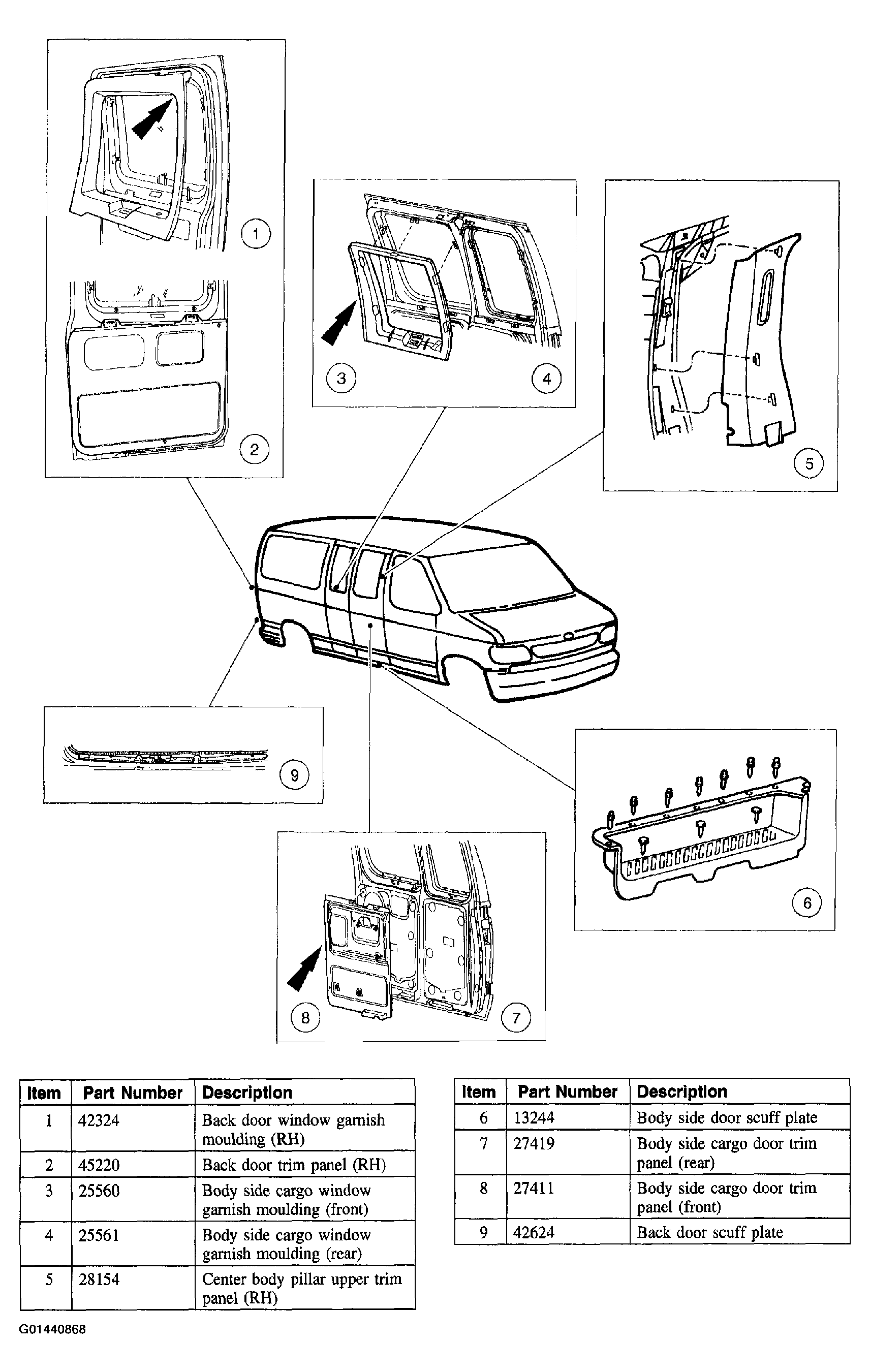

Fig 2: Identifying Interior Trim Component Locations - RH Side And RH Rear Door
G01440868Courtesy of FORD MOTOR CO.

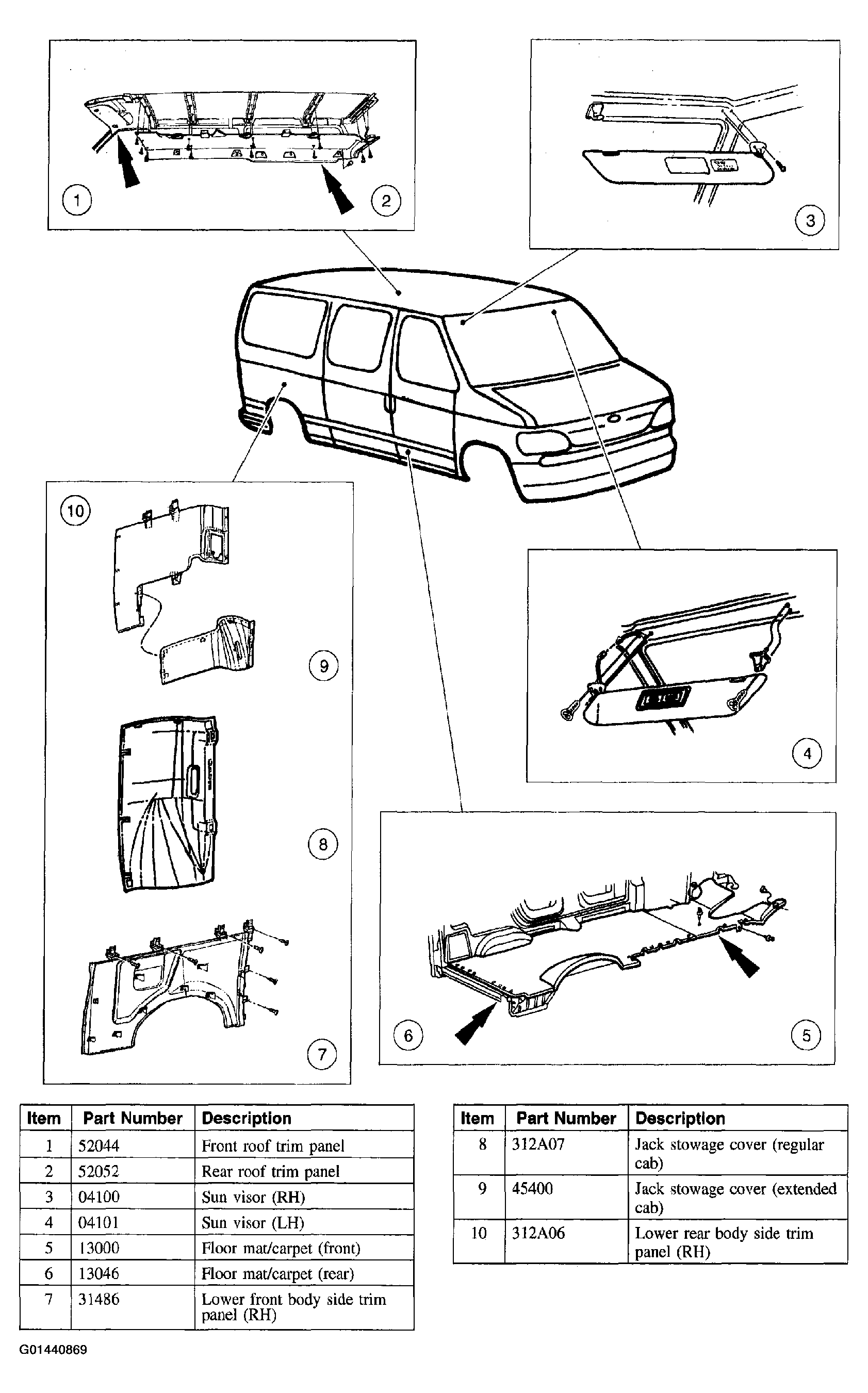

Fig 3: Identifying Interior Trim Component Locations - RH Side And Roof
G01440869Courtesy of FORD MOTOR CO.

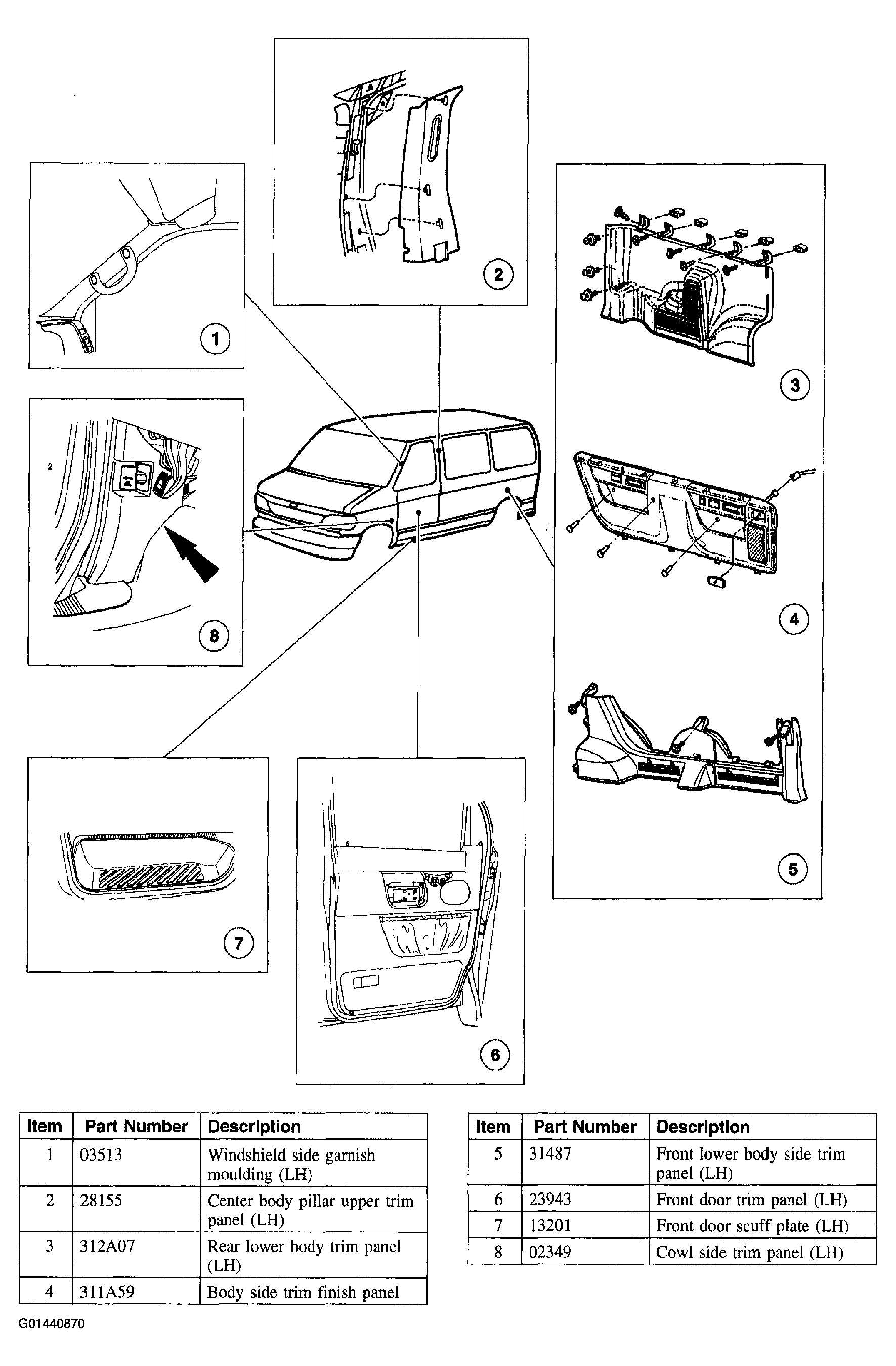

Fig 4: Identifying Interior Trim Component Locations - LH Side
G01440870Courtesy of FORD MOTOR CO.

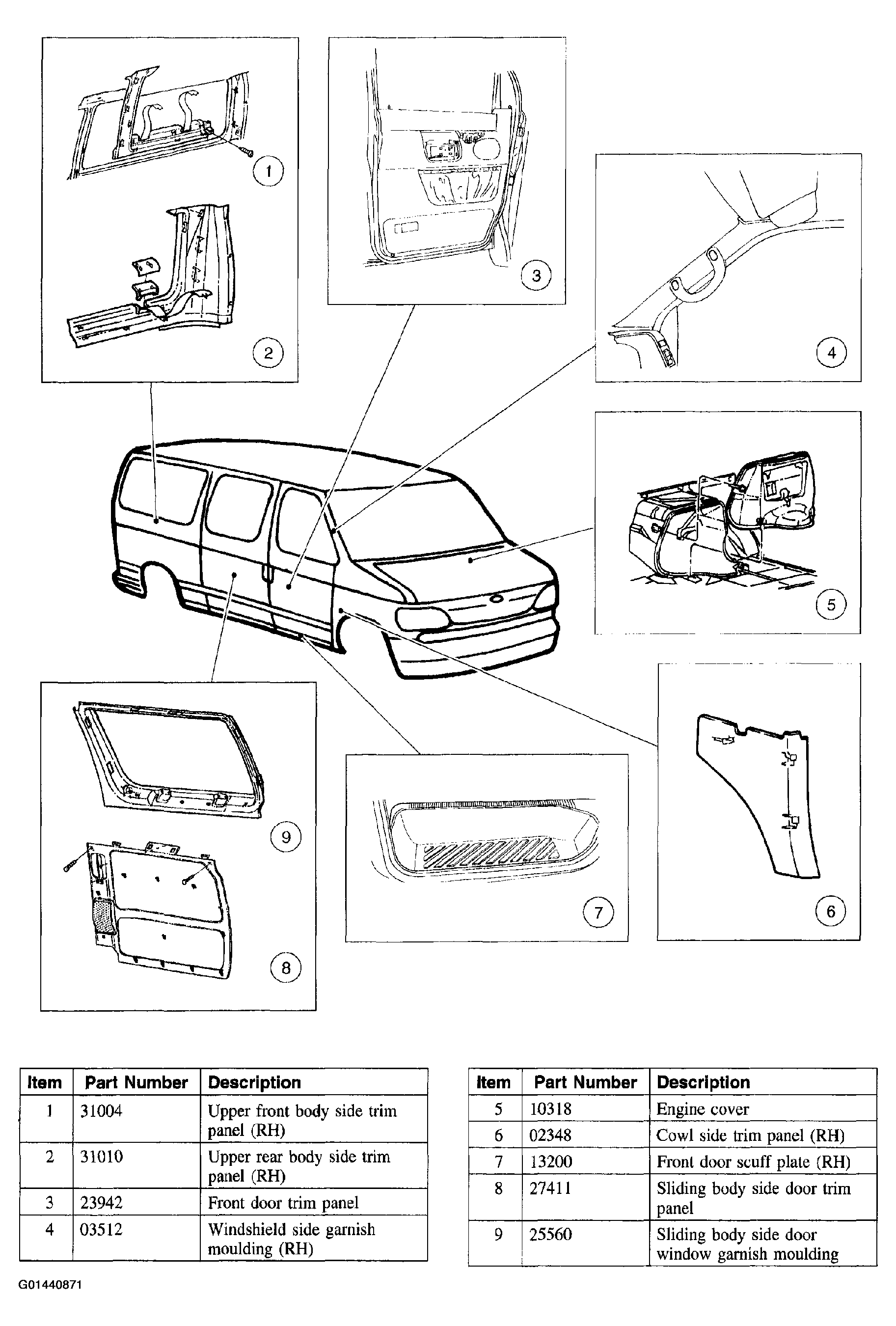

Fig 5: Identifying Interior Trim Component Locations - RH Side And Engine Cover
G01440871Courtesy of FORD MOTOR CO.
