Front Wheel Speed Sensor - E-150: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the front anti-lock brake sensor wire from the front brake hose.
    1. Disconnect the front anti-lock brake sensor electrical connector.
    2. Detach the front anti-lock brake sensor wire from the front brake hose.

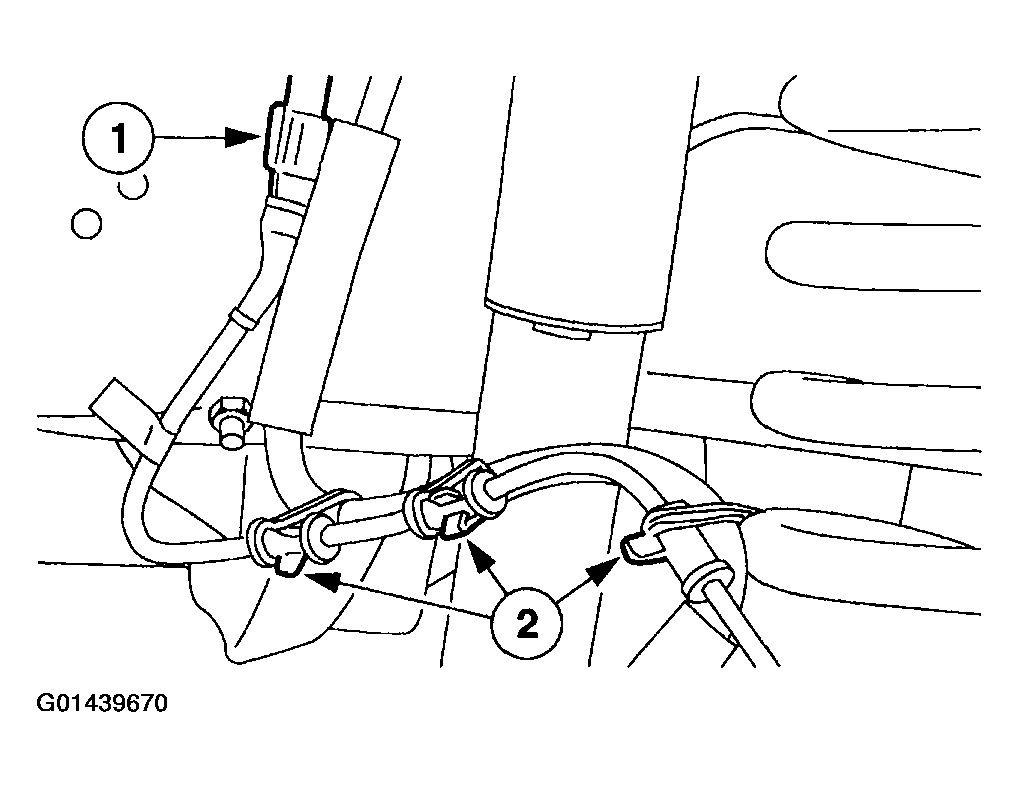

      Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
      G01439670Courtesy of FORD MOTOR CO.
  2. Remove the bolt.

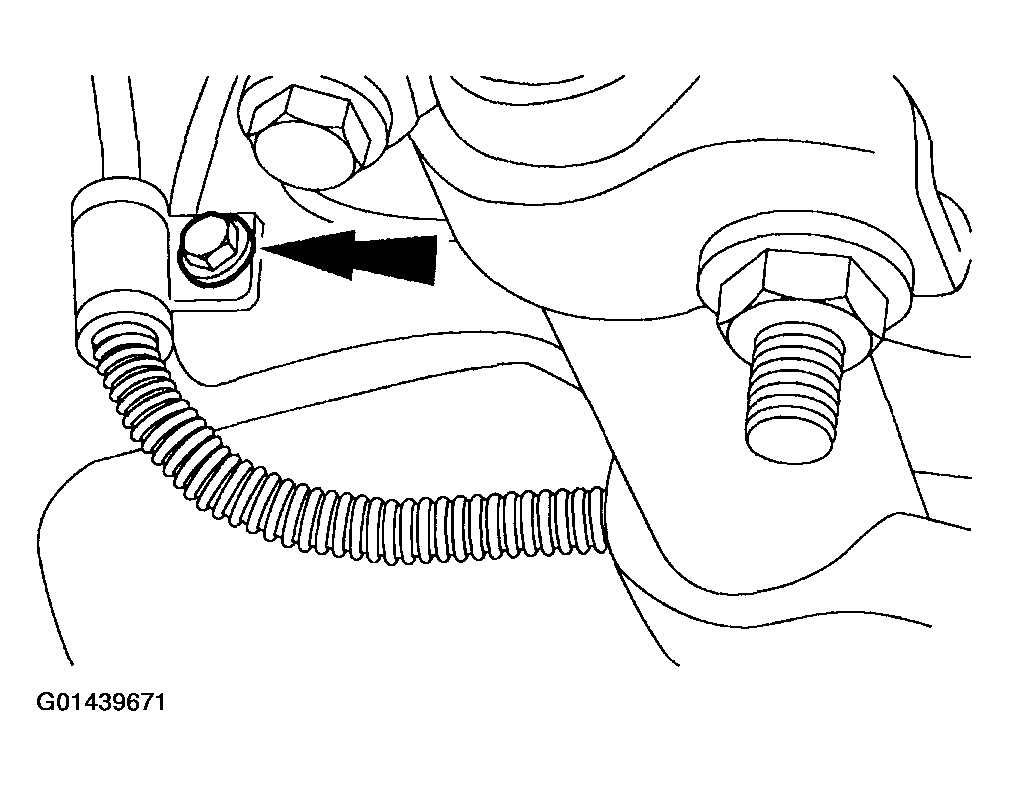

    Fig 2: Removing Bolt
    G01439671Courtesy of FORD MOTOR CO.
  3. Remove the (A) front anti-lock brake sensor bolt and the (B) front anti-lock brake sensor.
    Fig 3: Removing Front Anti-Lock Brake Sensor Bolt And Sensor
    G01439672Courtesy of FORD MOTOR CO.
