Water Pump Removal & Installation
WARNING: This page is about a different car, the 2002 Lincoln Navigator, 2002 Lincoln Blackwood, 2002 Ford Pickup, and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

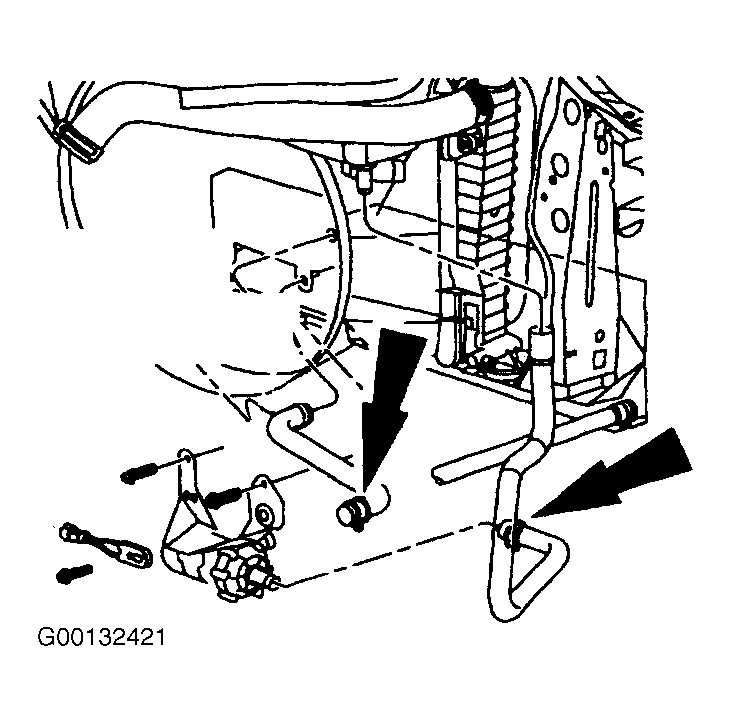

Drain the charge air cooling system coolant. Disconnect the electrical connector. Disconnect the resistor electrical connector. Disconnect the hoses, remove the bolts and the charge air water pump. See Fig 1. To install, reverse the removal procedure. The fill material on the dropping resistor must face away from the bracket.
