Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .
Disconnect the vacuum pump hose.

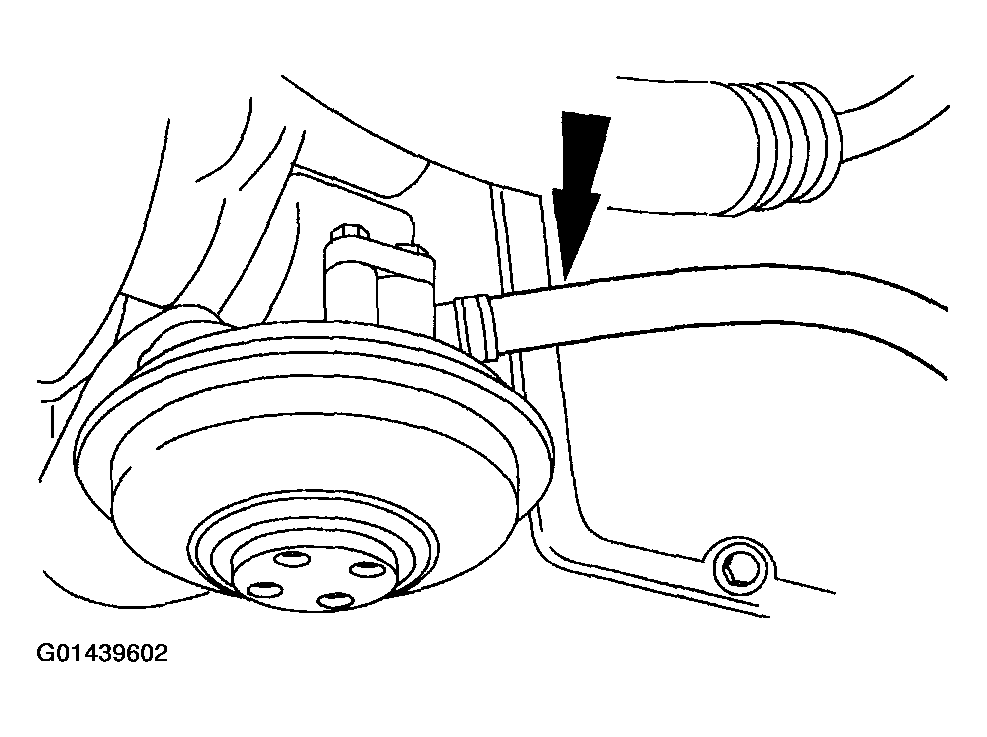

Fig 1: Disconnecting Vacuum Pump Hose
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the vacuum pump.

Fig 2: Removing Bolts (Vacuum Pump)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Fig 3: Installing Bolts (Vacuum Pump)
Courtesy of FORD MOTOR CO.
