Brake Booster - Vacuum: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Depress the brake pedal to release vacuum from the power brake booster.
Remove the coolant reservoir bolts and position reservoir aside.

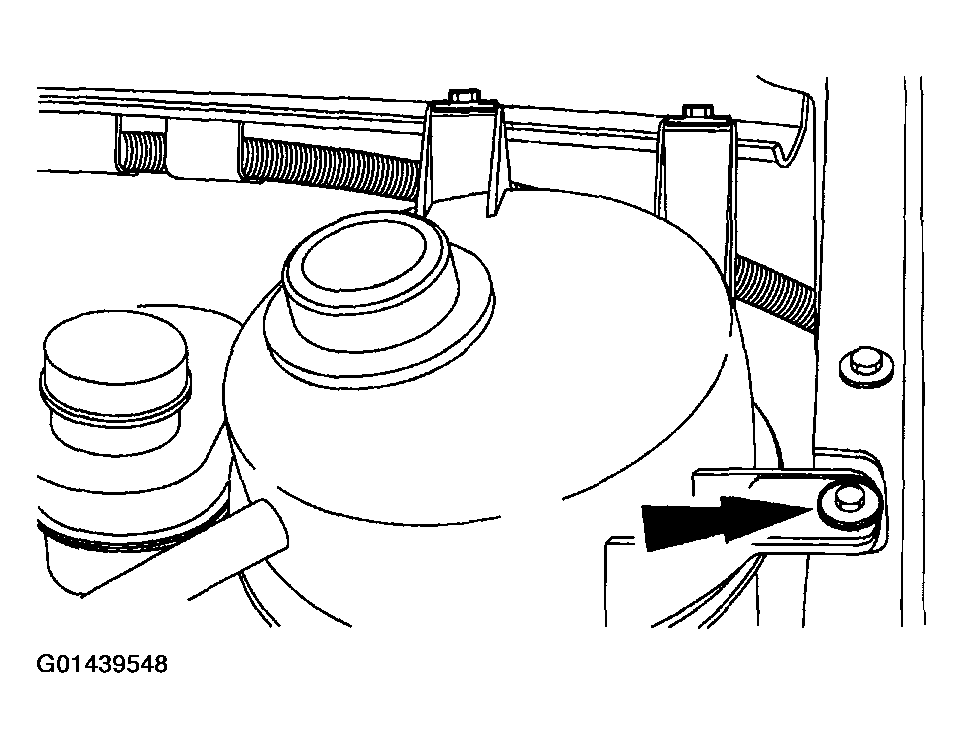

Fig 1: Removing Coolant Reservoir Bolts
Courtesy of FORD MOTOR CO.

NOTE: Discard the master cylinder retaining nuts. They are torque prevailing and cannot be reused.

Remove the brake master cylinder. For additional information, refer to MASTER CYLINDER .
Disconnect the power brake booster check valve.

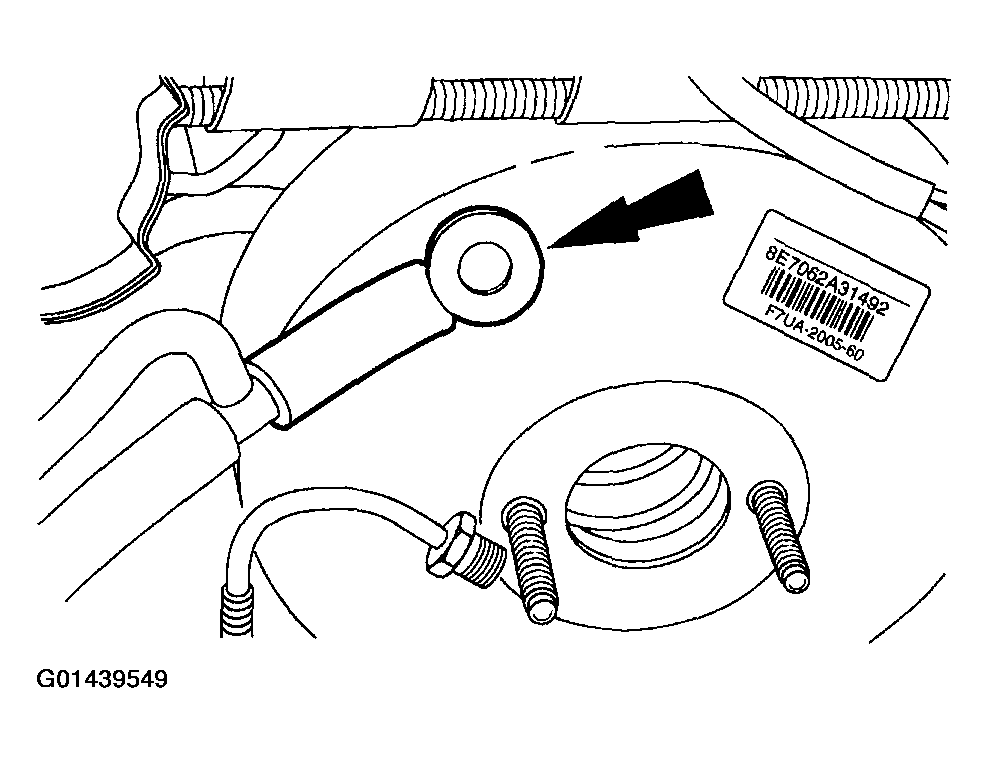

Fig 2: Disconnecting Power Brake Booster Check Valve
Courtesy of FORD MOTOR CO.
Remove the stoplight switch self-locking pin.

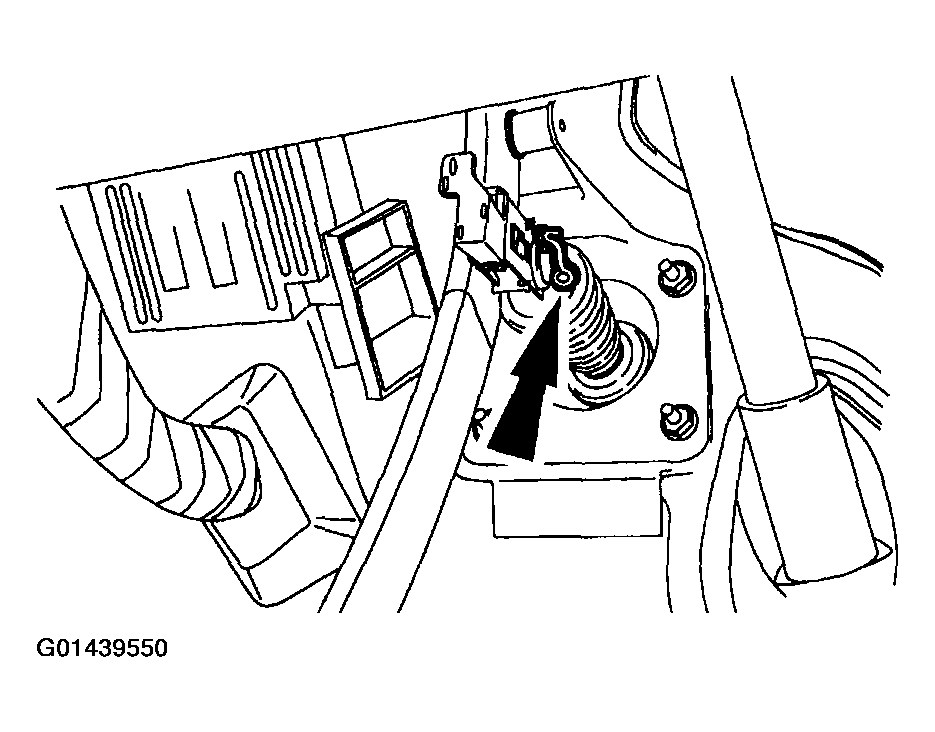

Fig 3: Removing Stoplight Switch Self-Locking Pin
Courtesy of FORD MOTOR CO.
Slide the stoplight switch and booster push rod and bushing off the brake pedal pin.

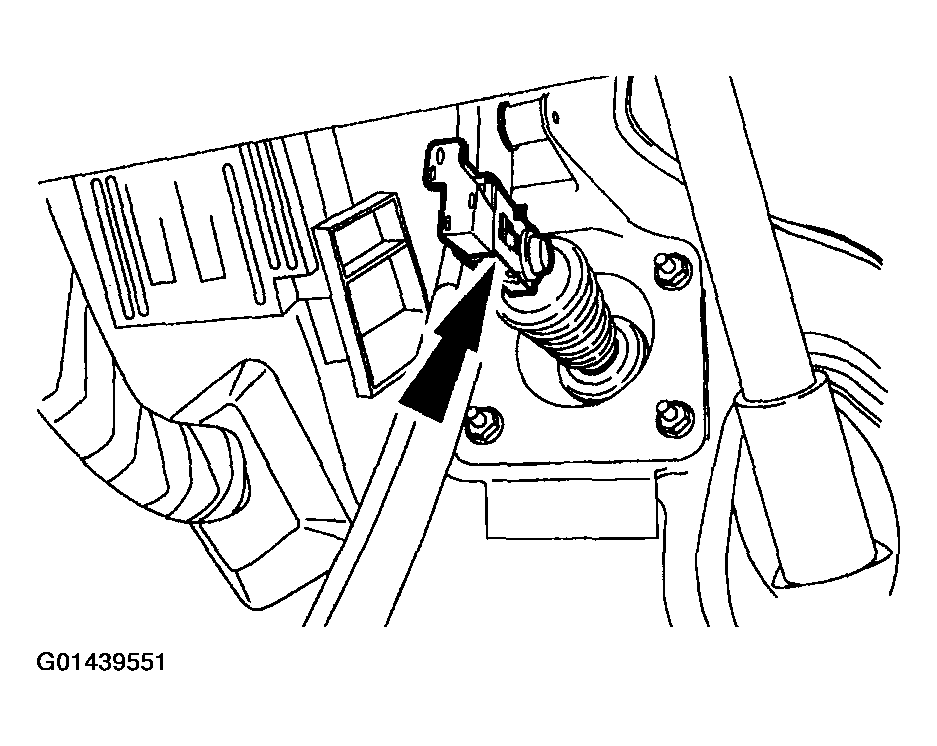

Fig 4: Sliding Stoplight Switch And Booster Push Rod
Courtesy of FORD MOTOR CO.
Remove the brake booster nuts.

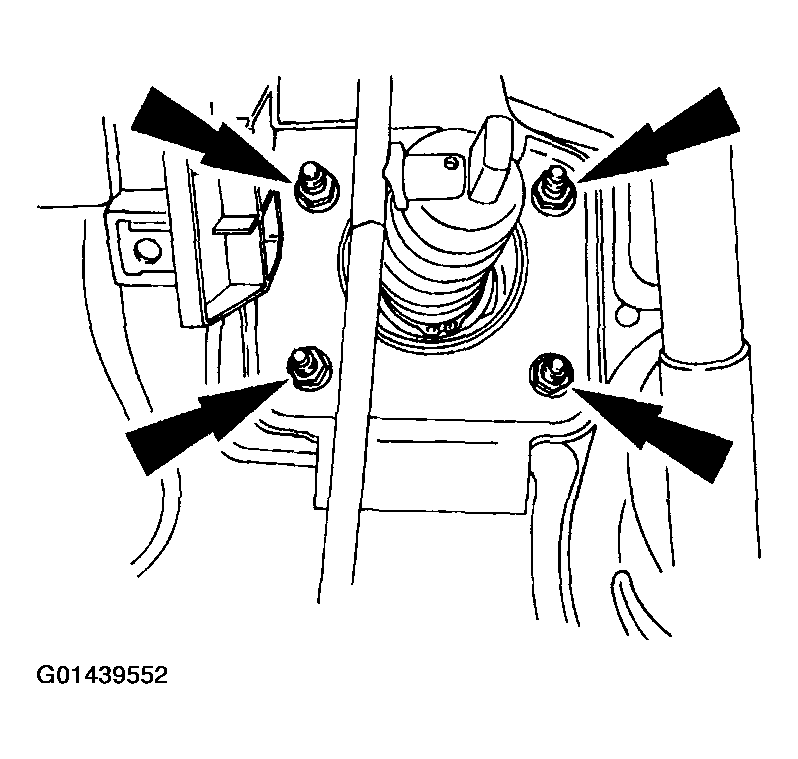

Fig 5: Removing Brake Booster Nuts
Courtesy of FORD MOTOR CO.
Remove the power brake booster.

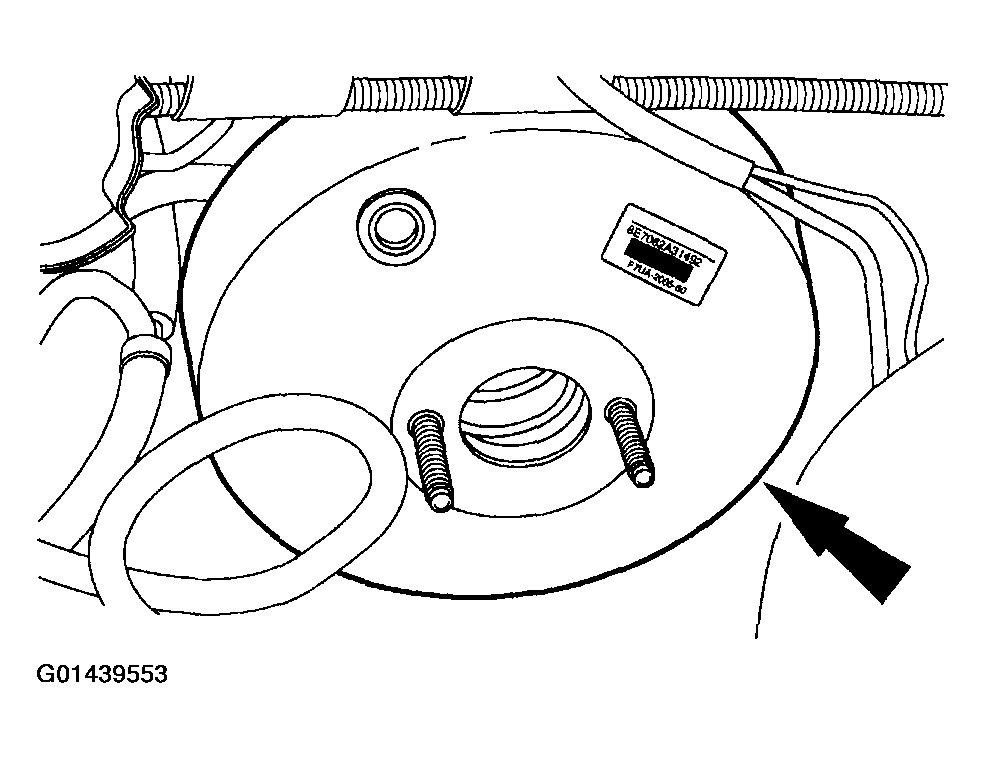

Fig 6: Removing Power Brake Booster
Courtesy of FORD MOTOR CO.
