Brake Booster - Vacuum: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Do not reuse the master cylinder retaining nuts.

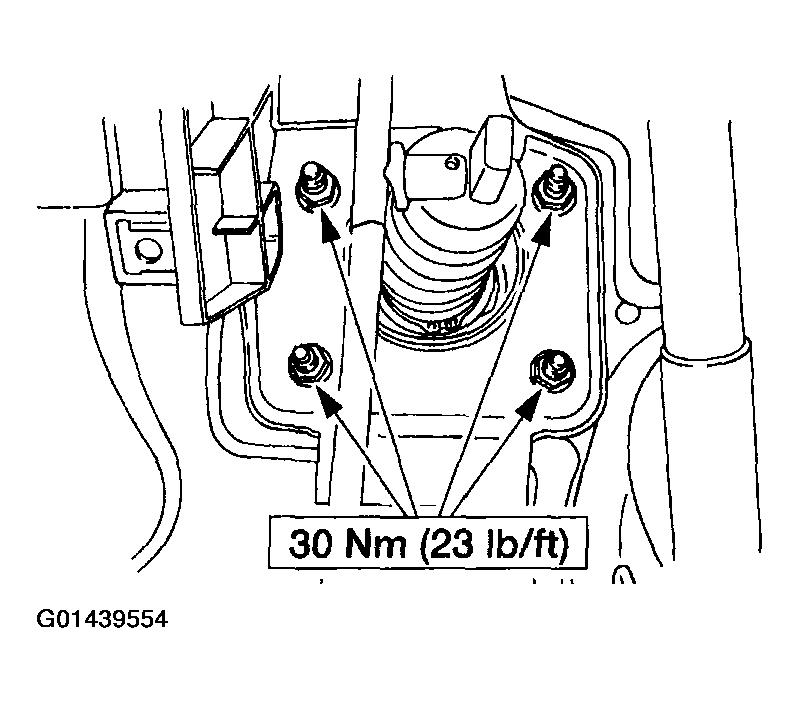

    Fig 1: Installing Brake Booster Nuts
    G01439554Courtesy of FORD MOTOR CO.

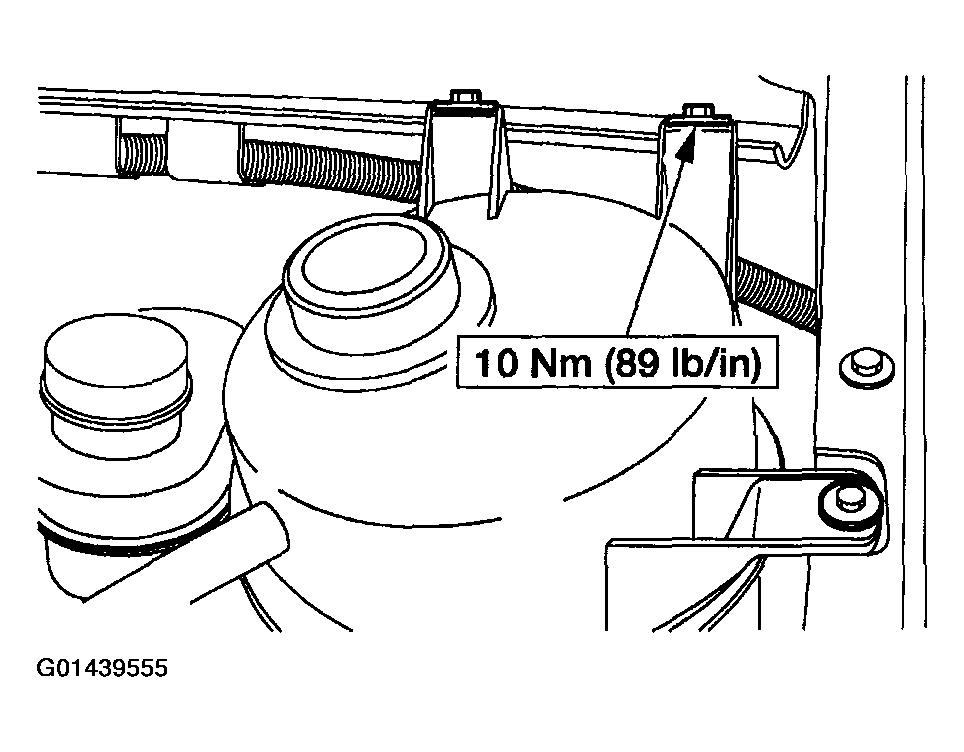

    Fig 2: Installing Coolant Reservoir Bolts
    G01439555Courtesy of FORD MOTOR CO.
  1. To install, follow the removal procedure in reverse order.
