Brake Booster - Hydro-Boost, E150 - E450: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Follow the removal procedure in reverse order.

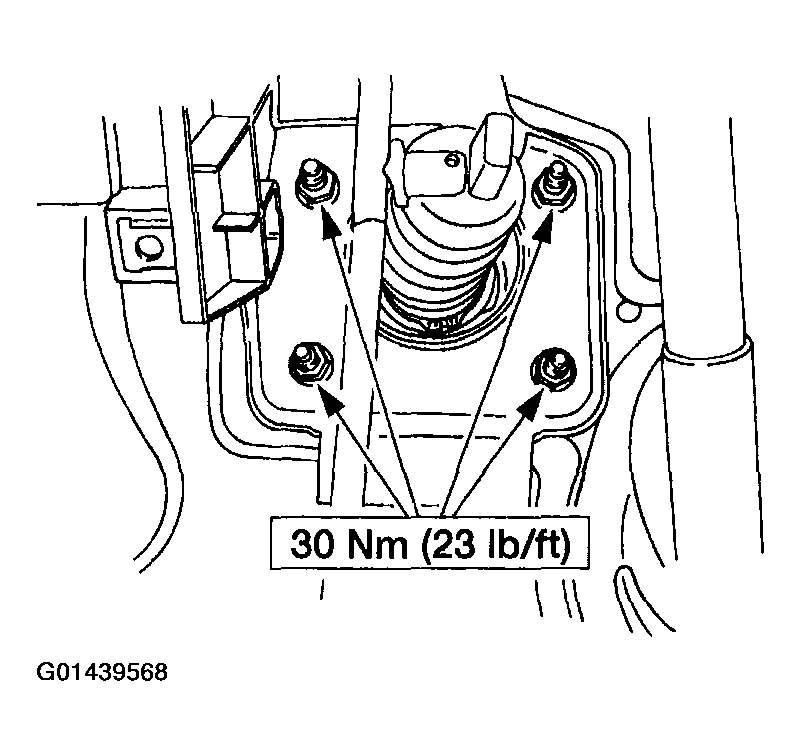

Fig 1: Installing Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.

Fig 2: Installing Nuts And Position Brake Master Cylinder Aside
Courtesy of FORD MOTOR CO.

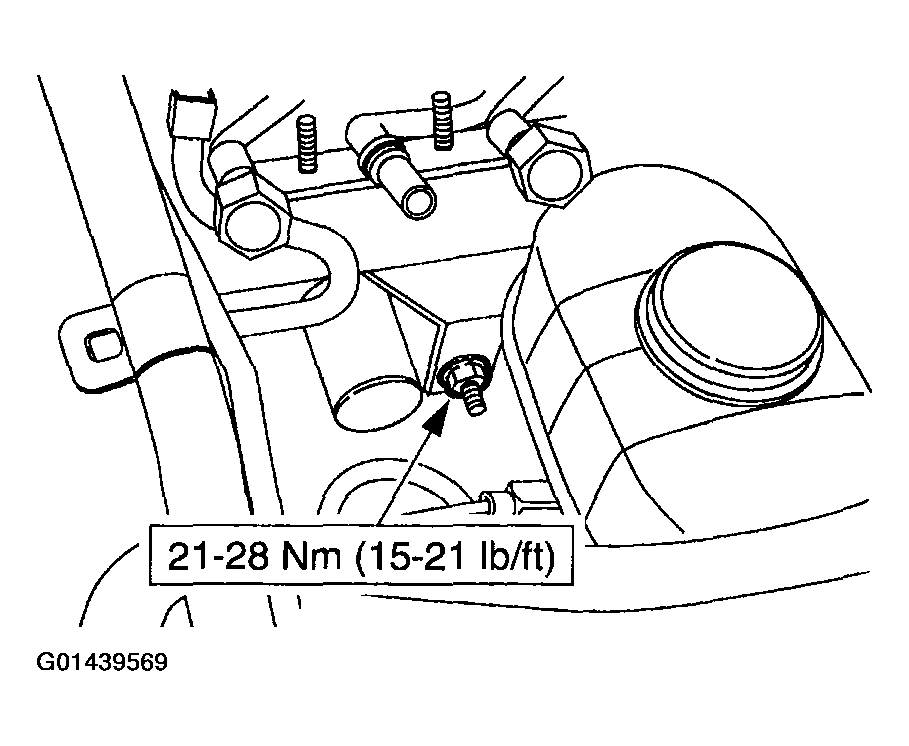

Fig 3: Installing Power Distribution Box Bracket Bolts (1 of 2)
Courtesy of FORD MOTOR CO.

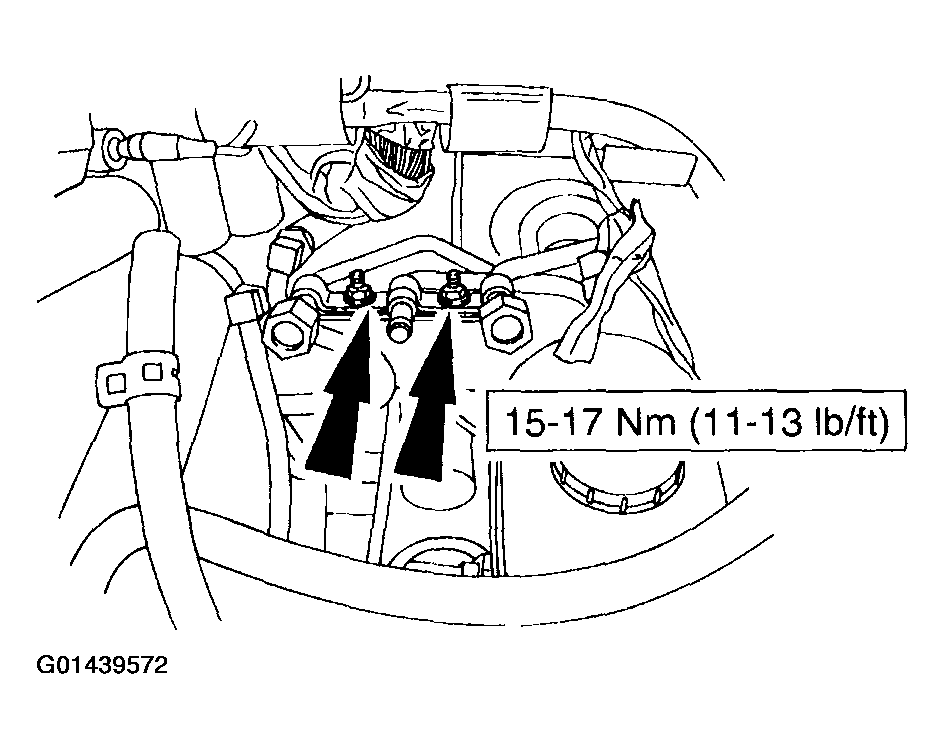

Fig 4: Installing Power Distribution Box Bracket Bolts (2 of 2)
Courtesy of FORD MOTOR CO.

Fig 5: Installing Nuts And Metal Line Retainer
Courtesy of FORD MOTOR CO.

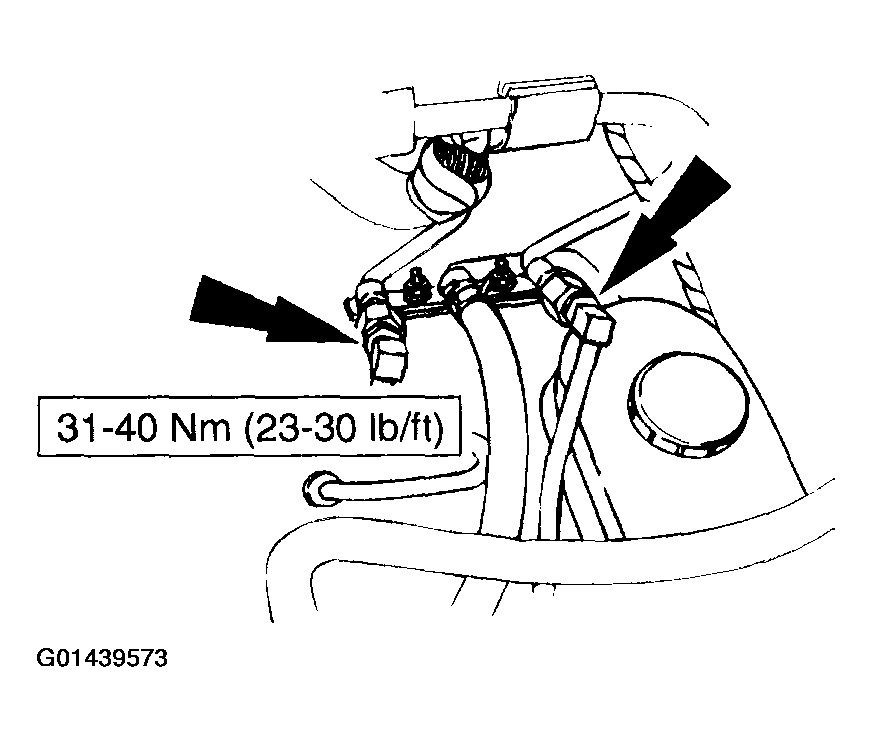

Fig 6: Connecting Power Steering Pressure Hoses
Courtesy of FORD MOTOR CO.
