Removal And Installation: Shoes: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel hub assembly. For additional information, refer to WHEEL HUBS AND BEARINGS - FULL FLOATING AXLE .
Remove the brake shoe retracting spring.

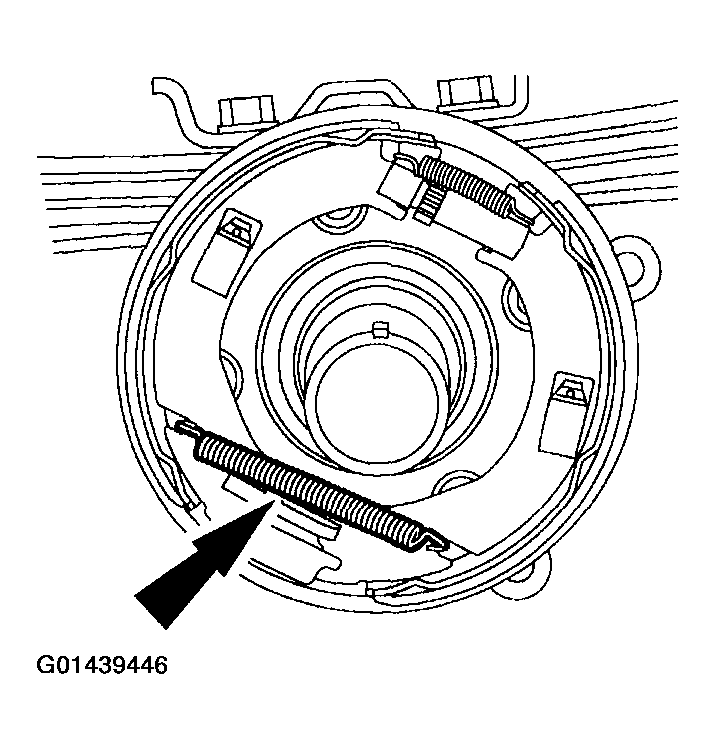

Fig 1: Removing Brake Shoe Retracting Spring
Courtesy of FORD MOTOR CO.
Remove the brake shoe hold-down springs.

Fig 2: Removing Brake Shoe Hold-Down Springs
Courtesy of FORD MOTOR CO.
Remove the parking brake shoes.
1. Pull the primary shoe forward and out.
2. Pull the secondary shoe rearward and remove the parking brake shoes and set on bench.

  Fig 3: Removing Parking Brake Shoes
  Courtesy of FORD MOTOR CO.
Remove the brake shoe inner retracting spring.

Fig 4: Removing Brake Shoe Inner Retracting Spring
Courtesy of FORD MOTOR CO.
Remove the brake adjuster screw.

Fig 5: Removing Brake Adjuster Screw
Courtesy of FORD MOTOR CO.
Remove the brake shoe adjusting screw spring.

Fig 6: Removing Brake Shoe Adjusting Screw Spring
Courtesy of FORD MOTOR CO.
