Removal And Installation: Shoes: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake shoe adjusting screw spring.
    Fig 1: Installing Brake Shoe Adjusting Screw Spring
    G01439452Courtesy of FORD MOTOR CO.
  2. Install the brake adjuster screw.
    Fig 2: Installing Brake Adjuster Screw
    G01439453Courtesy of FORD MOTOR CO.
  3. Install the brake shoe inner retracting spring.

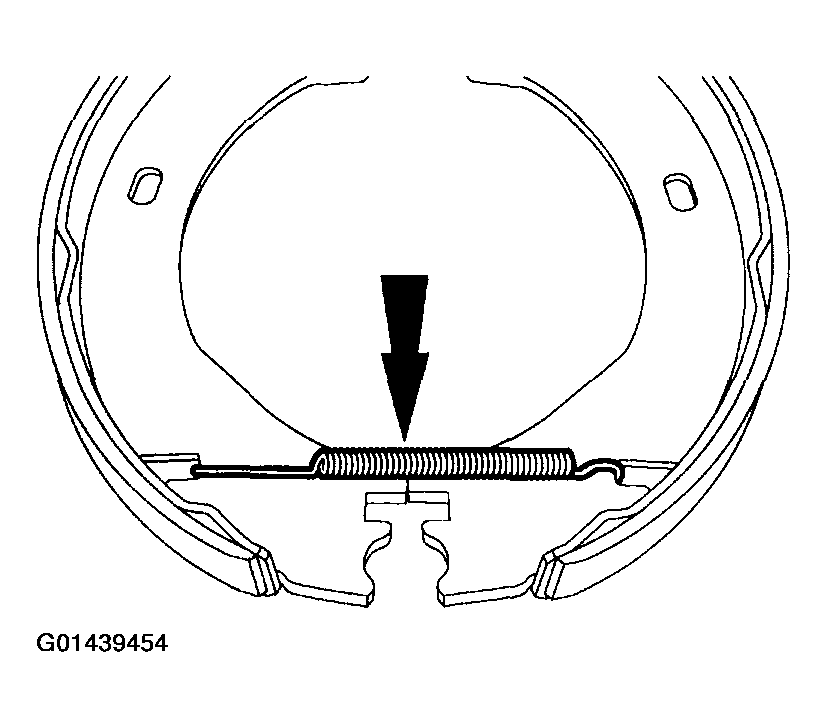

    Fig 3: Installing Brake Shoe Inner Retracting Spring
    G01439454Courtesy of FORD MOTOR CO.
    4. NOTE: Lubricate the brake shoe contact point before installation of parking brake shoes using silicone brake caliper grease.
  4. Install the parking brake shoes.
    1. Set the primary shoe in place.
    2. Pull the secondary shoe rearward and install the parking brake shoe.

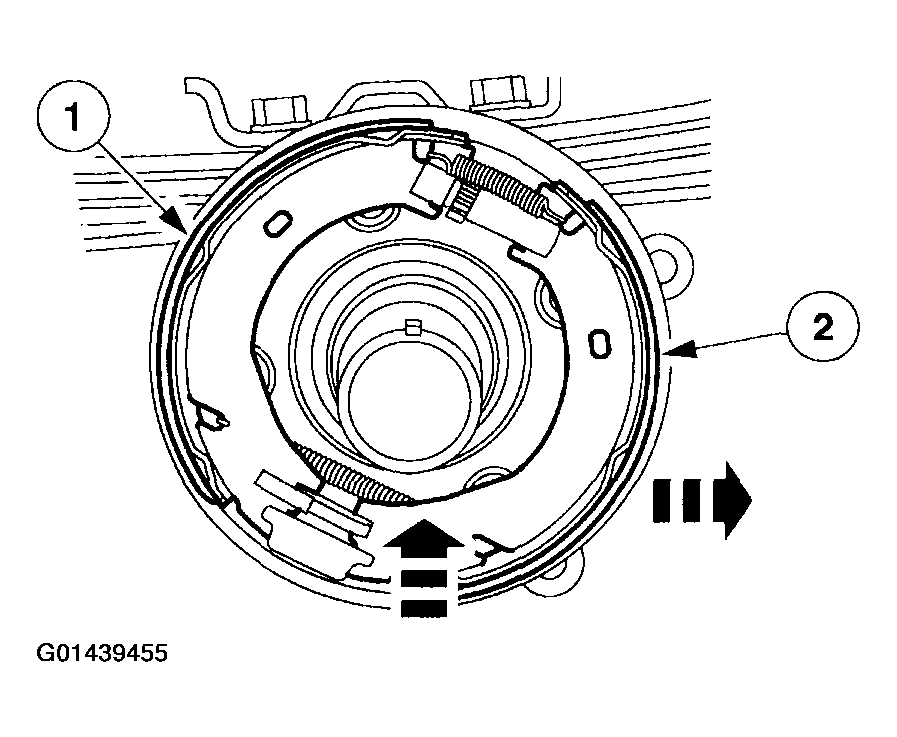

      Fig 4: Installing Parking Brake Shoe
      G01439455Courtesy of FORD MOTOR CO.
  5. Install the brake shoe hold-down springs.

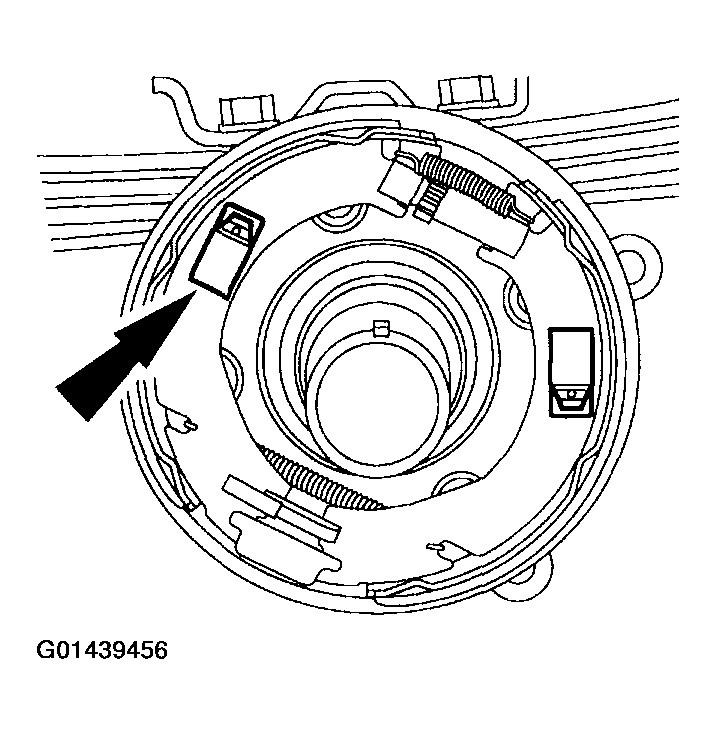

    Fig 5: Installing Brake Shoe Hold-Down Springs
    G01439456Courtesy of FORD MOTOR CO.
  6. Install the brake shoe retracting spring.

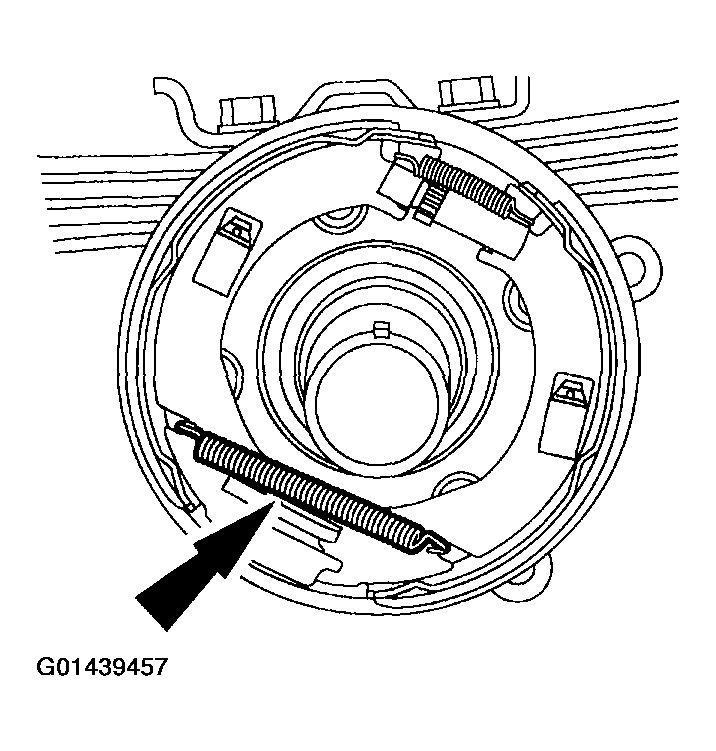

    Fig 6: Installing Brake Shoe Retracting Spring
    G01439457Courtesy of FORD MOTOR CO.
  7. Install the wheel hub assembly. For additional information, refer to WHEEL HUBS AND BEARINGS - FULL FLOATING AXLE .
  8. Use Brake Adjusting Gauge to measure the inside diameter of the drum portion of the rear brake disc.
    Fig 7: Measuring Inside Diameter Of Rear Brake Disc
    G01439458Courtesy of FORD MOTOR CO.
  9. Use Brake Adjusting Gauge to set the rear brake shoe and lining diameter to 0.5 mm (0.02 in) less than the inside diameter of the drum portion of the brake disc.
    Fig 8: Measuring Rear Brake Shoe And Lining Diameter
    G01439459Courtesy of FORD MOTOR CO.
  10. Install the brake disc. For additional information, refer to DISC & DRUM .
    11. NOTE: Only apply parking brake one time.
  11. Burnish the parking brake shoe and linings.
    1. Accelerate the vehicle to 40 km/h (25 mph).
    2. Shift the transmission to NEUTRAL.
    3. Slowly apply the parking brake control to approximately one-half to three-quarters of its travel.
    4. Allow the vehicle to come to a complete stop.
    5. Release the parking brake.
  12. Check the operation of the parking brake.
