Parking Brake Control - E-550

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position on a hoist.
Disconnect the front parking brake cable and conduit from the parking brake lever. Remove the locking pin from the clevis pin and remove the clevis pin.

Fig 1: Removing Locking Pin From Clevis Pin
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the parking brake control retaining nuts.

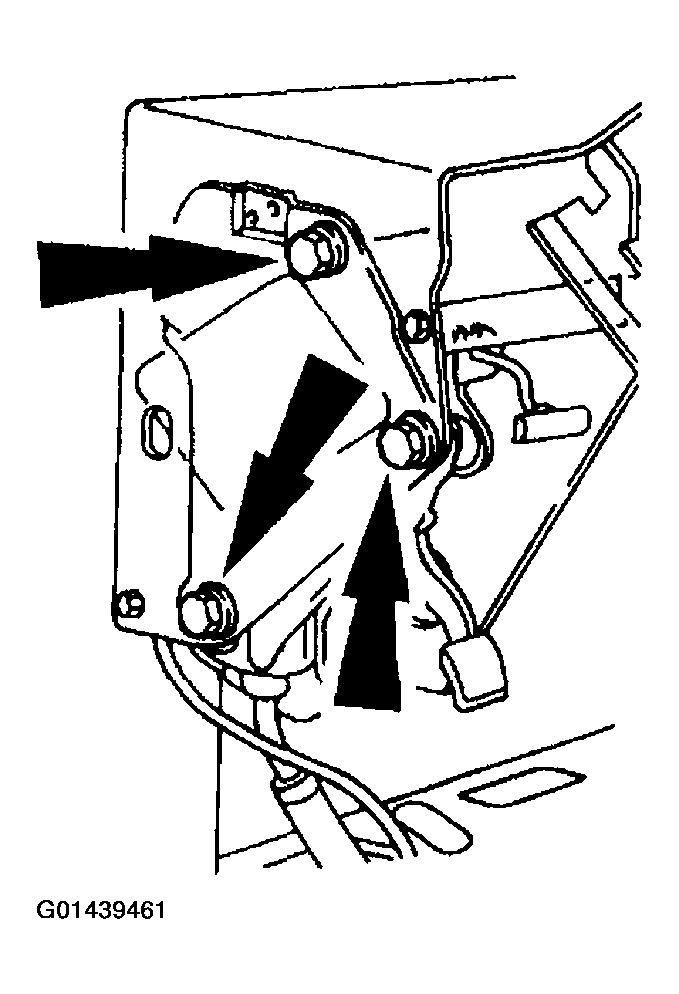

Fig 2: Removing Parking Brake Control Retaining Nuts
Courtesy of FORD MOTOR CO.
Lower the parking brake control.
Disconnect the front parking brake cable and conduit from the parking brake control.

Fig 3: Disconnecting Front Parking Brake Cable And Conduit (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig 4: Disconnecting Front Parking Brake Cable And Conduit (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Fig 5: Installing Parking Brake Control Retaining Nuts
Courtesy of FORD MOTOR CO.
