Removal And Installation: Control: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

  1. Follow the removal procedure in reverse order.

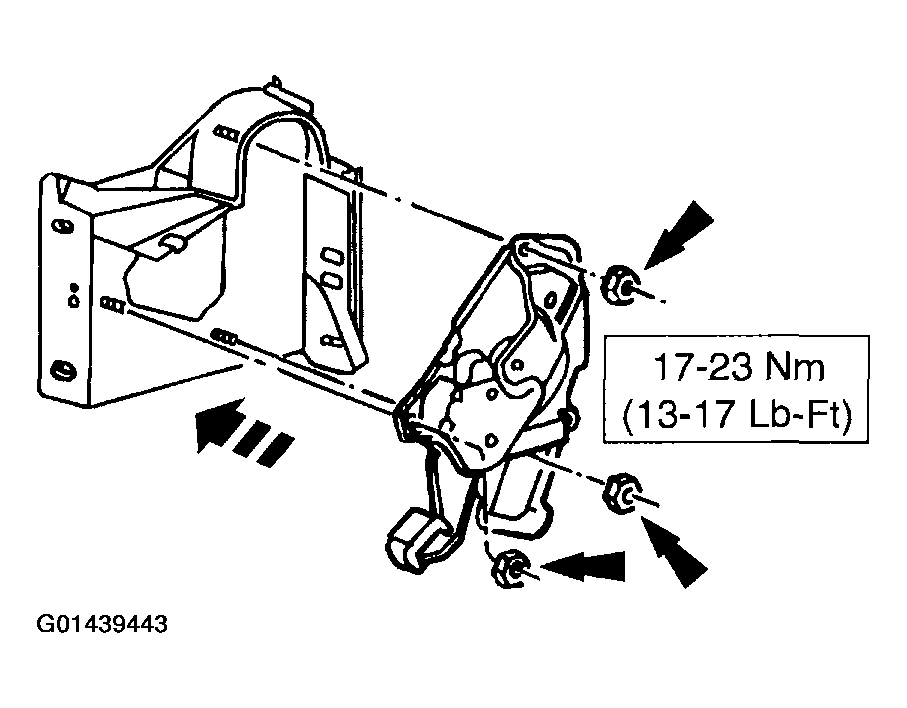

    Fig 1: Installing Parking Brake Control Nuts
    G01439443Courtesy of FORD MOTOR CO.

    2. E-450 & E-550

  2. Adjust the cable tension. For additional information, refer to PARKING BRAKE CABLE ADJUSTMENT - E-450 & E-550  .

    3. ALL VEHICLES

  3. Test parking brake function.
