Motorhome Chassis
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

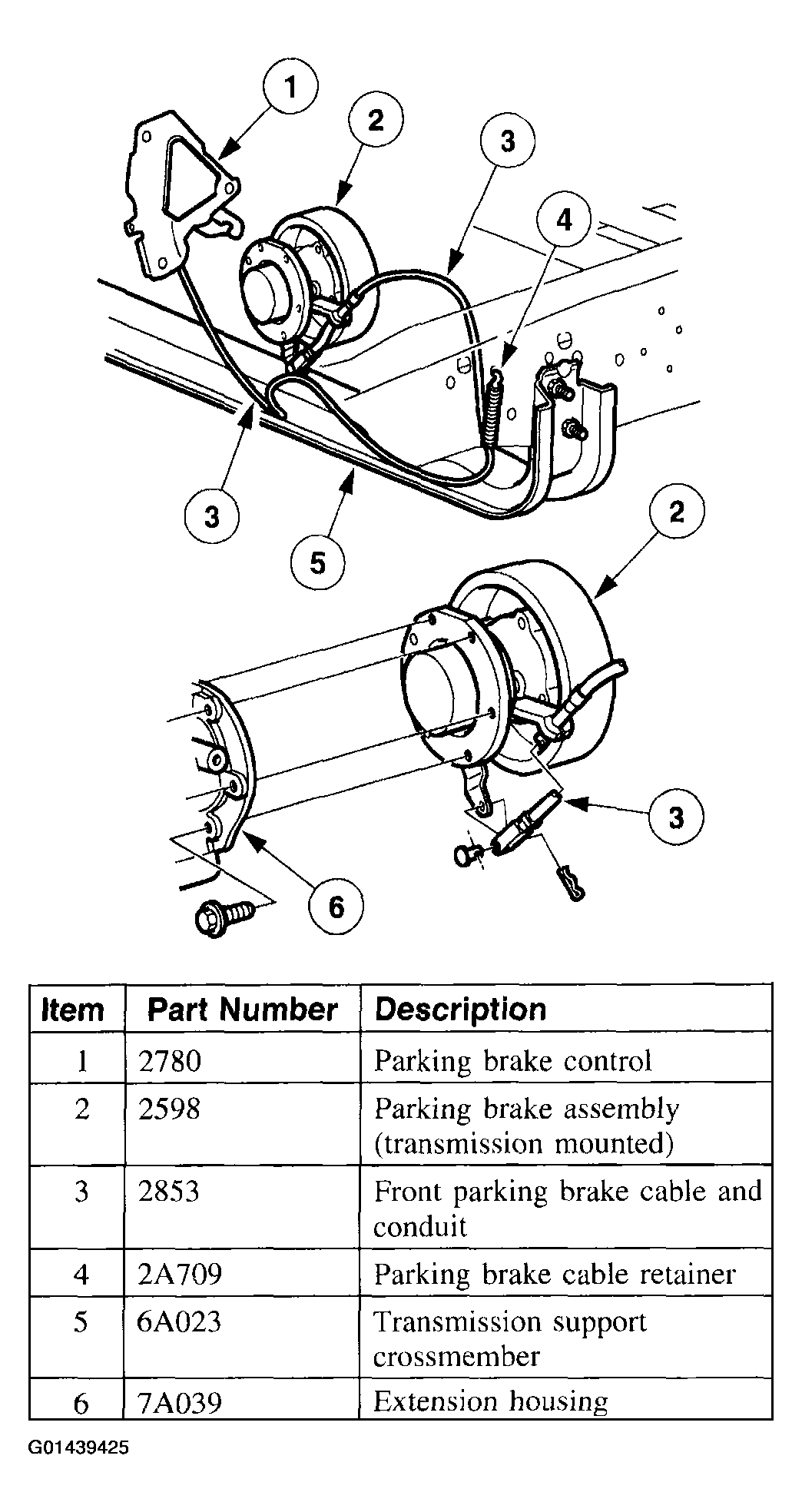

The parking brake is mounted on the transmission extension housing.
The parking brake system is actuated when the parking brake control is depressed. The parking brake control applies tension to the front parking brake cable and conduit, activating the parking brake assembly.
