Battery Cables-Primary, Gasoline: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Failure to accurately follow the battery disconnect procedures outlined in this section will result in vehicle or component damage.
  1. Disable the vehicle electrical supply; refer to DUAL BATTERY DISCONNECT - GASOLINE  in General Procedures.
  2. Disconnect the primary battery positive cable, and remove the hold-down wedge and the primary battery (10655).
  3. Remove the four bolts retaining the battery tray and remove the battery tray.
  4. Remove the primary battery negative cable ground nut and disengage the eyelet terminal.

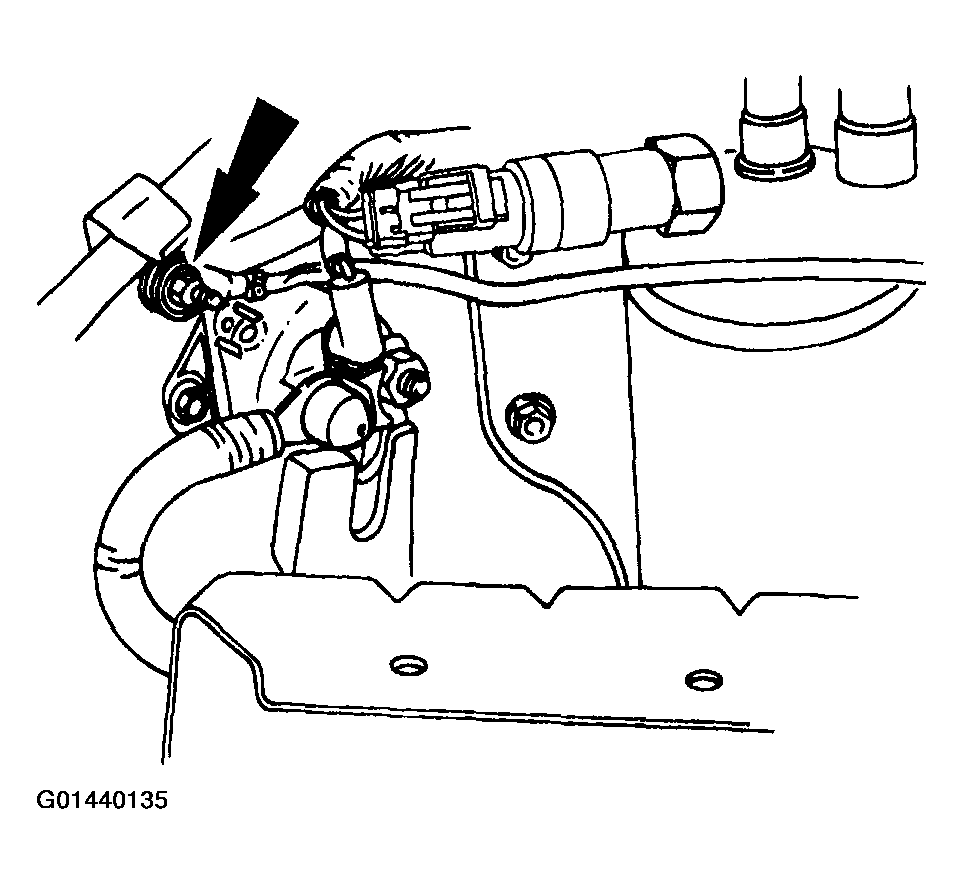

    Fig 1: Removing Primary Battery Negative Cable Ground Nut And Disengaging Eyelet Terminal
    G01440135Courtesy of FORD MOTOR CO.
  5. Remove the starter motor relay B+ terminal rubber cap.
  6. Remove the starter motor relay eyelet terminals.
    1. Remove the B+ terminal nut and disengage the wire.
    2. Remove the enable terminal nut and disengage the wire.

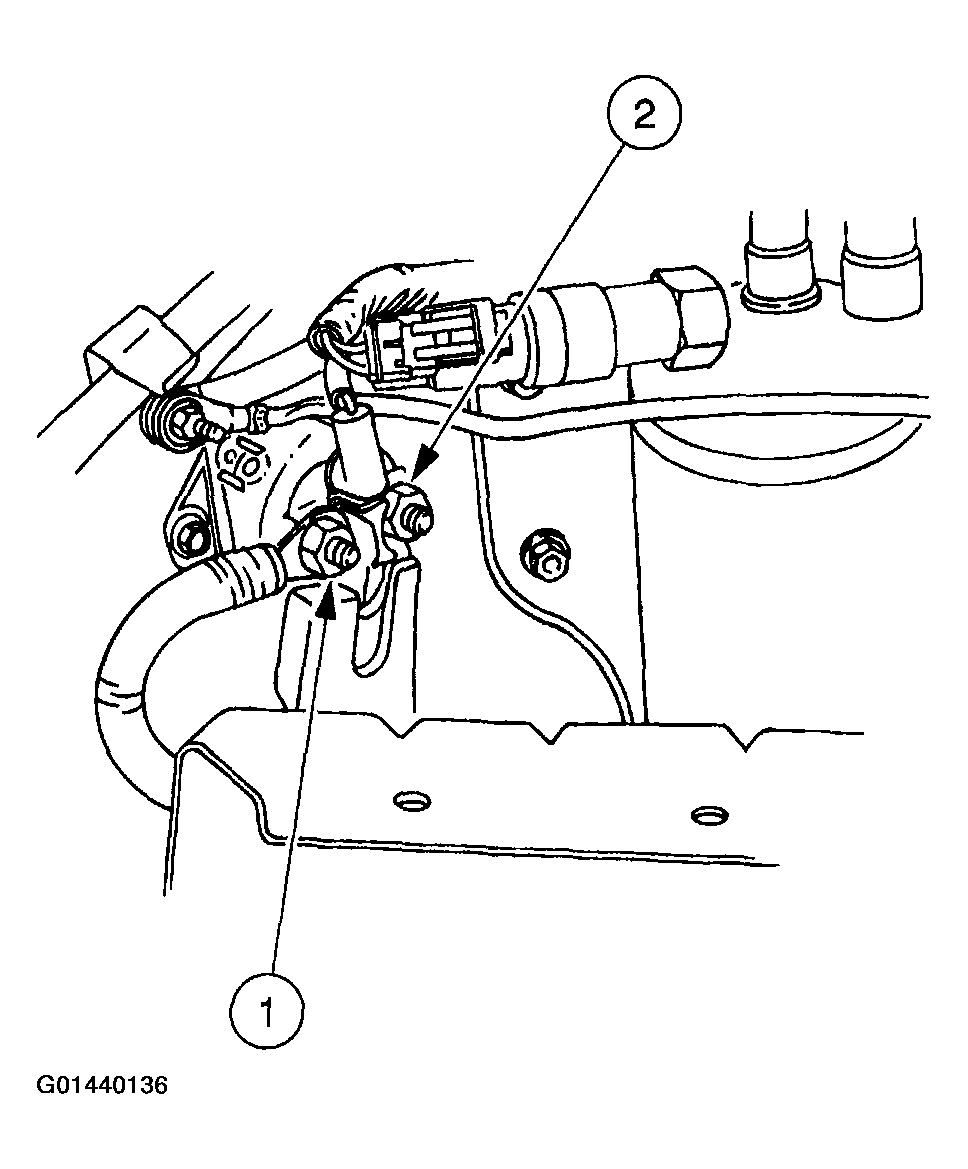

    Fig 2: Removing Starter Motor Relay Eyelet Terminals
    G01440136Courtesy of FORD MOTOR CO.
  7. Remove the three harness locators in between the primary battery tray mounts.
  8. Remove the starter motor/solenoid eyelet terminals.
    1. Remove the B+ terminal nut and disengage the wire.
    2. Remove the enable nut and disengage the wire.
    3. Remove the ground nut and disengage the wire.

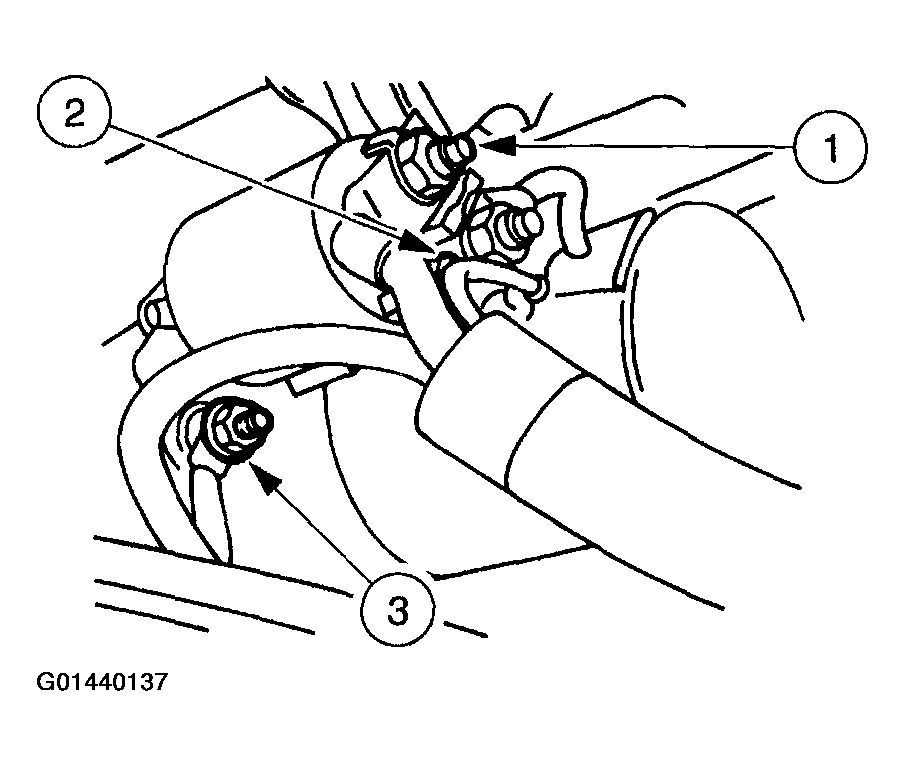

    Fig 3: Removing Starter Motor/Solenoid Eyelet Terminals
    G01440137Courtesy of FORD MOTOR CO.
  9. Disengage the three engine splash shield plastic clips and remove the engine splash shield.
  10. Remove the transmission cooler line/primary battery cable bracket nut.

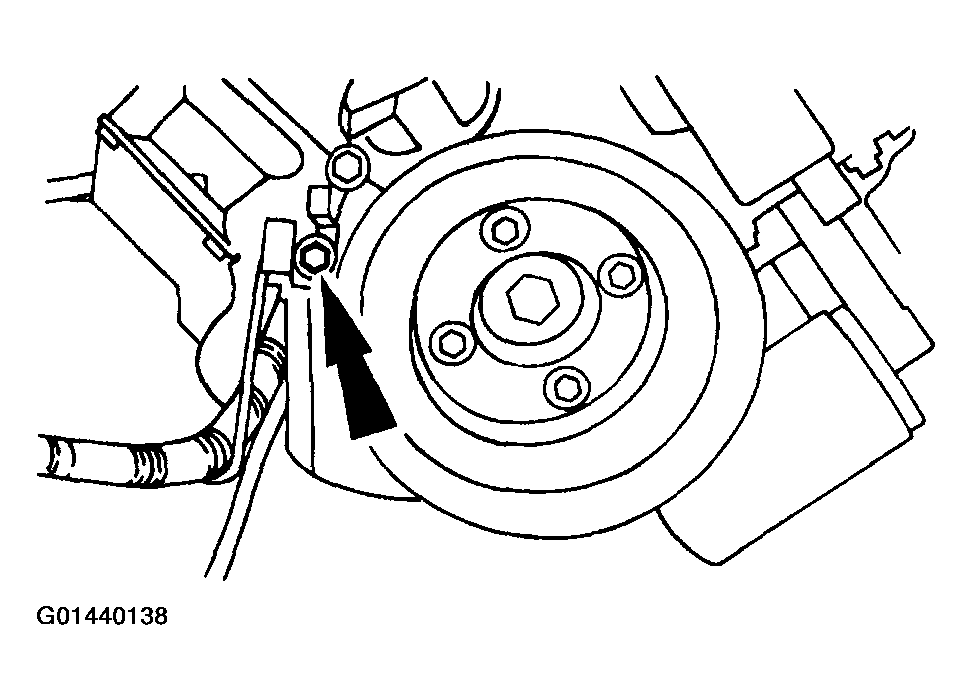

    Fig 4: Removing Transmission Cooler Line/Primary Battery Cable Bracket Nut
    G01440138Courtesy of FORD MOTOR CO.
  11. Pull the primary battery cable assembly through the engine support crossmember under the vehicle.
  12. Disengage the harness locator, located below the battery tray mounts.

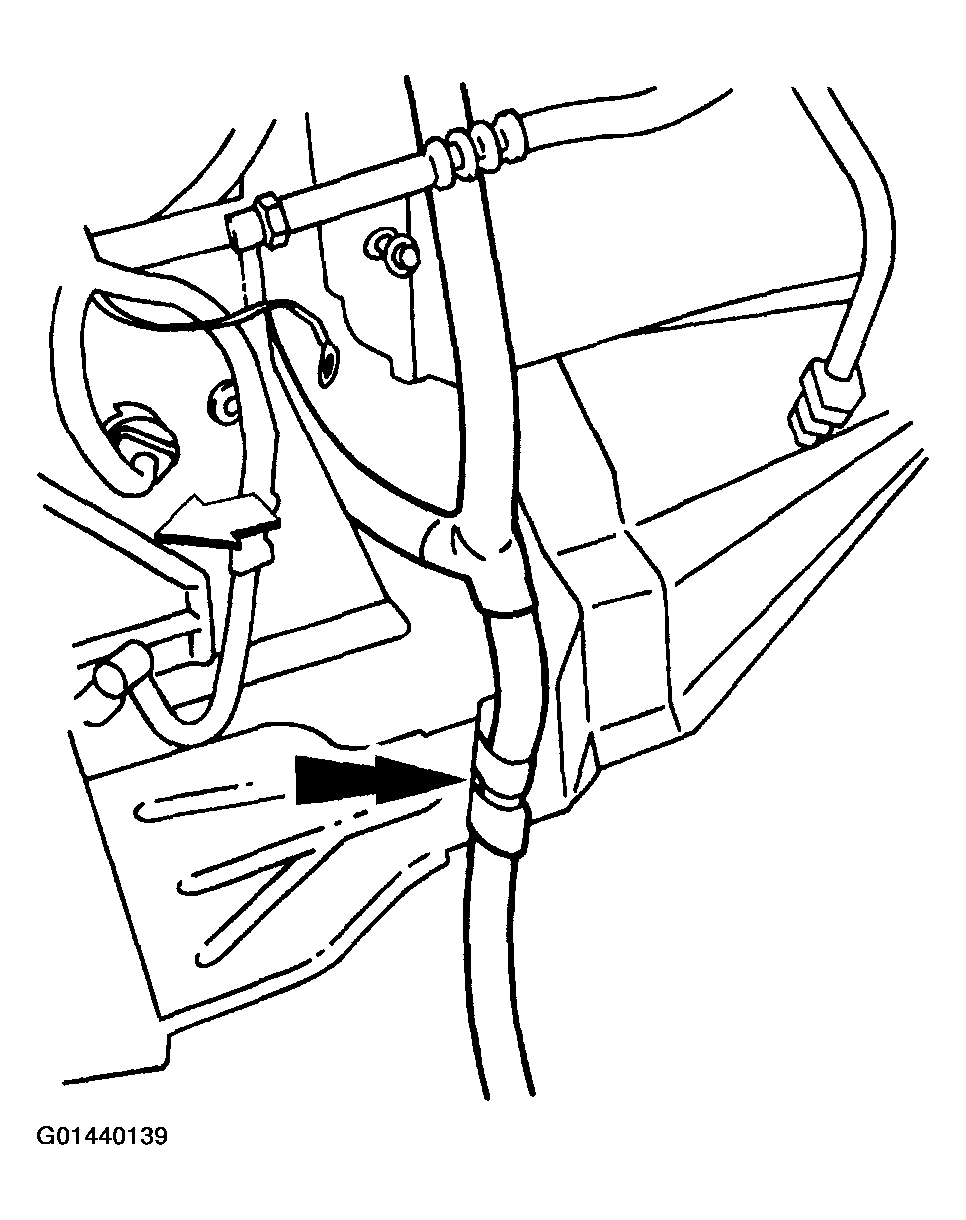

    Fig 5: Disengaging Harness Locator, Located Below Battery Tray Mounts
    G01440139Courtesy of FORD MOTOR CO.
  13. Pull the primary battery cable assembly out of the vehicle from the engine compartment.

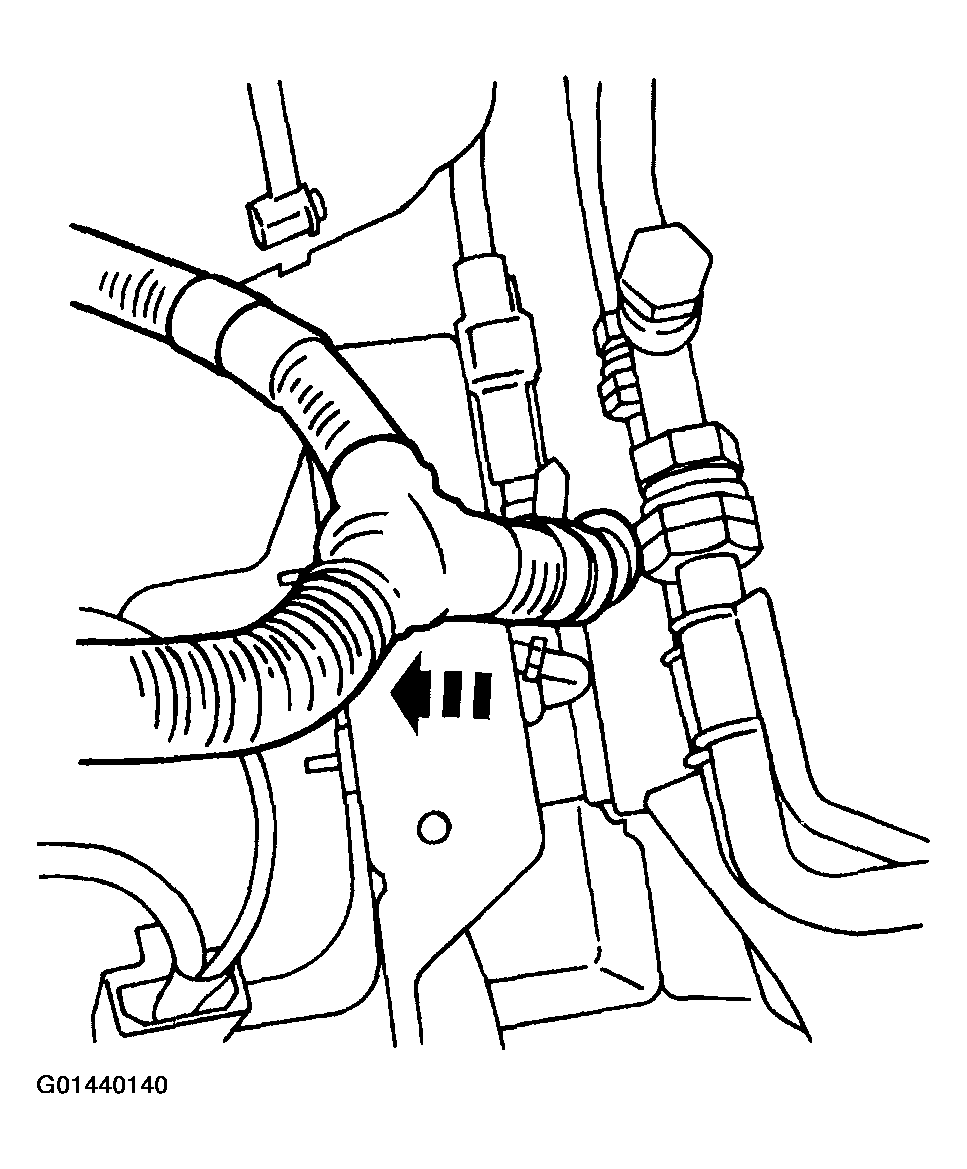

    Fig 6: Pulling Primary Battery Cable Assembly Out Of Vehicle From Engine Compartment
    G01440140Courtesy of FORD MOTOR CO.
