Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp switch knob.
    1. Remove the headlamp switch knob.
    2. Rotate the headlamp switch bezel counterclockwise and remove.
    Fig 1: Removing Headlamp Switch Knob
    G01440025Courtesy of FORD MOTOR CO.
  2. Remove the instrument panel finish panel.
    1. Remove the bolts.
    2. Remove the instrument panel finish panel.
    • Disconnect the electrical connectors.

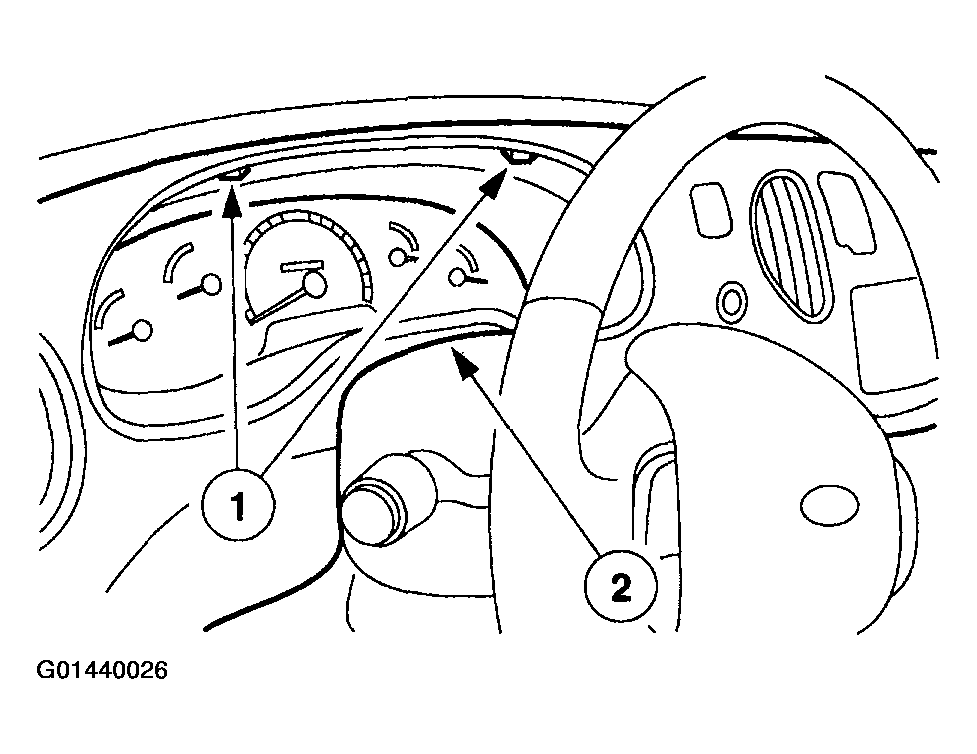

    Fig 2: Removing Instrument Panel Finish Panel
    G01440026Courtesy of FORD MOTOR CO.
  3. Remove the instrument cluster.
    1. Remove the bolts.
      • Remove the transmission range indicator and disconnect the electrical connectors.
    2. Remove the instrument cluster.

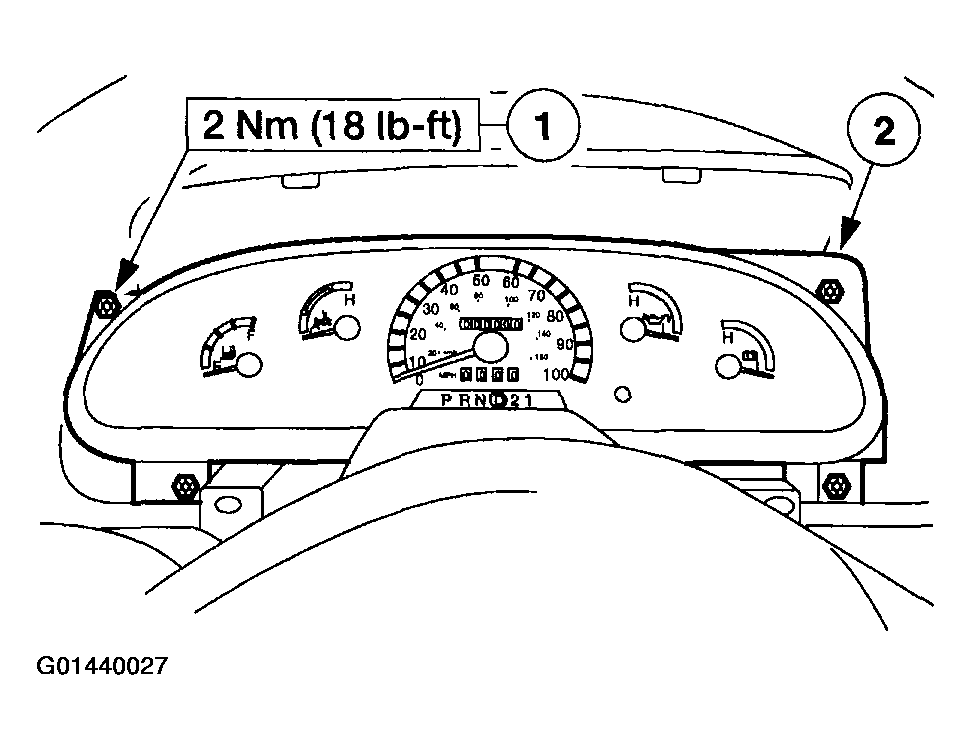

    Fig 3: Removing Instrument Cluster
    G01440027Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
