Pinpoint Test J: Charge System Warning Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

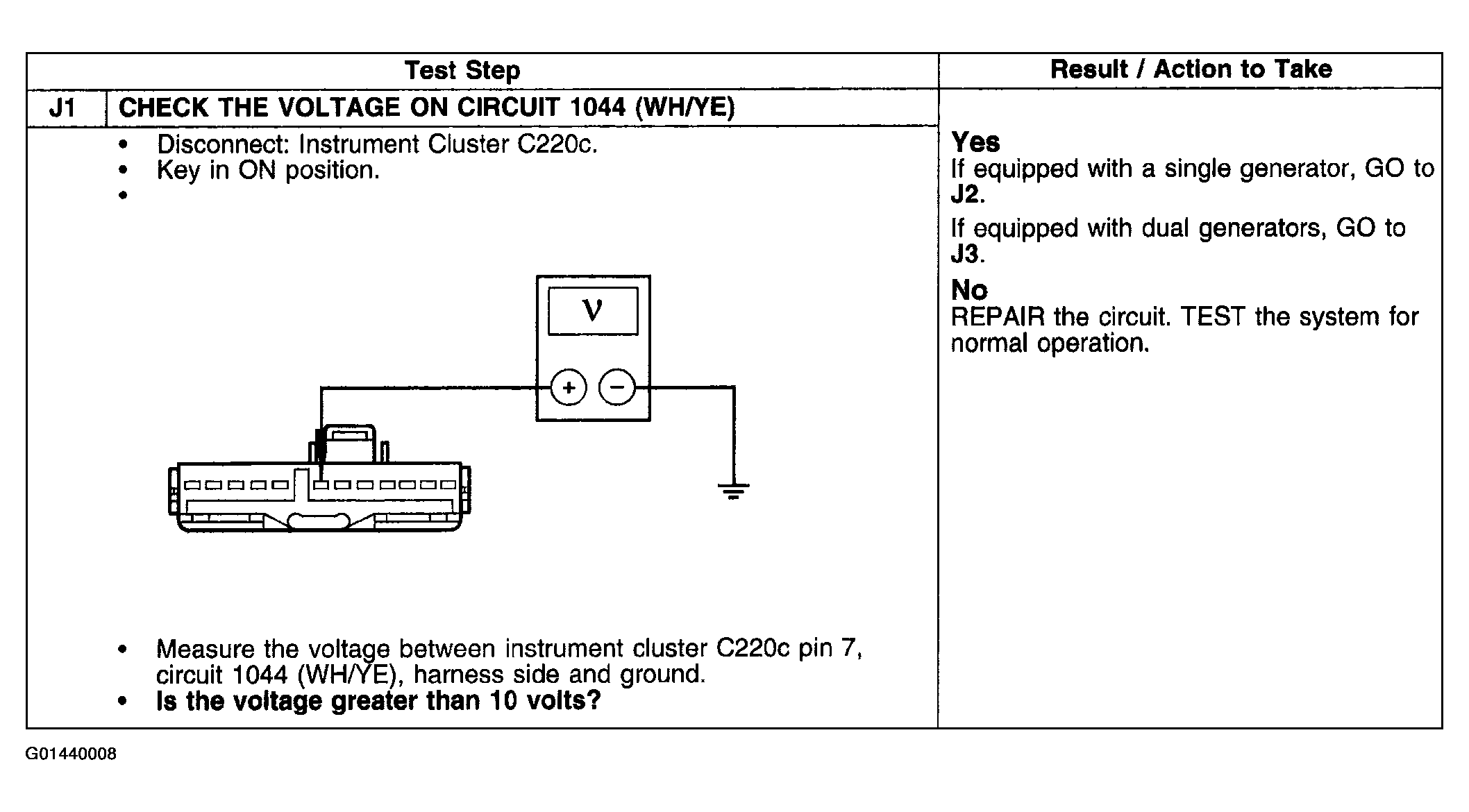

Fig 1: Pinpoint Test J: Charge System Warning Indicator Is Inoperative (J1)
G01440008Courtesy of FORD MOTOR CO.

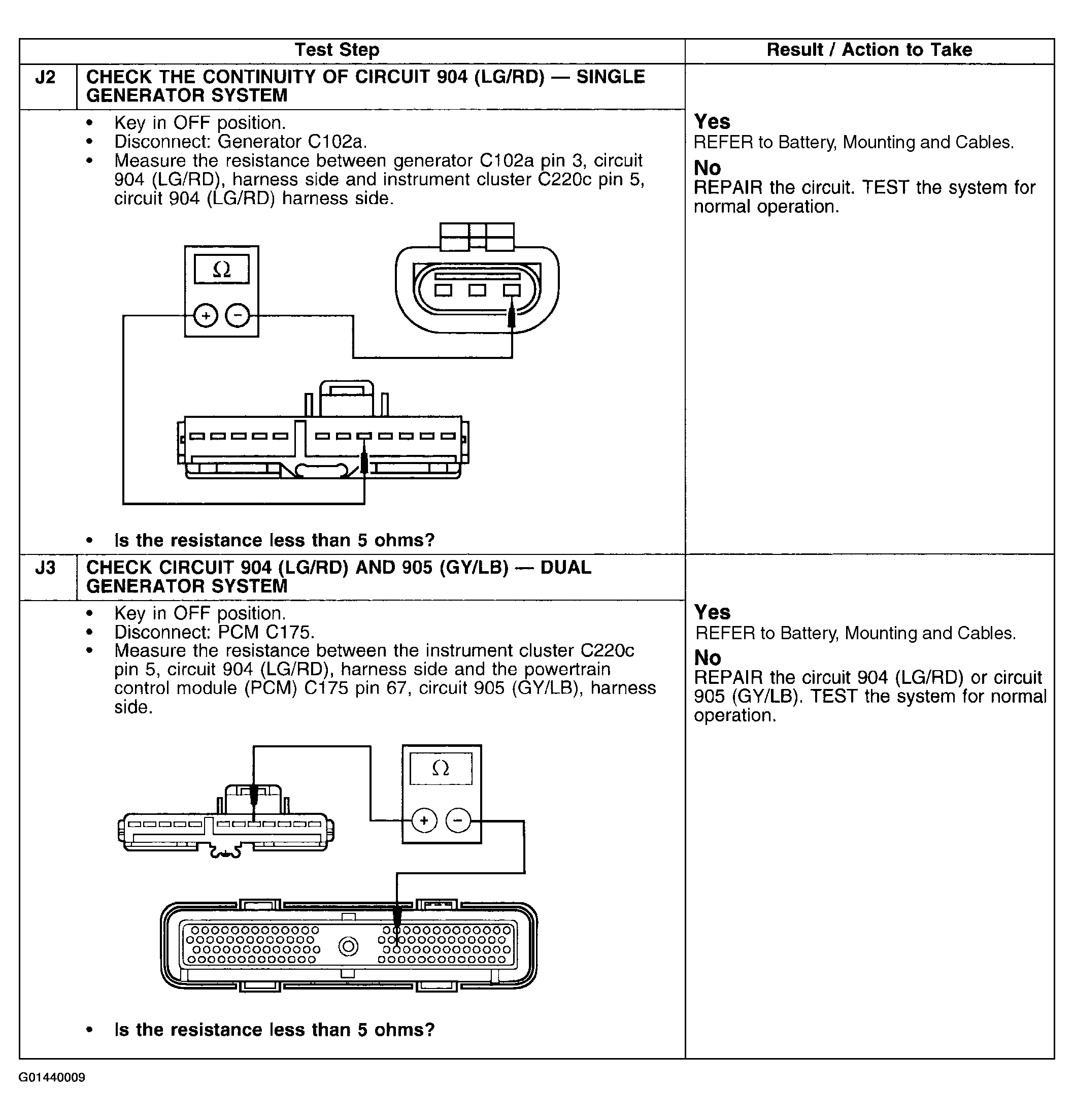

Fig 2: Pinpoint Test J: Charge System Warning Indicator Is Inoperative (J2-J3)
G01440009Courtesy of FORD MOTOR CO.
