Suction Accumulator/Drier - Standard A/C: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Service the new suction accumulator/drier with the correct amount of PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  2. Install the A/C cycling switch.
    • Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B.
      Fig 1: Installing A/C Cycling Switch
      G01452945Courtesy of FORD MOTOR CO.
  3. Install the suction accumulator/drier.
    1. Install the suction accumulator/drier.
    2. Install the screws.

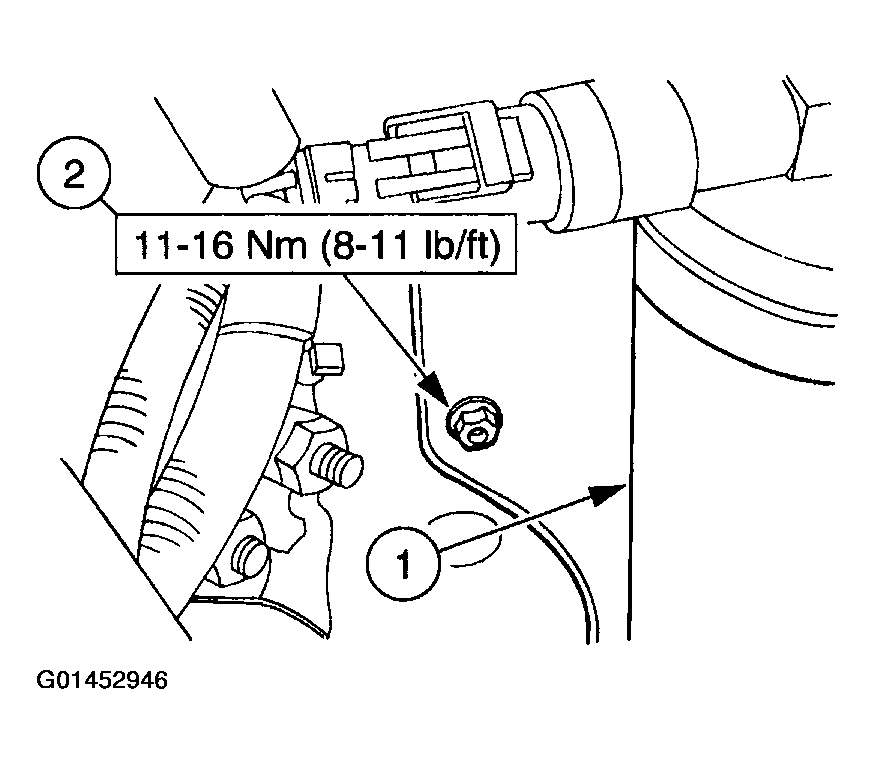

      Fig 2: Installing Suction Accumulator/Drier
      G01452946Courtesy of FORD MOTOR CO.
  4. Connect the A/C cycling switch electrical connector.

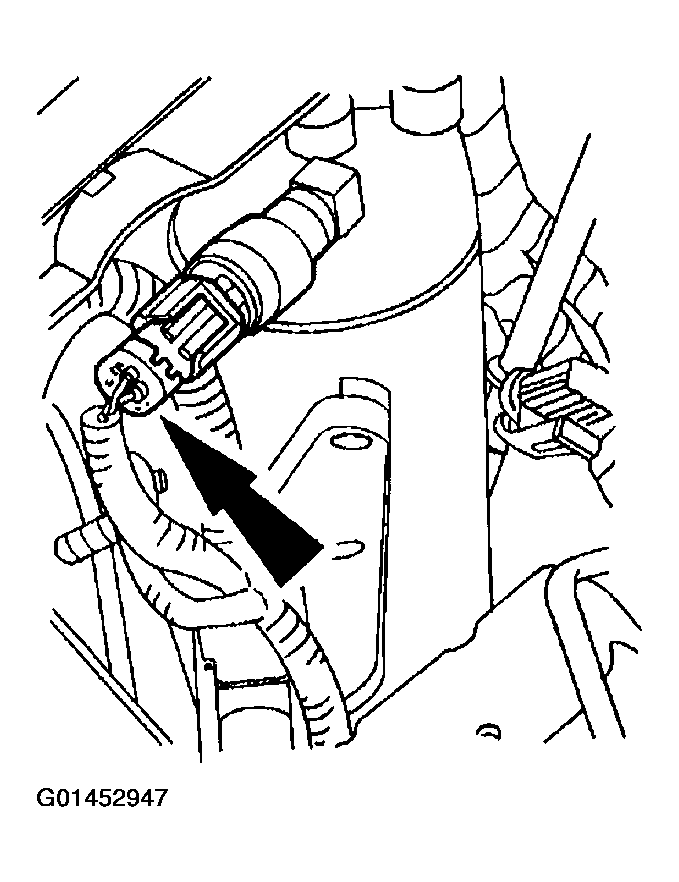

    Fig 3: Connecting A/C Cycling Switch Electrical Connector
    G01452947Courtesy of FORD MOTOR CO.
    5. CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.
  5. Connect the evaporator discharge line.
    • Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B and install the O-ring seals.

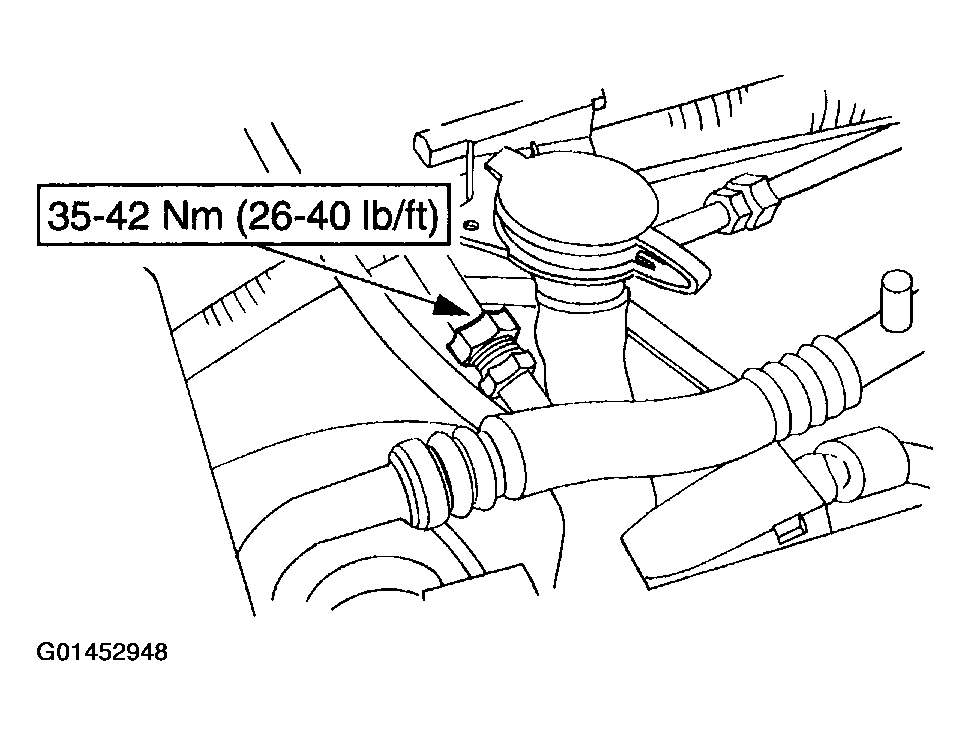

      Fig 4: Connecting Evaporator Discharge Line
      G01452948Courtesy of FORD MOTOR CO.
    6. CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.
  6. Connect the compressor suction line.
    1. Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B and install the O-ring seals.
    2. Connect the compressor suction line.
    3. Install the screw.

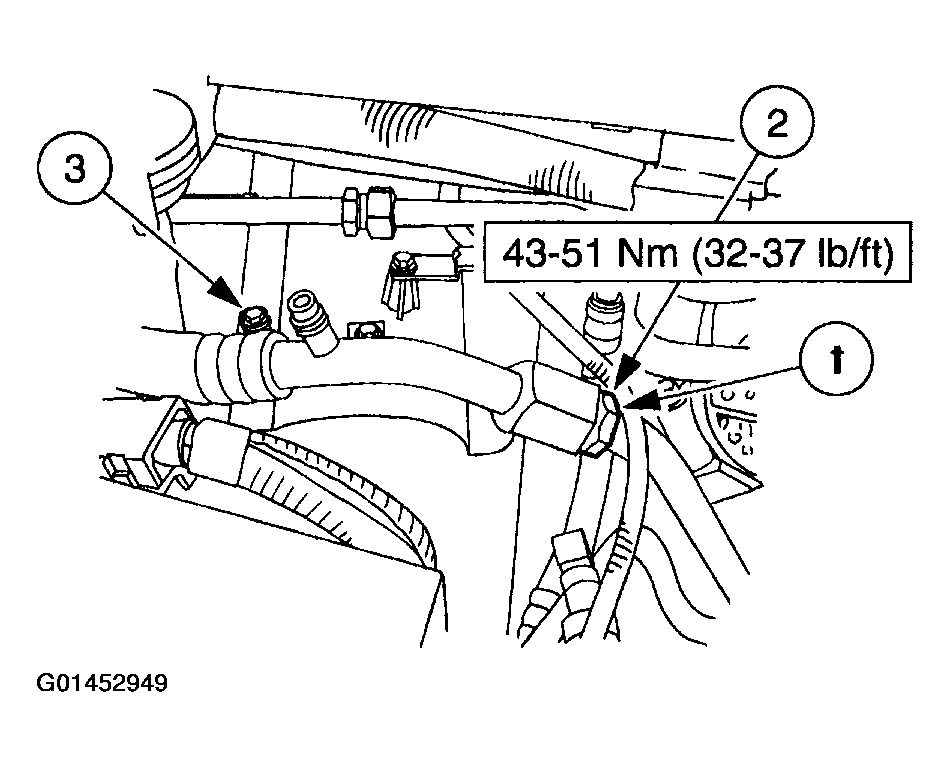

      Fig 5: Connecting Compressor Suction Line
      G01452949Courtesy of FORD MOTOR CO.
  7. Install the battery tray.

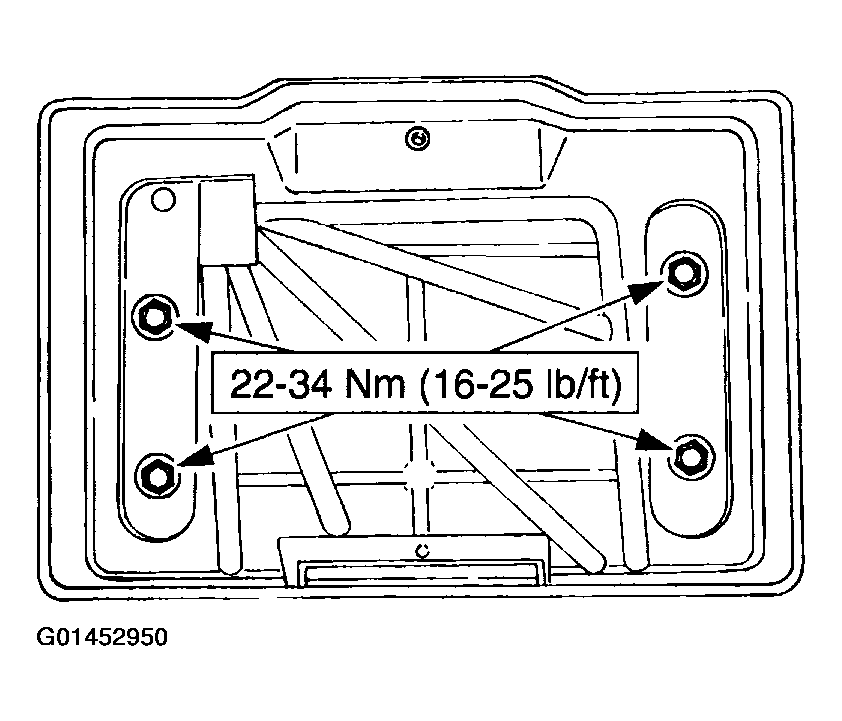

    Fig 6: Installing Battery Tray
    G01452950Courtesy of FORD MOTOR CO.
  8. Install the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  9. Evacuate and charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
