Suction Accumulator/Drier - Auxiliary A/C-Heater System: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
Remove the battery (10655). For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the battery tray.

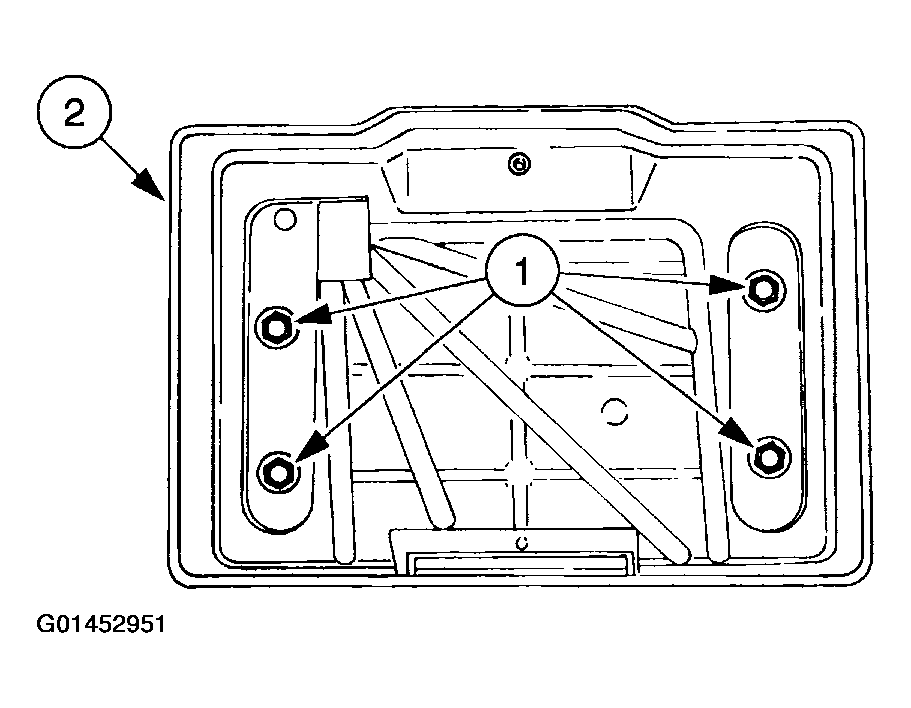

1. Remove the screws.
2. Remove the battery tray.

  Fig 1: Removing Battery Tray
  Courtesy of FORD MOTOR CO.

CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.

Fig 2: Disconnecting Evaporator Discharge Line

Courtesy of FORD MOTOR CO.

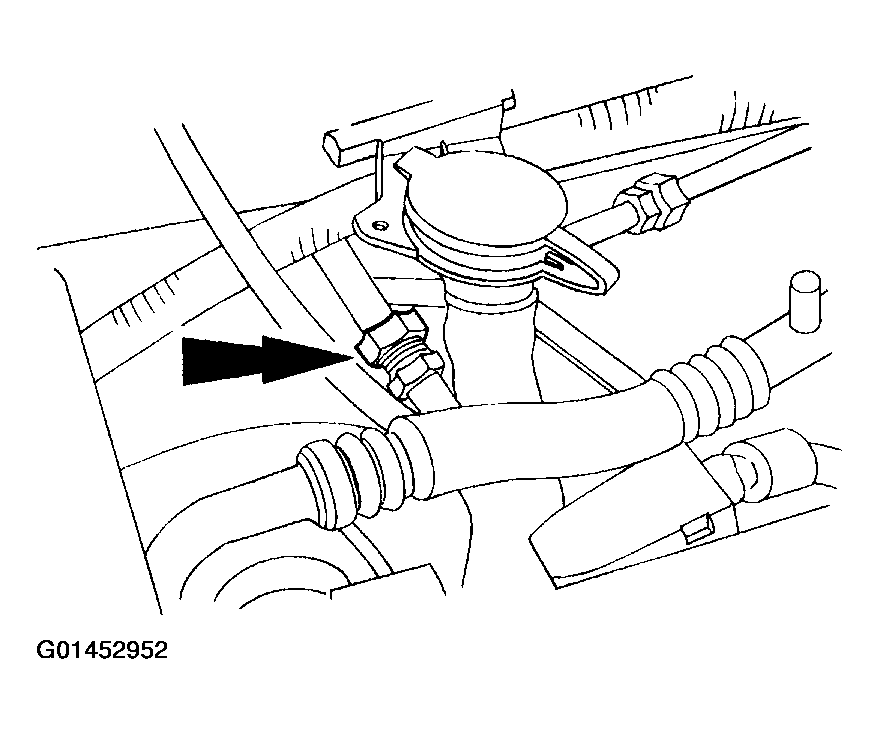

Disconnect the evaporator discharge line.

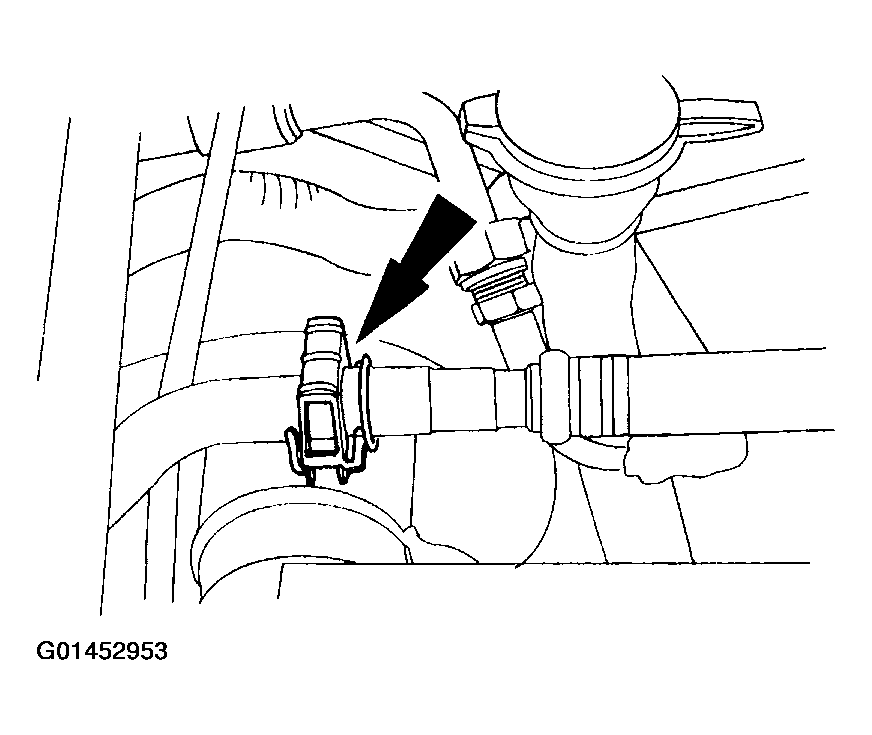

Disconnect the auxiliary evaporator to compressor tube spring lock coupling. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

Fig 3: Disconnecting Auxiliary Evaporator To Compressor Tube Spring Lock Coupling
Courtesy of FORD MOTOR CO.

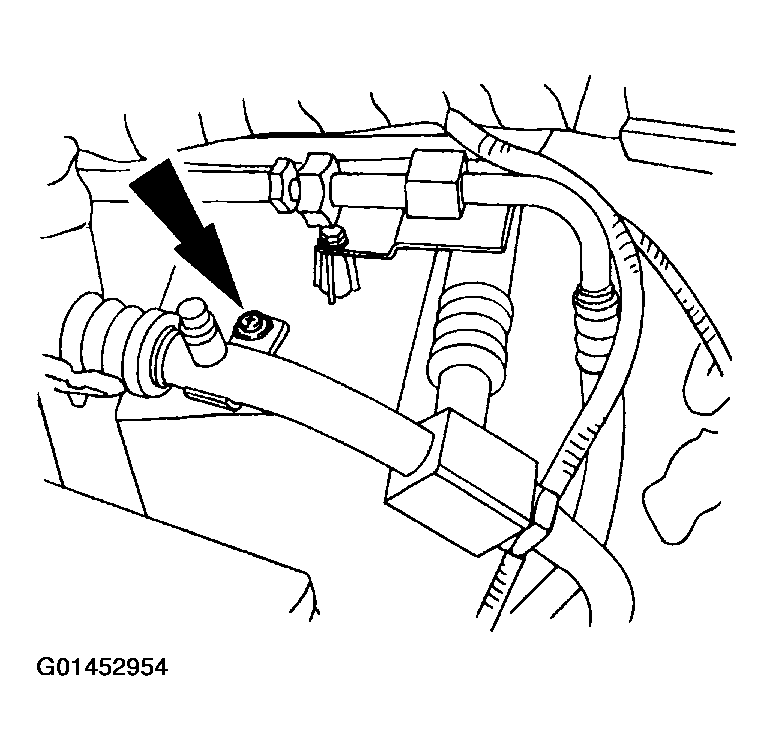

Remove the screw.

Fig 4: Removing Screw
Courtesy of FORD MOTOR CO.

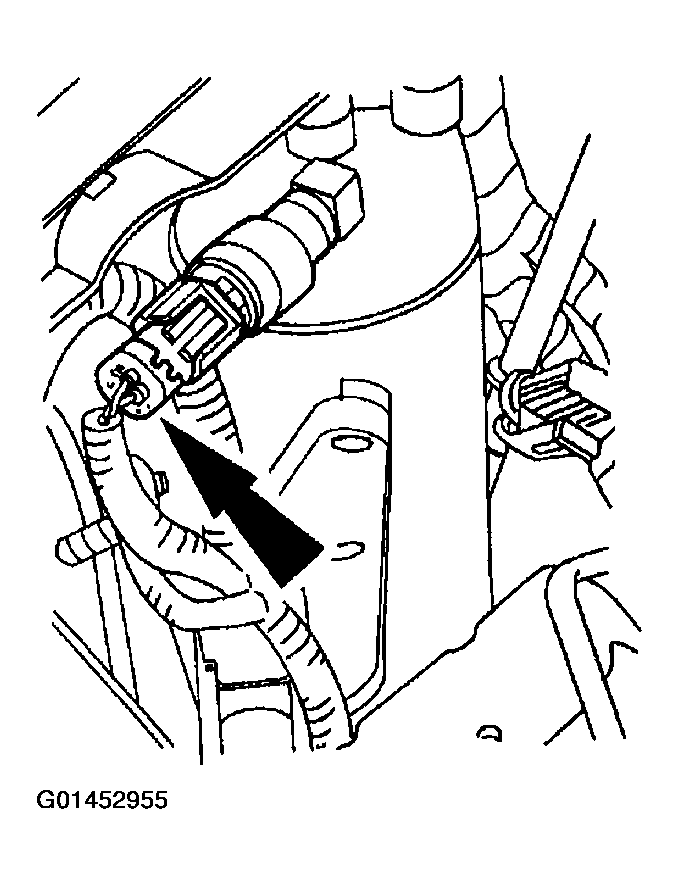

Disconnect the A/C cycling switch connector.

Fig 5: Disconnecting A/C Cycling Switch Connector
Courtesy of FORD MOTOR CO.

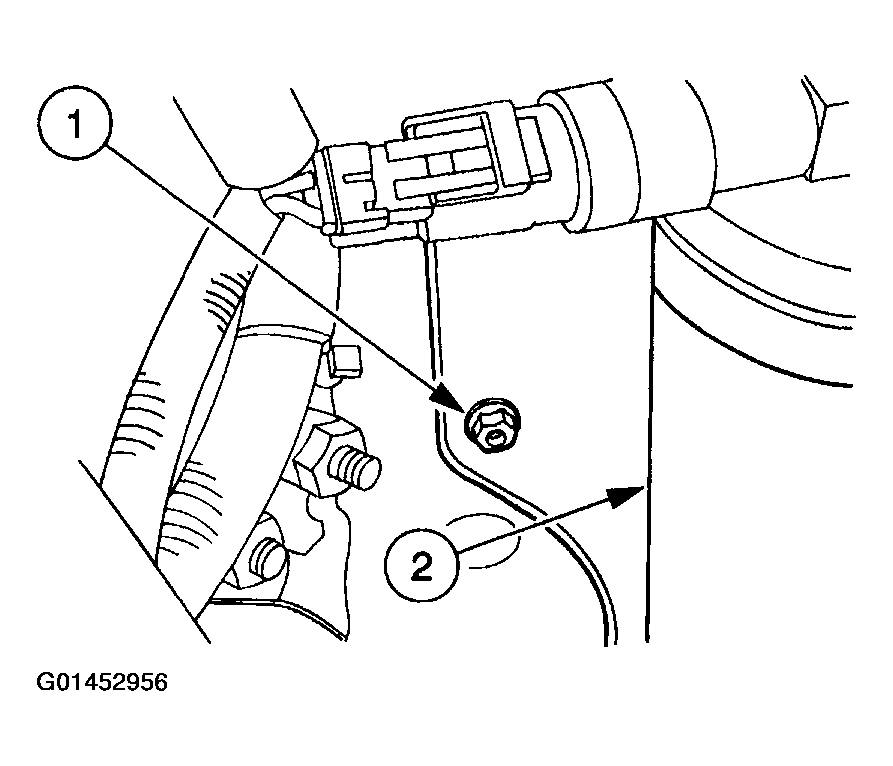

Remove the suction accumulator/drier (19C836).
1. Remove the screws.
2. Remove the suction accumulator/drier.

  Fig 6: Removing Suction Accumulator/Drier
  Courtesy of FORD MOTOR CO.
Remove the A/C cycling switch (19E561).

Fig 7: Removing A/C Cycling Switch
Courtesy of FORD MOTOR CO.
