Suction Accumulator/Drier - Auxiliary A/C-Heater System: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Service the new suction accumulator/drier with the correct amount of PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C213-B. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  2. Install the A/C cycling switch.
    • Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B.
      Fig 1: Installing A/C Cycling Switch
      G01452958Courtesy of FORD MOTOR CO.
  3. Install the suction accumulator/drier.
    1. Install the suction accumulator/drier.
    2. Install the screws.

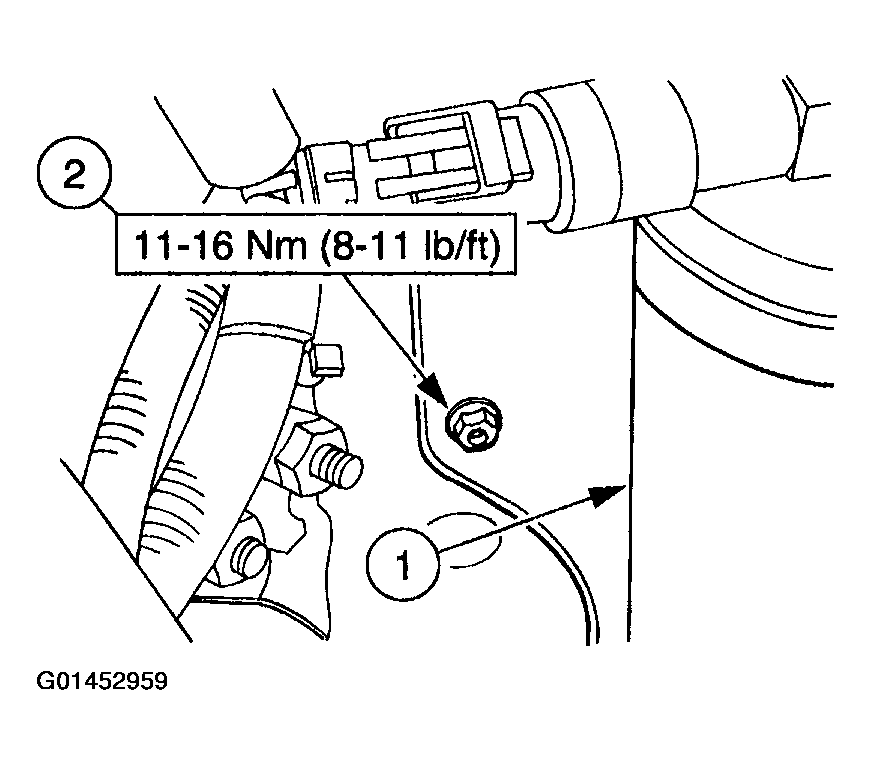

      Fig 2: Installing Suction Accumulator/Drier
      G01452959Courtesy of FORD MOTOR CO.
  4. Connect the A/C cycling switch connector.

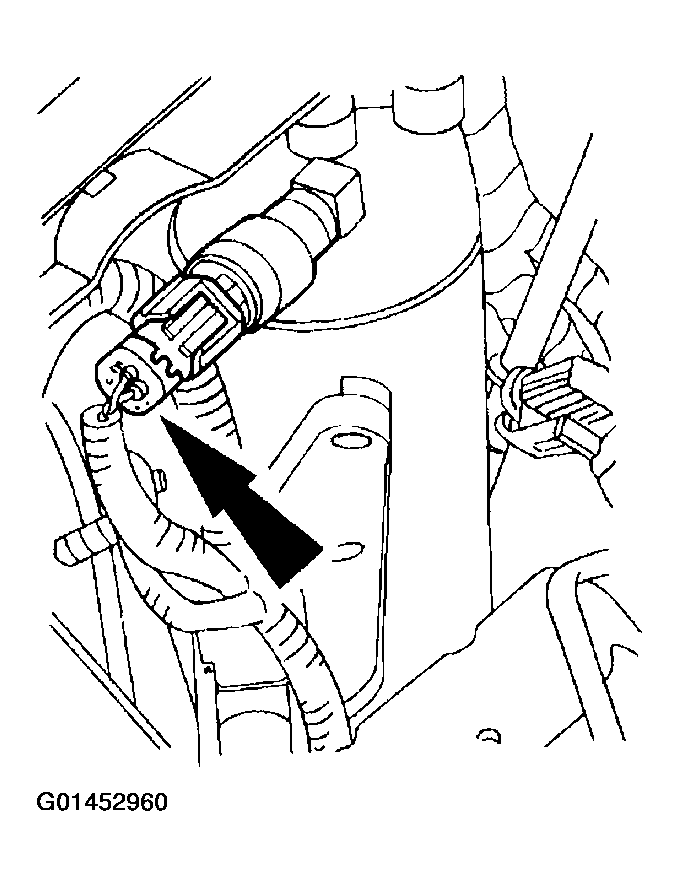

    Fig 3: Connecting A/C Cycling Switch Connector
    G01452960Courtesy of FORD MOTOR CO.
  5. Connect the evaporator discharge line.
    1. Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B and install the O-ring seals.
    2. Connect the evaporator discharge line.

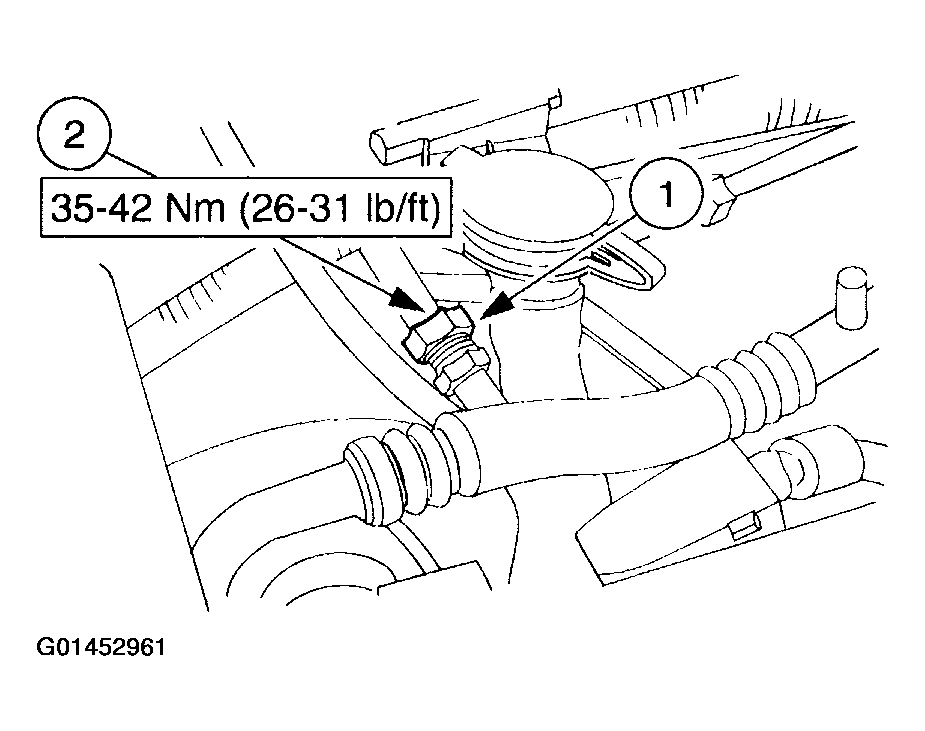

      Fig 4: Connecting Evaporator Discharge Line
      G01452961Courtesy of FORD MOTOR CO.
  6. Connect the auxiliary evaporator to compressor line spring lock coupling. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

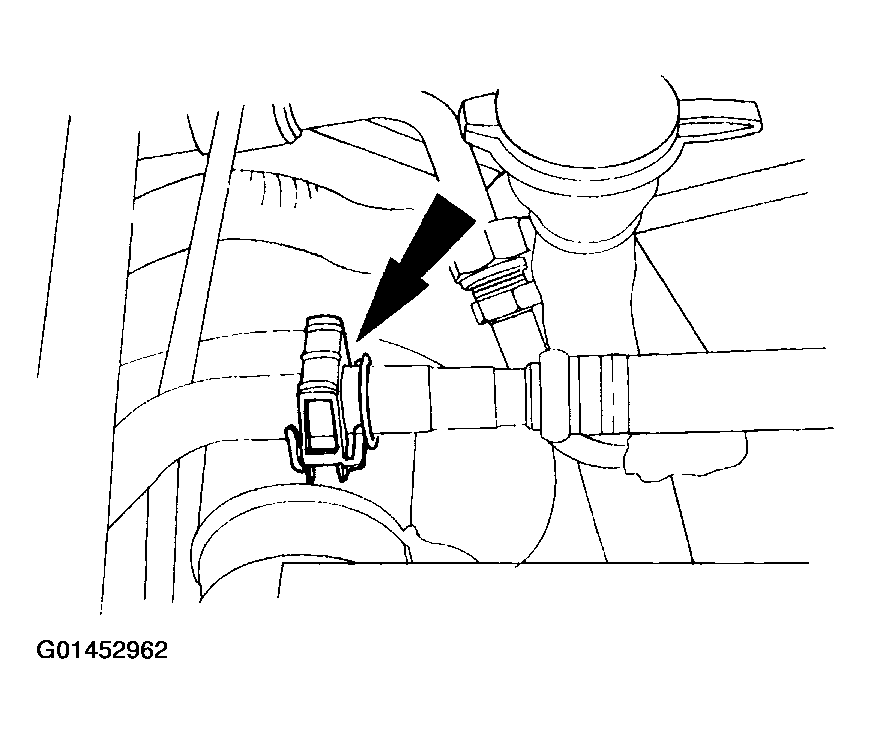

    Fig 5: Connecting Auxiliary Evaporator To Compressor Line Spring Lock Coupling
    G01452962Courtesy of FORD MOTOR CO.
  7. Install the screw.

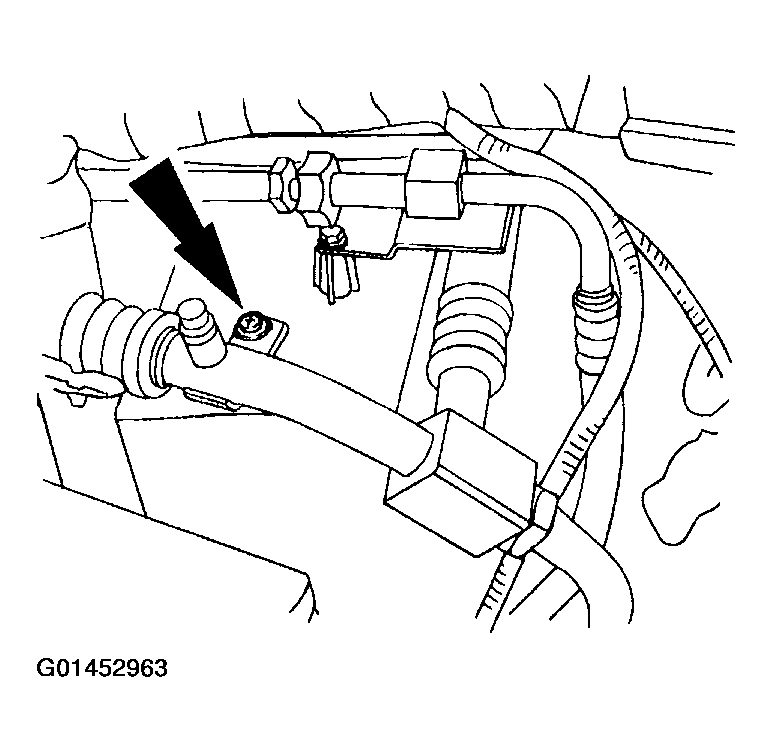

    Fig 6: Installing Screw
    G01452963Courtesy of FORD MOTOR CO.
  8. Install the battery tray

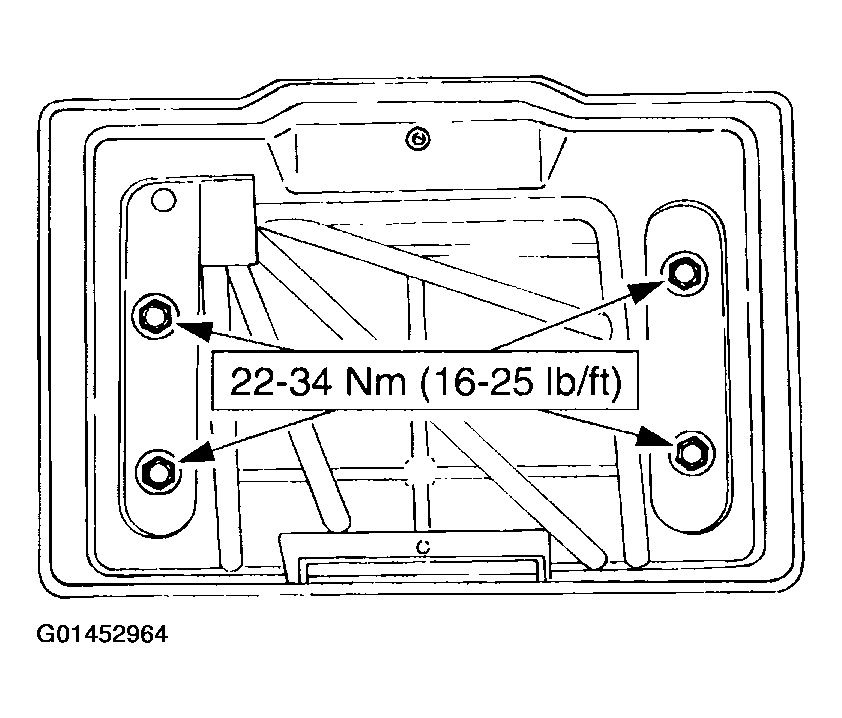

    Fig 7: Installing Battery Tray
    G01452964Courtesy of FORD MOTOR CO.
  9. Install the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  10. Evacuate and charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
