Line - A/C Refrigeration, Auxiliary: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Service the new auxiliary A/C refrigeration line with the correct amount of PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
Route the auxiliary A/C refrigeration line.
Raise and support the vehicle.
Connect the underbody tube spring lock coupling. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

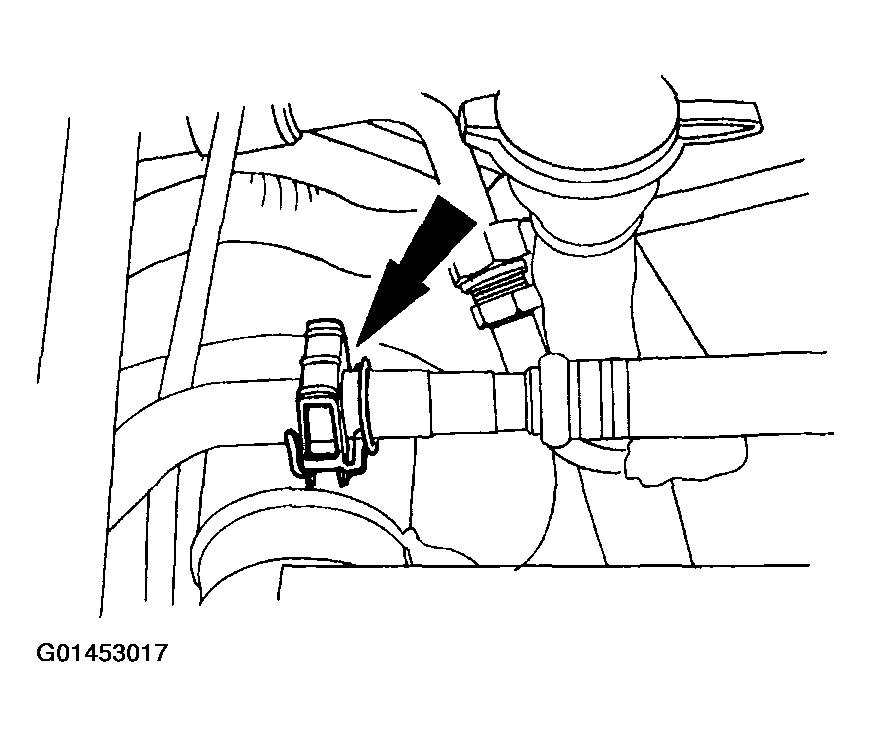

Fig 1: Connecting Underbody Tube Spring Lock Coupling
Courtesy of FORD MOTOR CO.
Lower the vehicle.

CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.

Connect the compressor suction line.
1. Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B and install the O-ring seals.
2. Connect the compressor suction line.

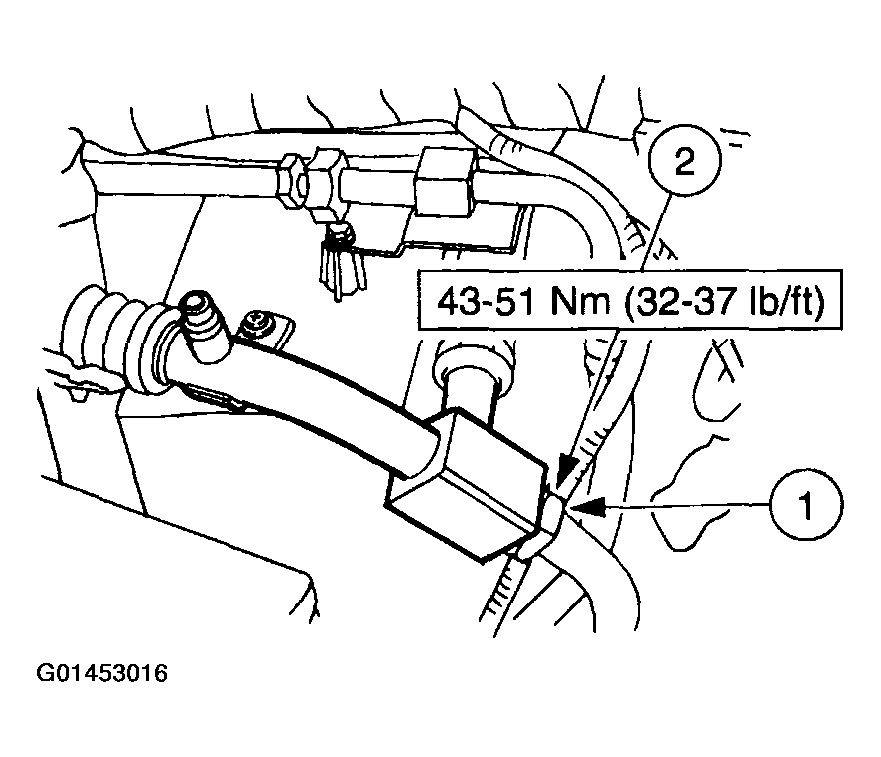

  Fig 2: Connecting Compressor Suction Line
  Courtesy of FORD MOTOR CO.
Connect the suction accumulator/drier spring lock coupling. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

Fig 3: Connecting Suction Accumulator/Drier Spring Lock Coupling
Courtesy of FORD MOTOR CO.
Install the four clamps.
1. Install the clamp.
2. Install the screw.

  Fig 4: Installing Four Clamps
  Courtesy of FORD MOTOR CO.
Install the condenser to evaporator tube. For additional information, refer to LINE - CONDENSER TO EVAPORATOR, AUXILIARY A/C-HEATER SYSTEM .
