A/C Cycling Switch: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the A/C cycling switch connector.

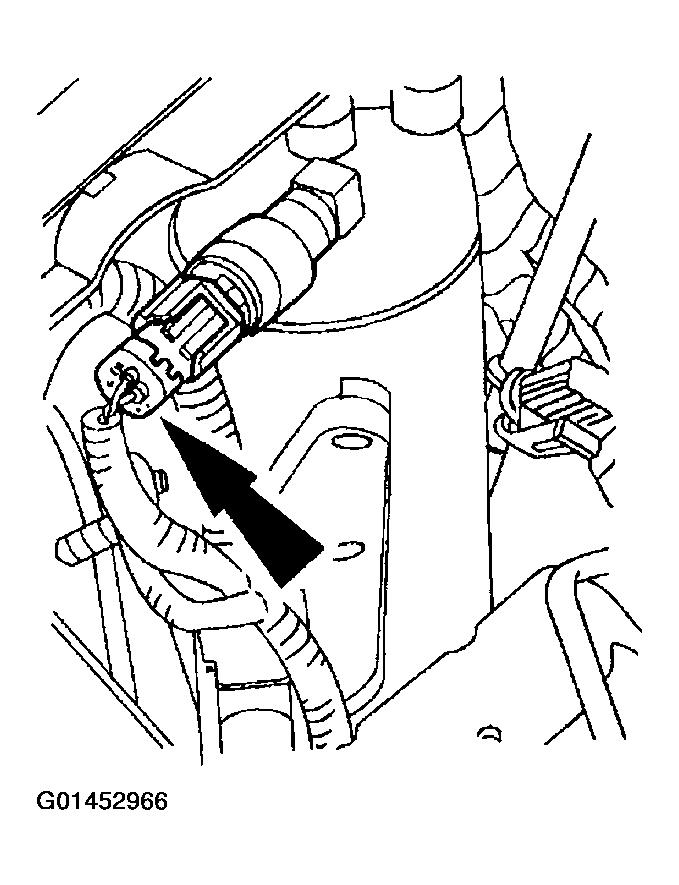

    Fig 1: Disconnecting A/C Cycling Switch Connector
    G01452966Courtesy of FORD MOTOR CO.
  3. Remove the A/C cycling switch (19E561) from the top of the suction accumulator/drier (19C836).
    Fig 2: Removing A/C Cycling Switch From Top Of Suction Accumulator/Drier
    G01452967Courtesy of FORD MOTOR CO.
