Blower Motor: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (10655).
  2. Remove the battery tray.
    1. Remove the screws.
    2. Remove the battery tray.

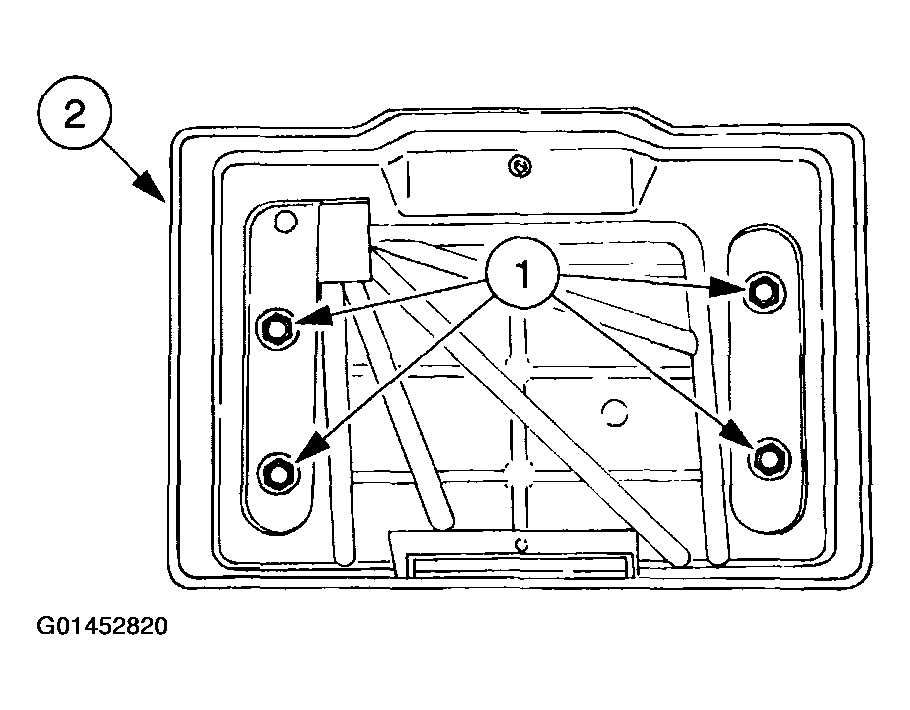

      Fig 1: Removing Battery Tray
      G01452820Courtesy of FORD MOTOR CO.
    3. NOTE: This step must be performed if the vehicle is equipped with an A/C system.
  3. Move the suction accumulator/drier (19C836).
    1. Remove the three screws.
    2. Move the suction accumulator/drier.

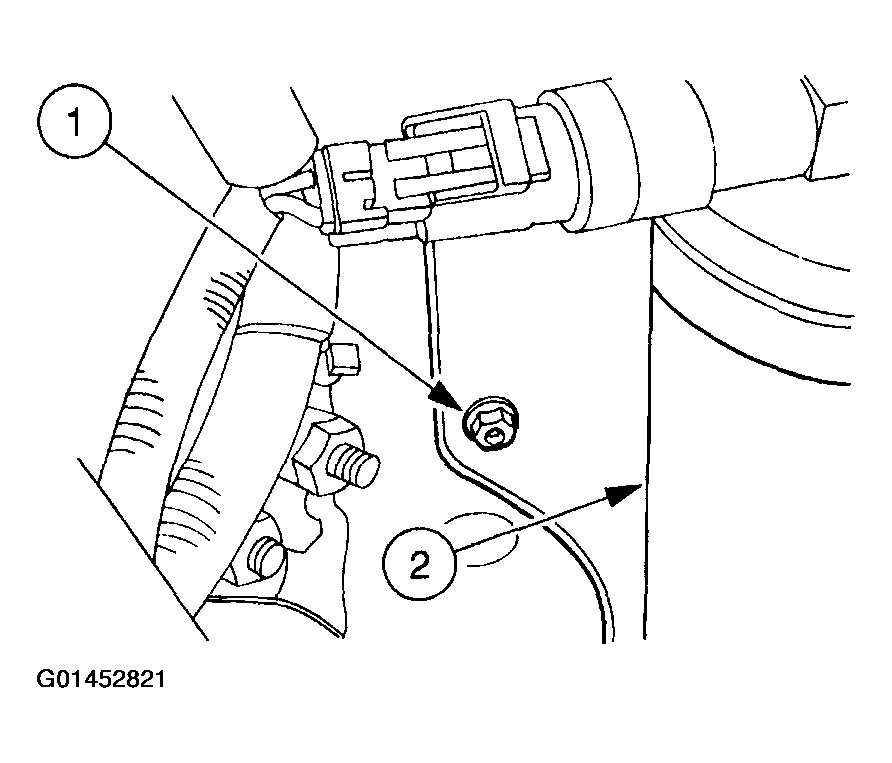

      Fig 2: Moving Suction Accumulator/Drier
      G01452821Courtesy of FORD MOTOR CO.
  4. Remove the blower motor (19805).
    1. Disconnect the electrical hardshell connector.
    2. Remove the blower motor housing tube (19A786).
    3. Remove four screws.
    4. Remove the retaining clip.
      5. NOTE: To ease removal, align the flat spot on the blower motor mounting plate with the accumulator.

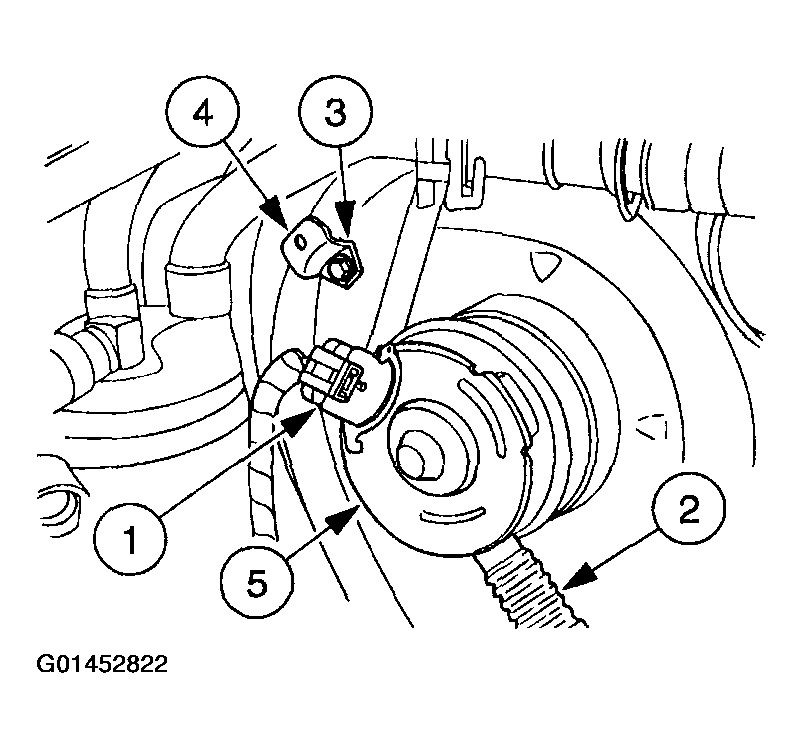

      Fig 3: Removing Blower Motor
      G01452822Courtesy of FORD MOTOR CO.
    5. Remove the blower motor.
    5. NOTE: Note the location of the blower motor wheel (18504) on the blower motor.
  5. Remove the blower motor wheel.
    1. Remove the retaining clip.
    2. Remove the blower motor wheel.

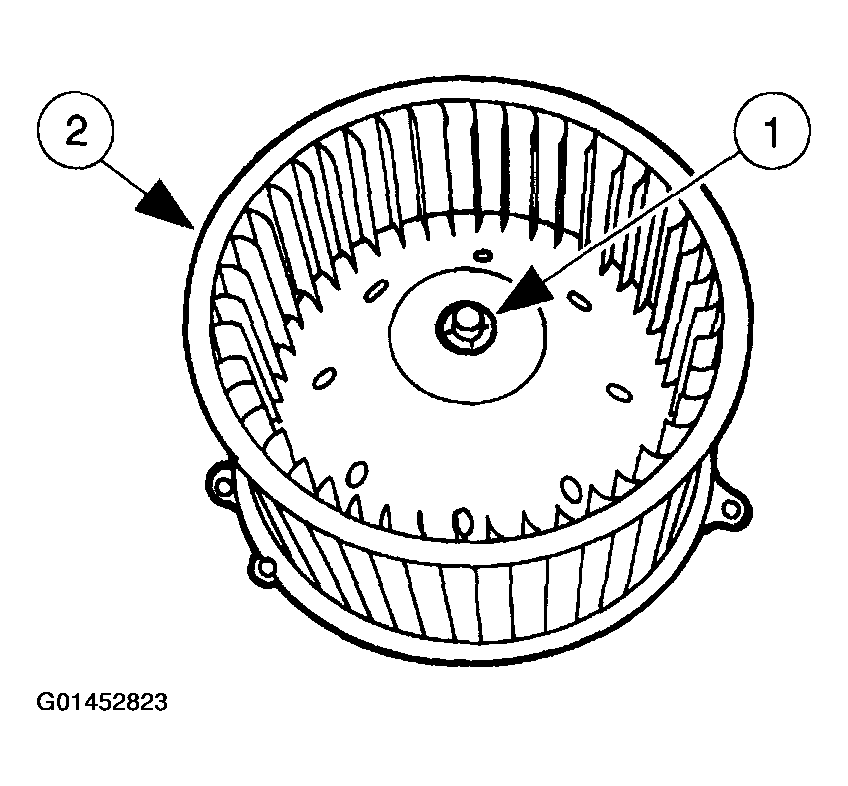

      Fig 4: Removing Blower Motor Wheel
      G01452823Courtesy of FORD MOTOR CO.
