Heater Core Housing: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

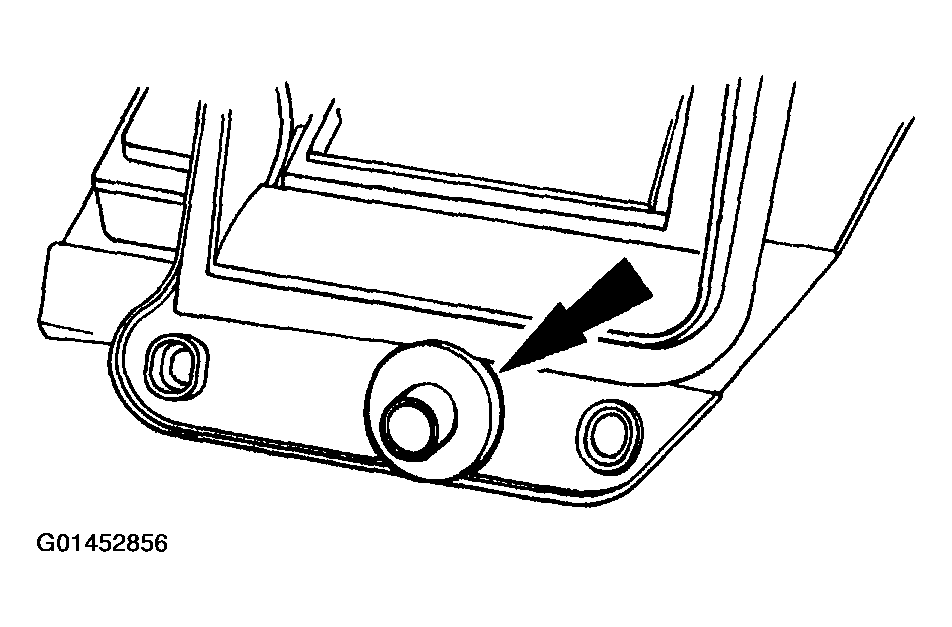

Remove the seal.

Fig 1: Removing Seal
Courtesy of FORD MOTOR CO.
Remove the heater core cover (18B300).
1. Remove the six screws.
2. Remove the heater core cover.

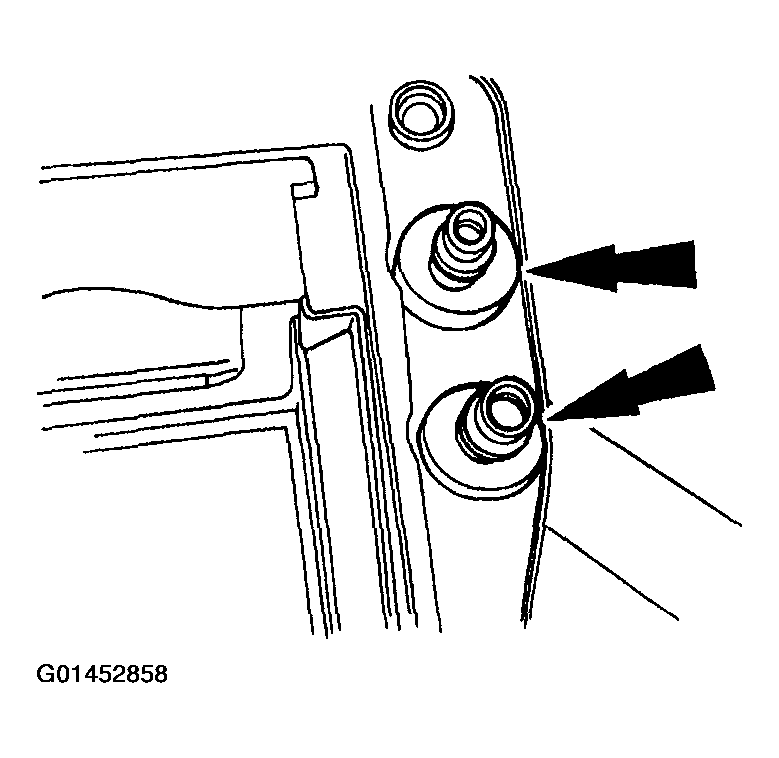

  - Remove and discard the heater core case seal (18658).

    Fig 2: Removing Heater Core Case Seal
    Courtesy of FORD MOTOR CO.
Remove the seals.

Fig 3: Removing Seals
Courtesy of FORD MOTOR CO.
Remove the heater core (18476).

Fig 4: Removing Heater Core
Courtesy of FORD MOTOR CO.
Drain the heater core.
Remove the A/C electronic door actuator motor (19E616).
1. Remove the screws.
2. Remove the A/C electronic door actuator motor.

  Fig 5: Removing A/C Electronic Door Actuator Motor
  Courtesy of FORD MOTOR CO.
Remove the temperature blend door.
1. Cut the seal.
2. Remove the temperature blend door.

  Fig 6: Removing Temperature Blend Door
  Courtesy of FORD MOTOR CO.
