Heating and Defrosting
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
The heating and defrosting system has the following features:
- Controls the temperature and, during A/C operation, reduces the relative humidity of the air inside the vehicle.
- Delivers heated or cooled air to maintain the vehicle interior temperature and comfort level.
- Controls the blower motor speed.
- Cooling or heating can be adjusted to maintain the desired temperature.
- System uses a reheat method to provide conditioned air to the passenger compartment.

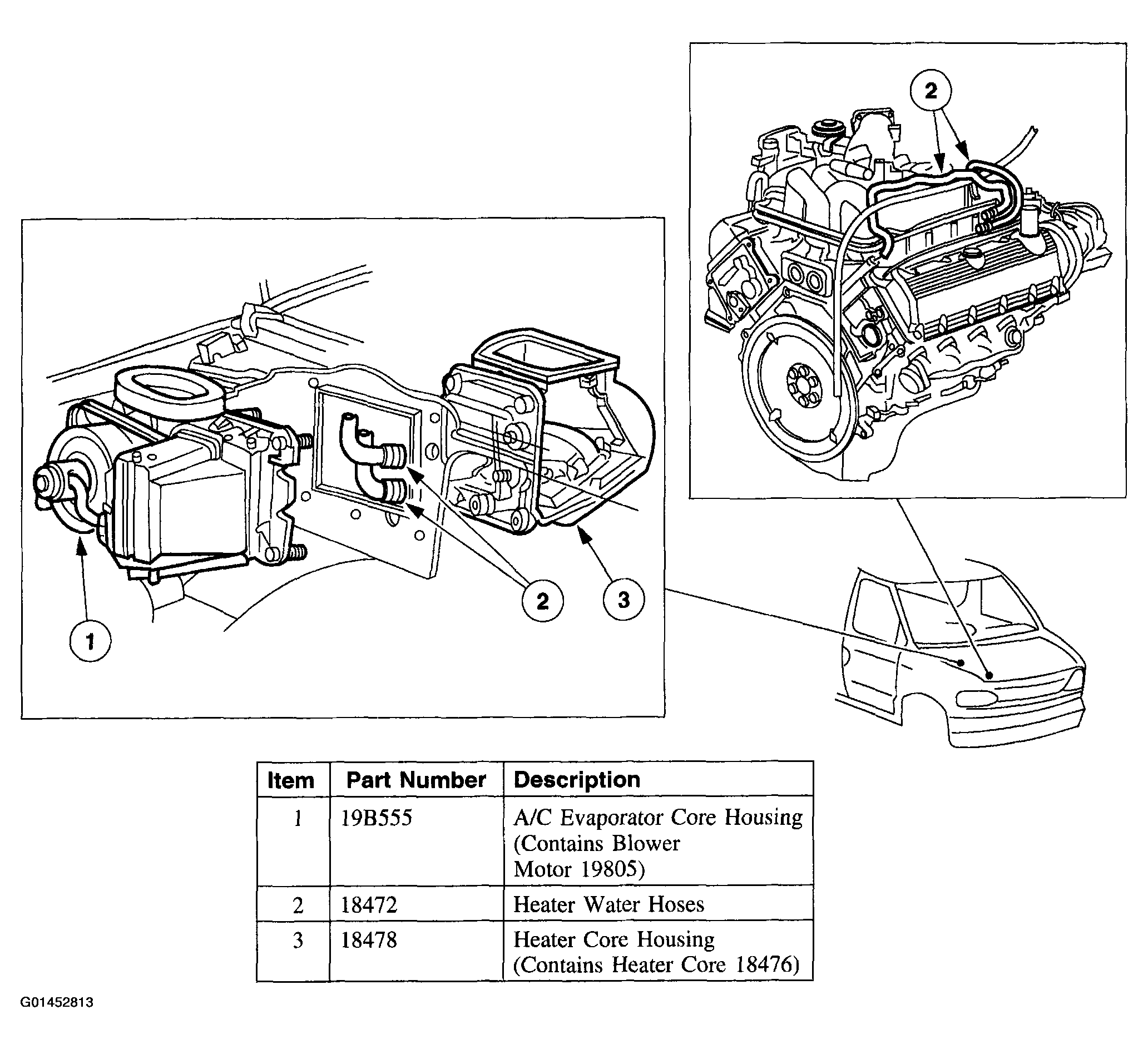

- The blower motor (19805) draws outside air through the air inlet duct from just below the windshield during all system operations except for MAX A/C, if equipped (when recirculated air is used).
- All airflow from the blower motor passes through the A/C evaporator core (19860), if equipped.
- The temperature is then regulated by reheating a portion of the air and blending it with the remaining cool air to the desired temperature.
- The temperature blending is varied by the air temperature control door, which regulates the amount of air that flows through and around the heater core (18476), where it is then mixed and distributed.
The heater core consists of fins and tubes arranged to extract heat from the engine coolant and transfer it to air passing through the heater core.

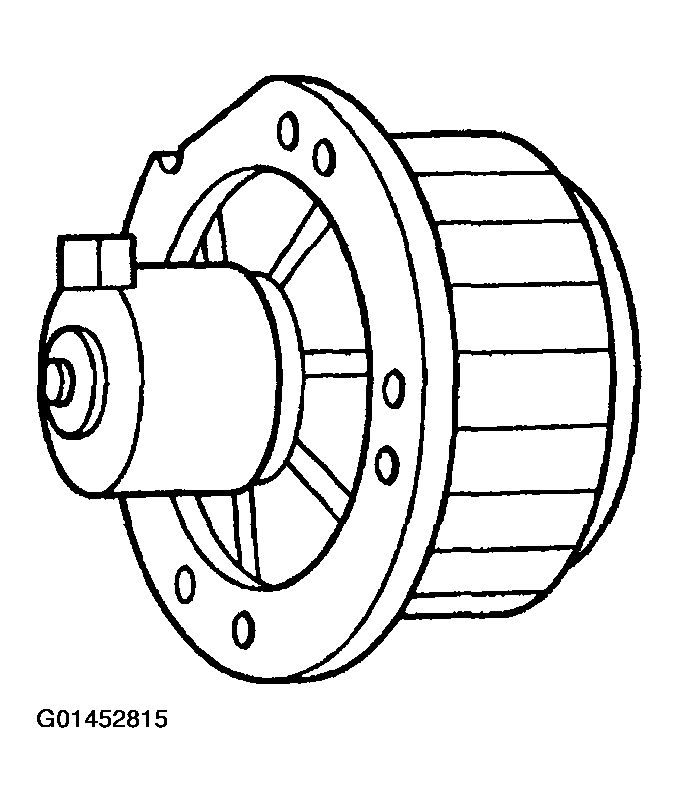

The A/C blower motor pulls air from the air inlet and forces it into the plenum assembly where it is mixed and distributed. The A/C blower motor has four speeds and is controlled by the blower motor switch and resistor.
