Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the accelerator pedal in place and disconnect the accelerator cable (9A758) from the accelerator pedal and shaft (9725).
    Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal
    G01540336Courtesy of FORD MOTOR CO.
  2. Remove the bolts retaining the accelerator pedal and shaft.

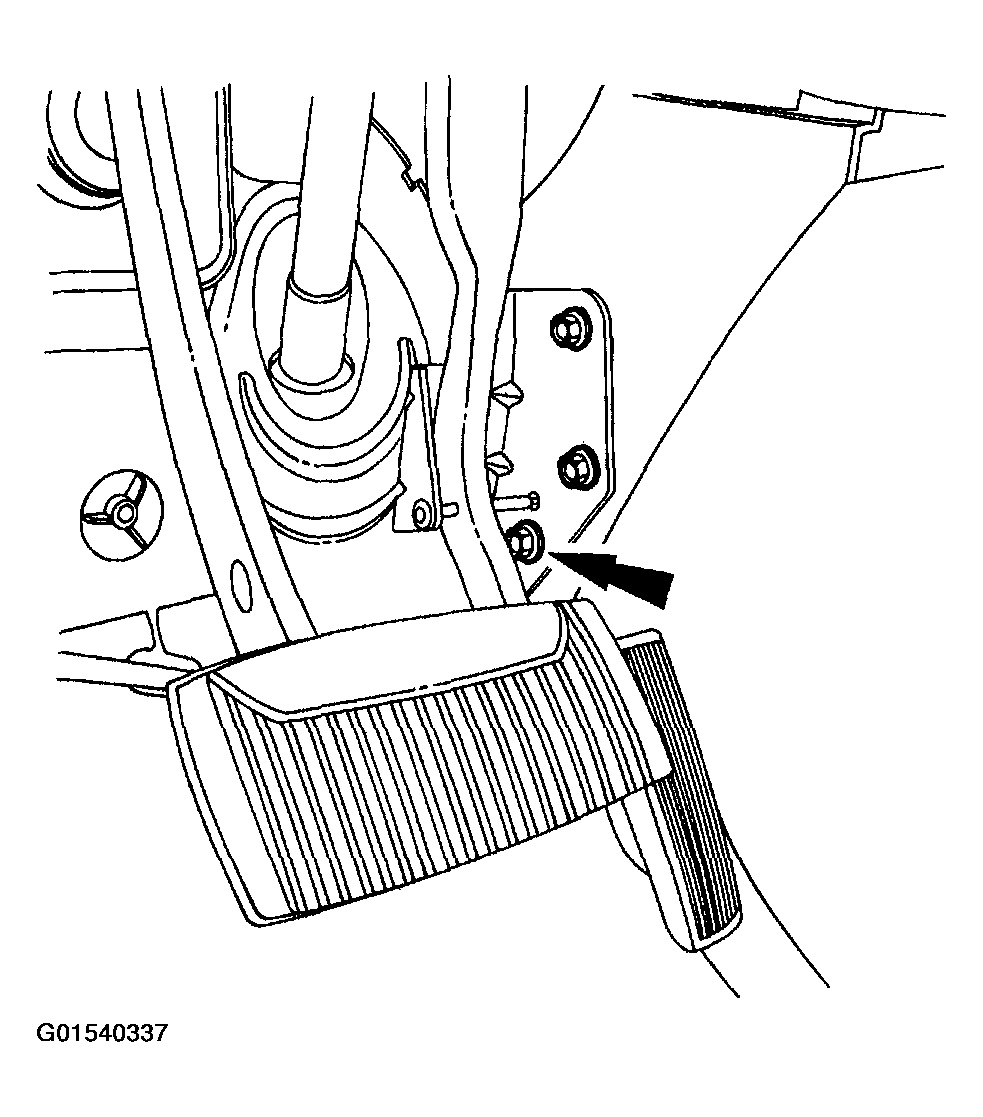

    Fig 2: Removing Bolts Retaining Accelerator Pedal And Shaft
    G01540337Courtesy of FORD MOTOR CO.
  3. Remove the accelerator pedal and shaft.
  4. To install, reverse the removal procedure.

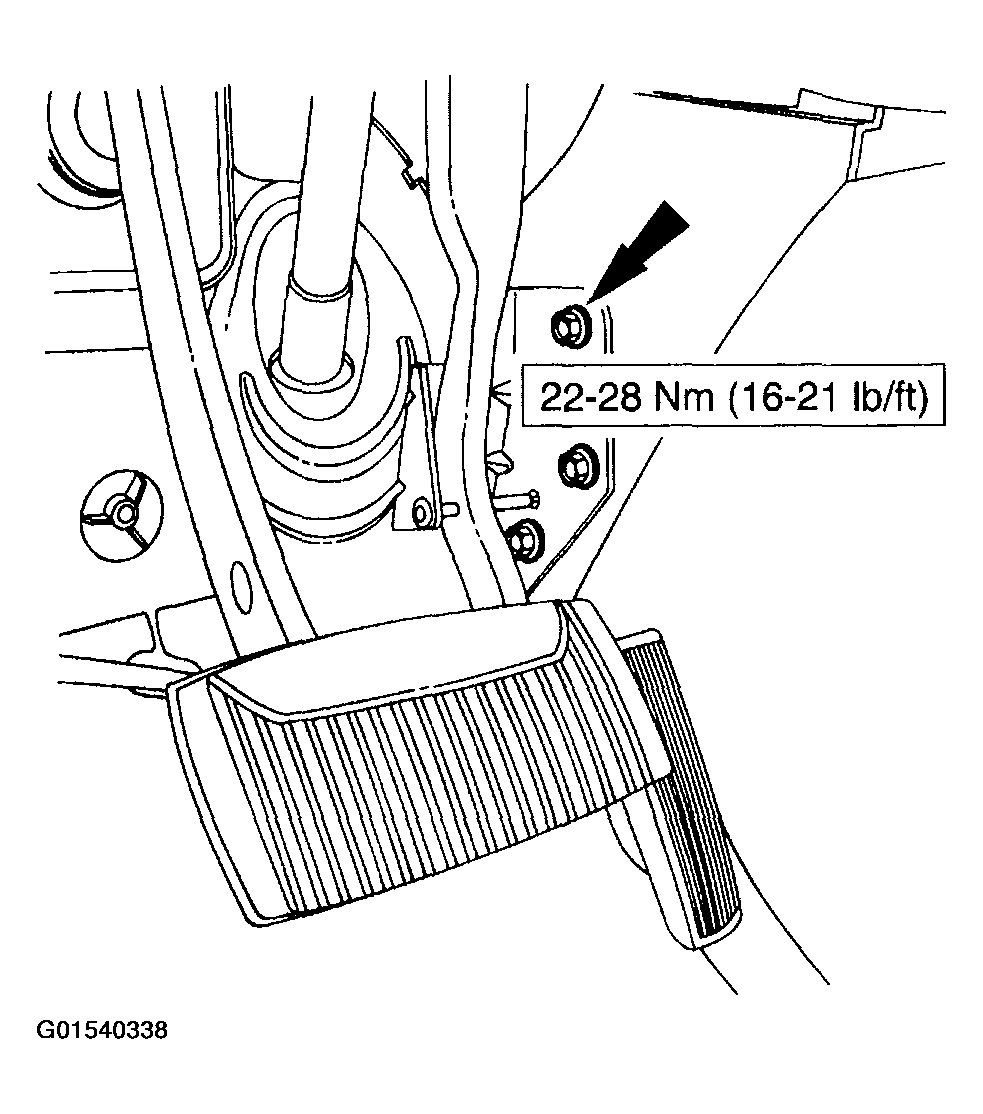

    Fig 3: Bolts With Torque Specification
    G01540338Courtesy of FORD MOTOR CO.
