Tank - Rear Aft-Axle: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the aft-axle fuel tank assembly. For additional information, refer to FUEL TANK - AFT-AXLE ASSEMBLY .
  2. Disconnect the fuel tank balance tube from the rear aft-axle fuel tank solenoid valve.
    Fig 1: Disconnecting Fuel Tank Balance Tube
    G01540254Courtesy of FORD MOTOR CO.
  3. Remove the rear aft-axle fuel tank.
    1. Remove the fuel tank support strap retaining nuts.
    2. Remove the rear aft-axle fuel tank.

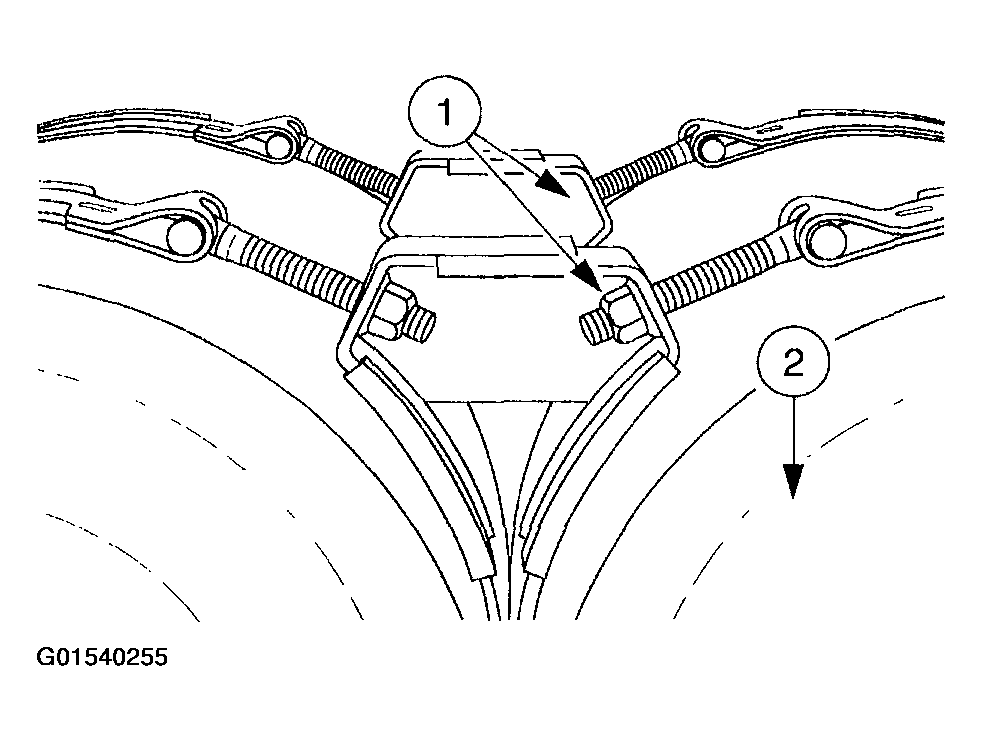

    Fig 2: Removing Rear Aft-Axle Fuel Tank
    G01540255Courtesy of FORD MOTOR CO.
