Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat. For additional information, refer to SEATING .

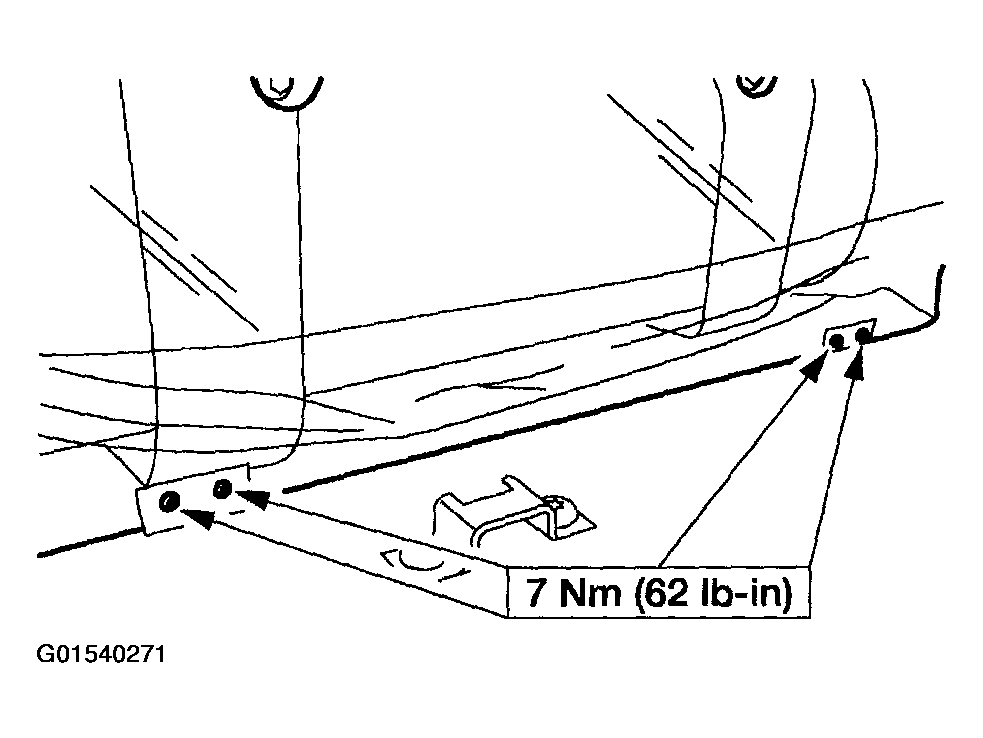

Remove the bolts and nuts.

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the partition separator.

Fig 2: Removing Bolts Of Partition Separator
Courtesy of FORD MOTOR CO.
Remove the bolts.

Fig 3: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the frame and shield assembly.

Fig 4: Removing Bolts Of Frame And Shield Assembly
Courtesy of FORD MOTOR CO.

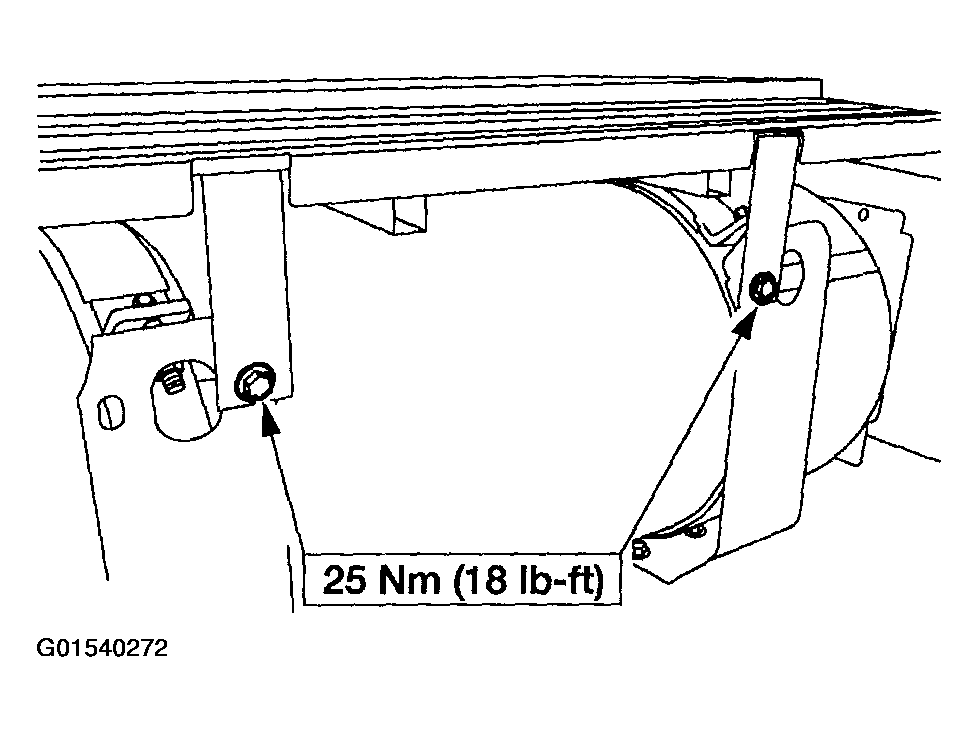

Remove the bolts and the fuel tank straps.

Fig 5: Removing Bolts Of Fuel Tank Straps
Courtesy of FORD MOTOR CO.
To install, follow the removal procedure in reverse order.
