Spacer - Mid-Ship Fuel Tank Mounting: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mid-ship fuel tank. For additional information, refer to FUEL TANK - AFT-AXLE ASSEMBLY .
  2. Remove the front mid-ship fuel tank mounting spacer.
    1. Remove the retaining bolts.
    2. Remove the front mid-ship fuel tank mounting spacer.

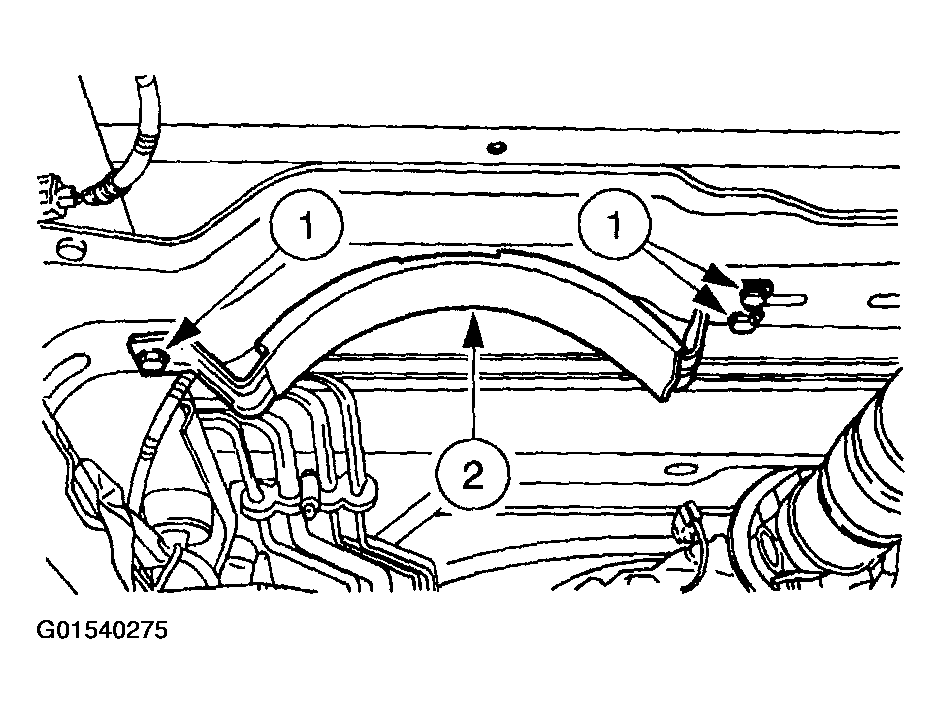

    Fig 1: Removing Front Mid-Ship Fuel Tank Mounting Spacer
    G01540275Courtesy of FORD MOTOR CO.
  3. Remove the rear mid-ship fuel tank mounting spacer.
    1. Remove the retaining bolts.
    2. Remove the rear mid-ship fuel tank mounting spacer.

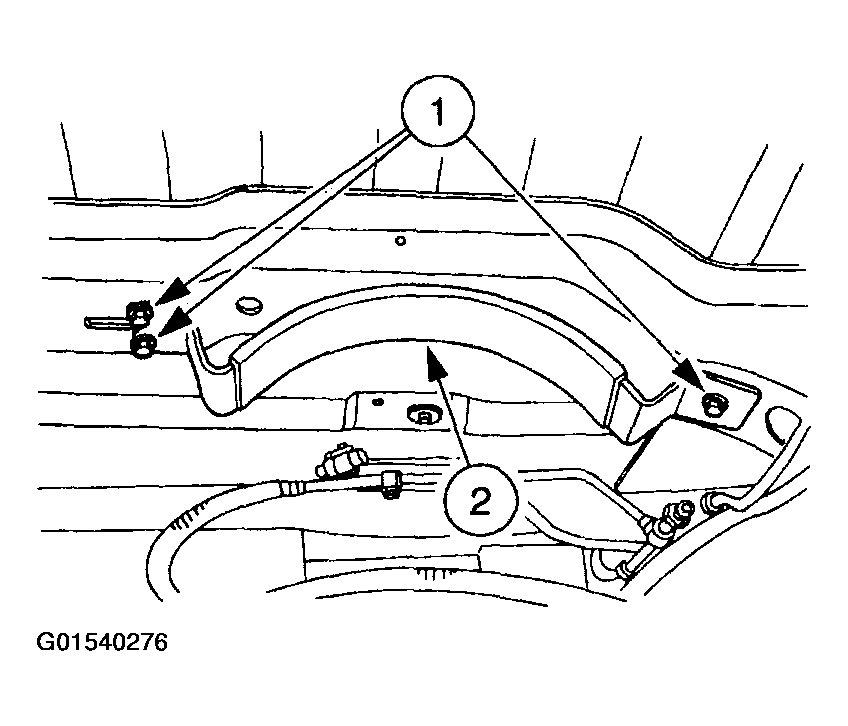

    Fig 2: Removing Rear Mid-Ship Fuel Tank Mounting Spacer
    G01540276Courtesy of FORD MOTOR CO.
