Spacer - Mid-Ship Fuel Tank Mounting: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Follow the removal procedure in reverse order.

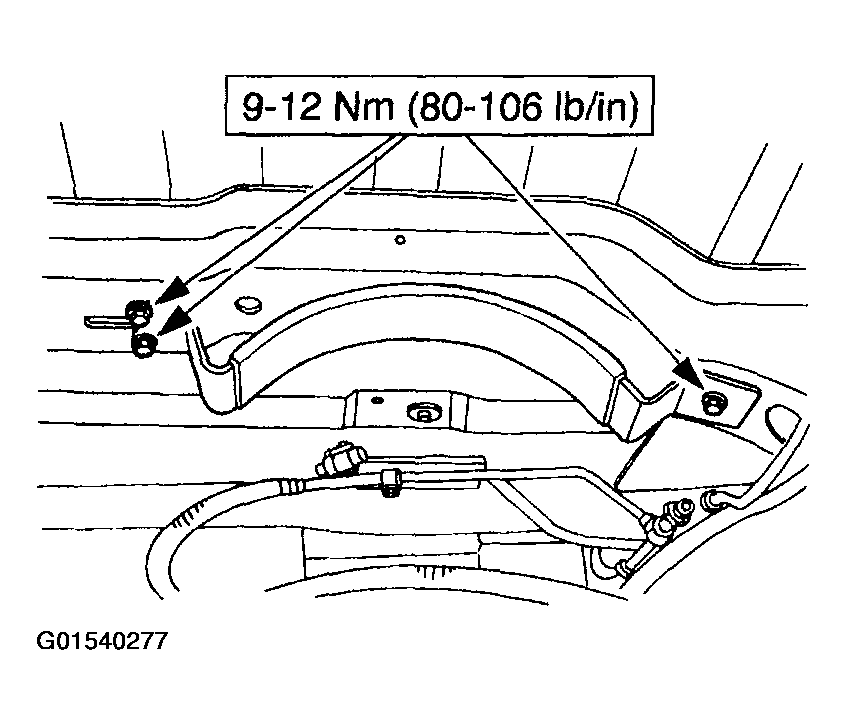

Fig 1: Fuel Tank Mounting Space Bolt Torque Specification (1 of 2)
Courtesy of FORD MOTOR CO.

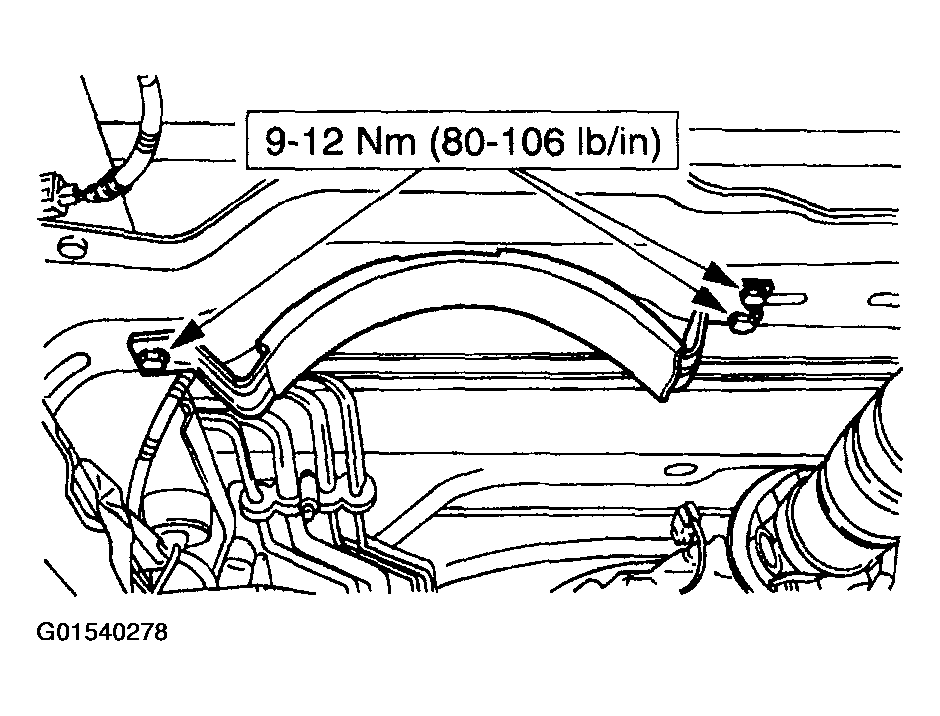

Fig 2: Fuel Tank Mounting Space Bolt Torque Specification (2 of 2)
Courtesy of FORD MOTOR CO.
