Sensor - Fuel Tank Pressure: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to learn the strategy.

NOTE: Replace the fuel tank pressure sensor and spacer O-ring seals.

NOTE: Lubricate the fuel tank pressure sensor and spacer O-ring seals with Super Premium 5W-30 engine oil meeting Ford specification WSS-M2C153-F or equivalent prior to installation, to help seal and ease the installation.

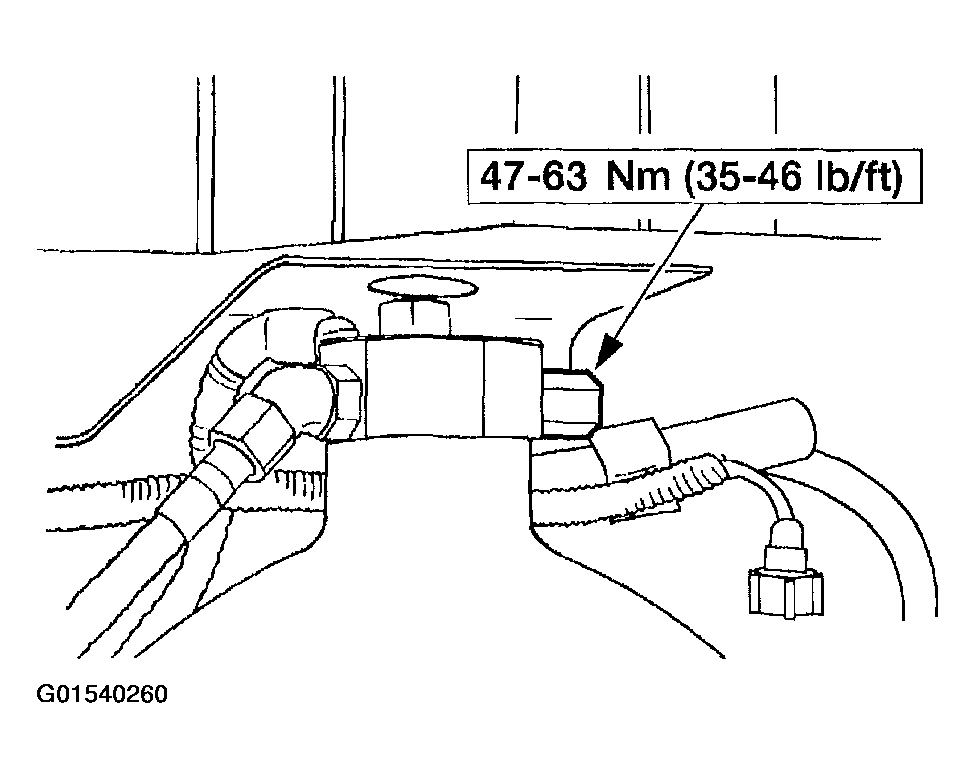

Fig 1: Fuel Tank Pressure Sensor Torque Specification

Courtesy of FORD MOTOR CO.

Follow the removal procedure in reverse order.

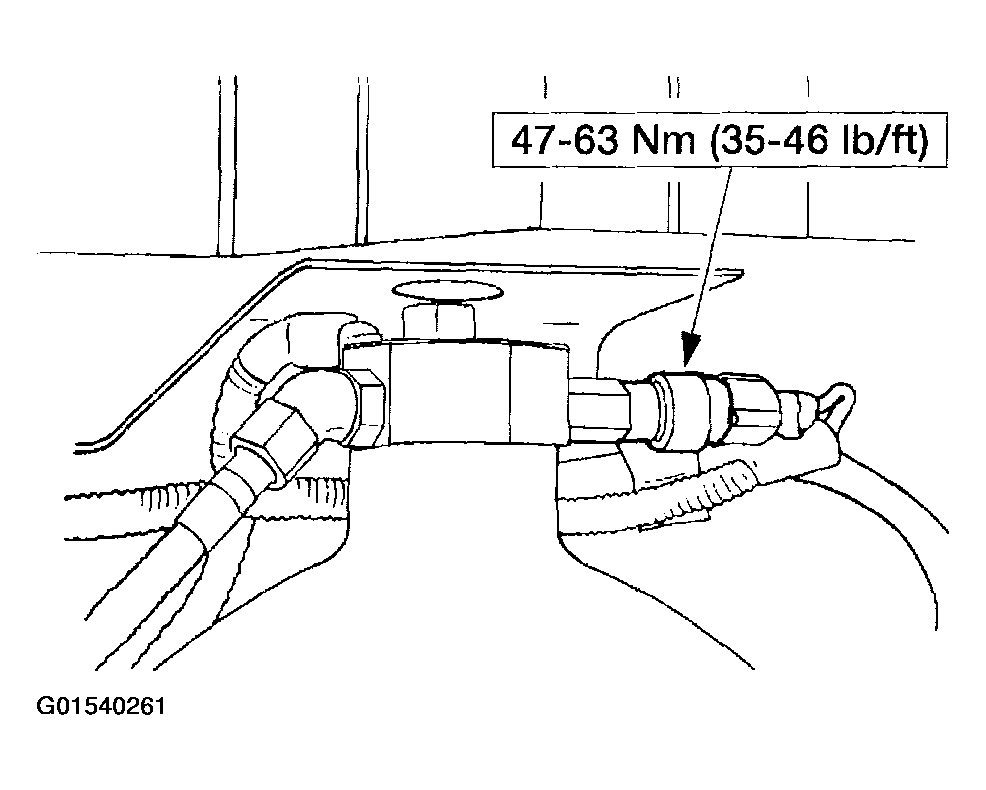

Fig 2: Fuel Tank Pressure Sensor Spacer Torque Specification

Courtesy of FORD MOTOR CO.
