Lines - Front High-Pressure Fuel: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the pressure relief - fuel line venting procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
  2. Remove the front high-pressure fuel line.
    1. Disconnect the front high-pressure fuel line from the mid high-pressure fuel line.
    2. Disconnect the front high-pressure fuel line from the coalescer/filter.
    3. Remove the front high-pressure fuel line from the vehicle.

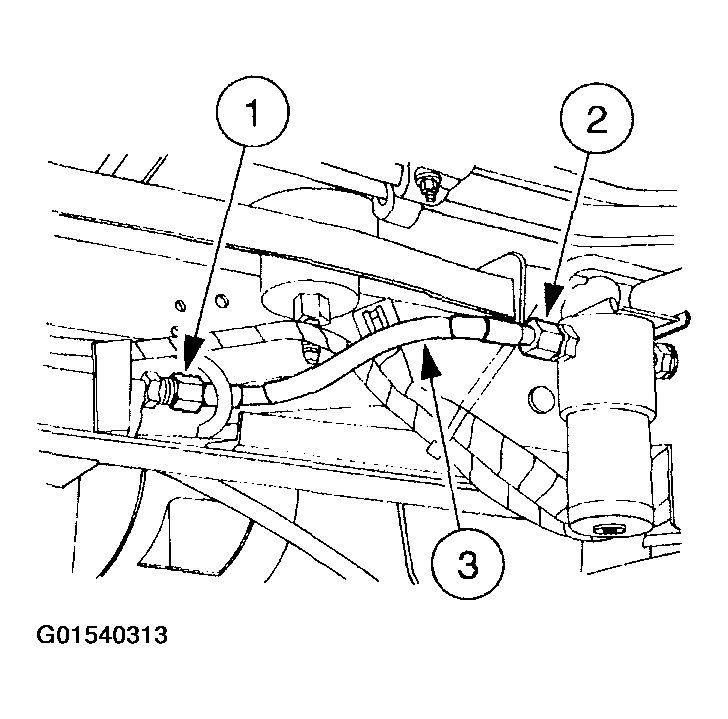

    Fig 1: Removing Front High-Pressure Fuel Line
    G01540313Courtesy of FORD MOTOR CO.
