High-Pressure Fuel Lines - Extension: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Perform the Pressure Relief - Fuel Line Venting Procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
Disconnect the extension high-pressure fuel line from the rear high-pressure fuel line.

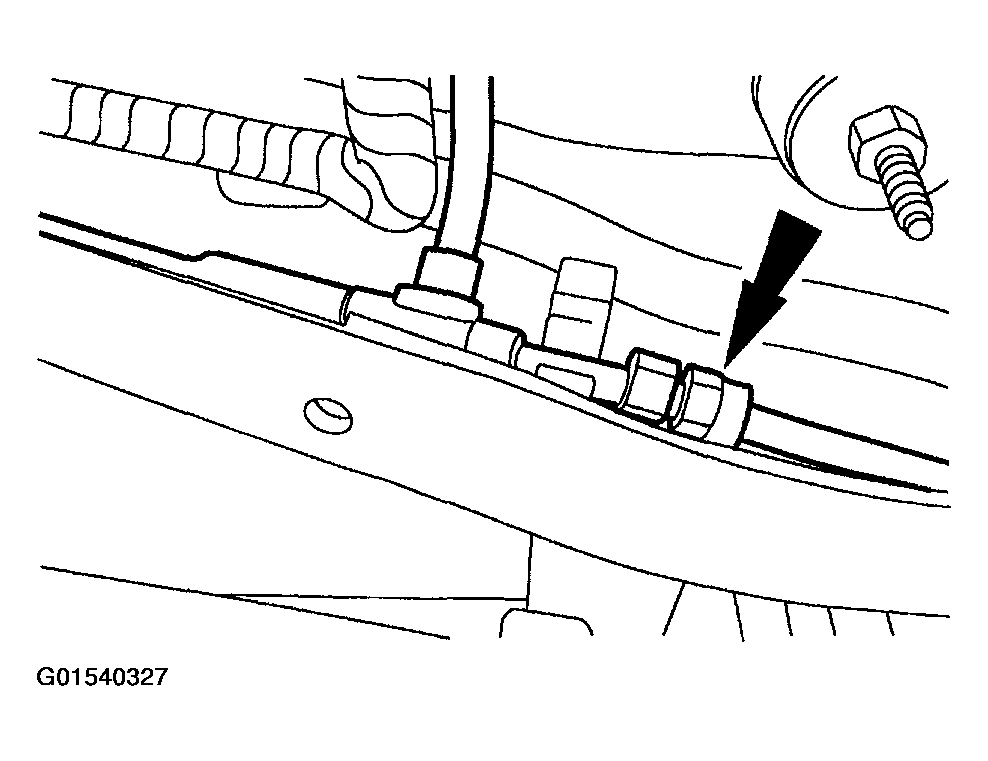

Fig 1: Disconnecting Extension High-Pressure Fuel Line
Courtesy of FORD MOTOR CO.
Disconnect the mid high-pressure fuel line from the extension high-pressure fuel line.

Fig 2: Disconnecting Mid High-Pressure Fuel Line
Courtesy of FORD MOTOR CO.
Free the extension high-pressure fuel line from the retaining clips.
Remove the extension high-pressure fuel line from the vehicle.
