Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

  1. If removing the fuel tank assembly for replacement of the fuel tank(s) or the fuel tank solenoid valve(s), perform the Pressure Relief - Fuel Tank Venting procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
  2. If removing the fuel tank assembly for replacement of the support straps or the spacers, turn in the manual lockdown valve jackscrews on the fuel tank solenoid valves.

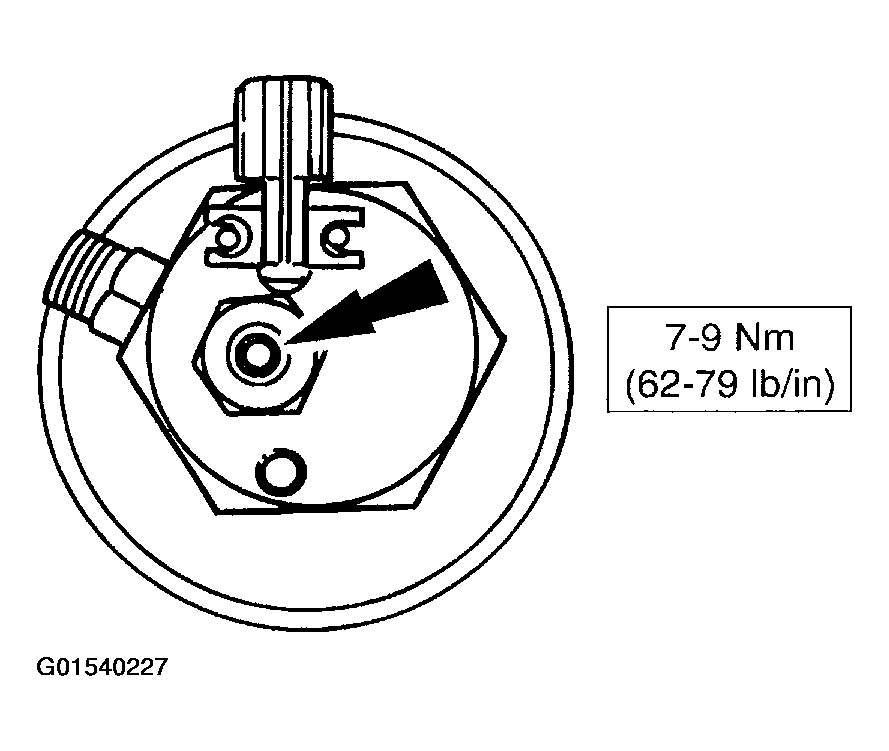

    Fig 1: Identifying Fuel Tank Solenoid Valves
    G01540227Courtesy of FORD MOTOR CO.
  3. Perform the Pressure Relief - Fuel Line Venting procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
  4. Disconnect the battery ground cable.
  5. Raise and support the vehicle.
  6. ALL VEHICLES EXCEPT E-450

  7. Remove the front stone shield retaining bolts.
    Fig 2: Removing Front Stone Shield Retaining Bolts
    G01540228Courtesy of FORD MOTOR CO.
  8. Remove the rear stone shield retaining bolts and the stone shield.

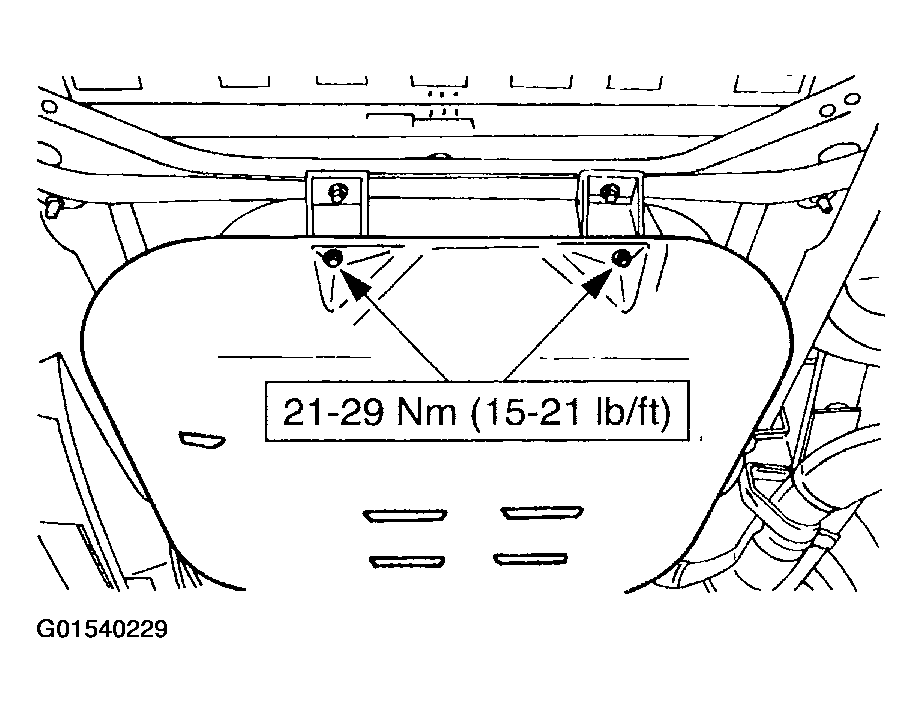

    Fig 3: Removing Rear Stone Shield Retaining Bolts And The Stone Shield
    G01540229Courtesy of FORD MOTOR CO.
  9. Remove the tank support strap retaining bolts and the tank support strap.

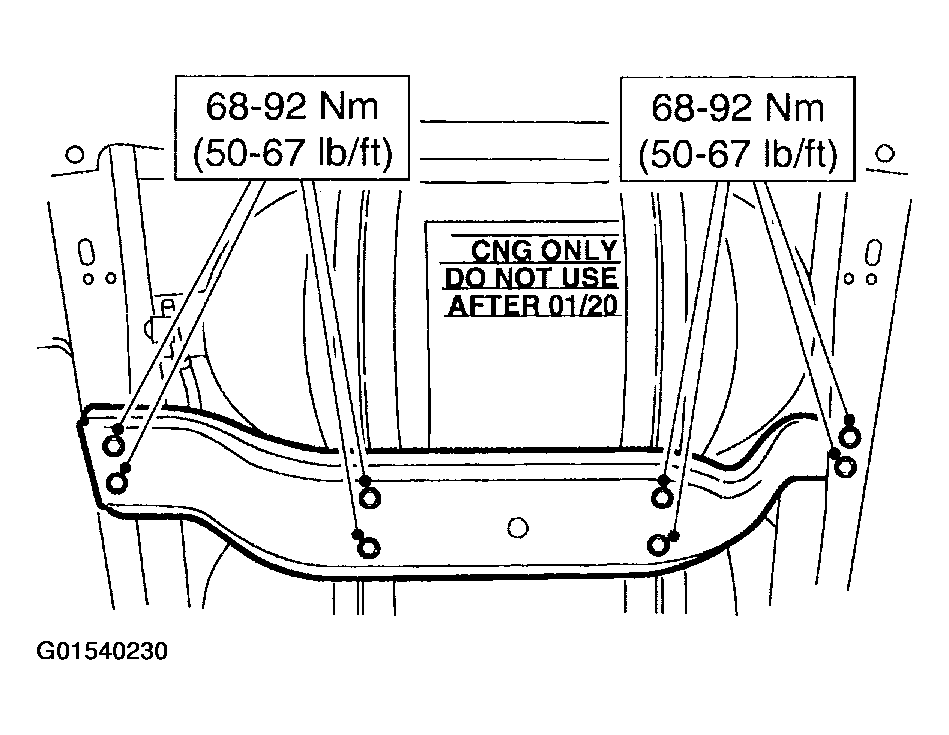

    Fig 4: Removing Tank Support Strap Retaining Bolts And Tank Support Strap
    G01540230Courtesy of FORD MOTOR CO.
  10. E-450 VEHICLES

  11. Remove the front stone shield retaining bolts.
    Fig 5: Removing Front Stone Shield Retaining Bolts
    G01540231Courtesy of FORD MOTOR CO.
  12. Remove the rear stone shield retaining bolts and the stone shield.

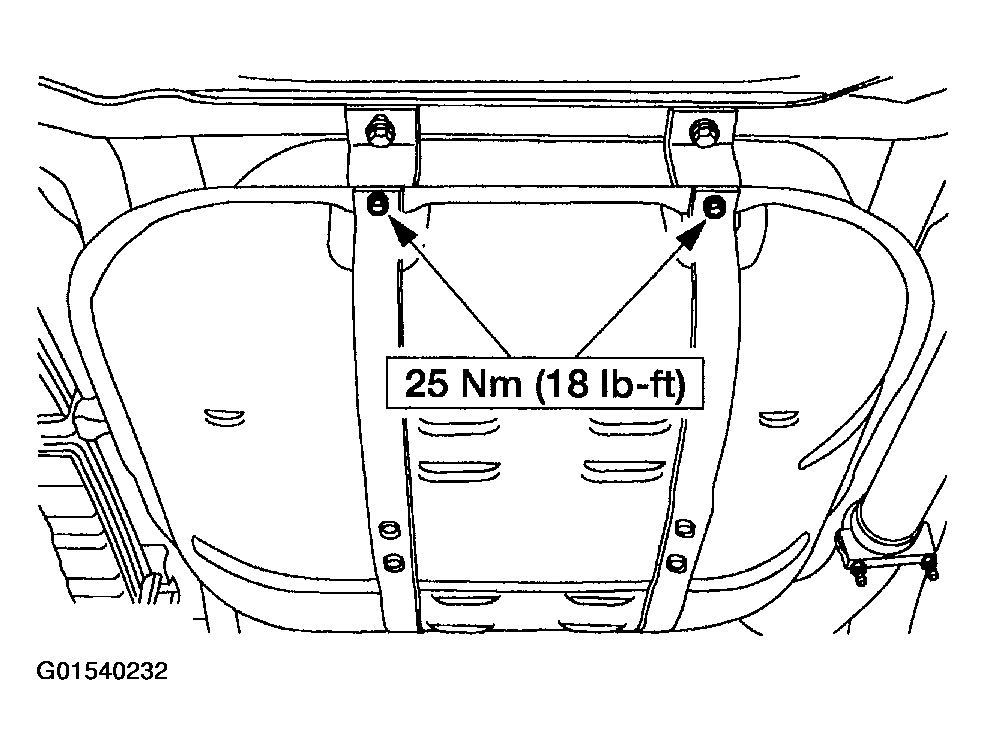

    Fig 6: Removing Rear Stone Shield Retaining Bolts
    G01540232Courtesy of FORD MOTOR CO.
  13. Remove the tank support strap retaining bolts and the tank support strap.

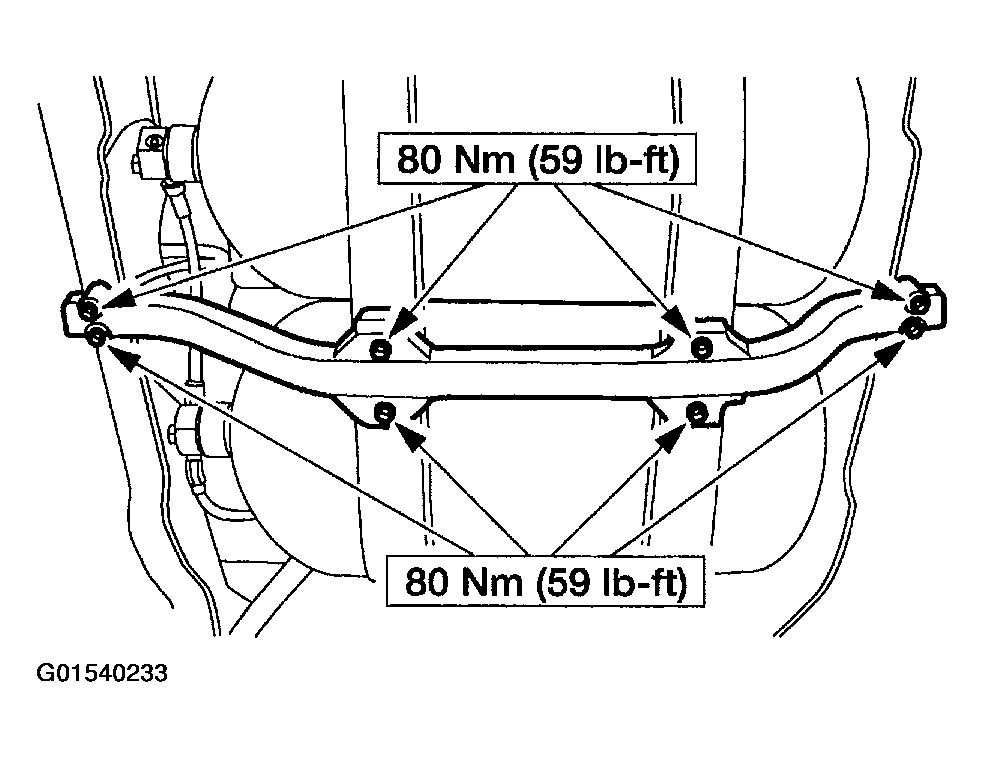

    Fig 7: Removing Tank Support Strap Retaining Bolts
    G01540233Courtesy of FORD MOTOR CO.
  14. ALL VEHICLES

  15. Disconnect the fuel tank assembly solenoid valves.
    • Disconnect the electrical connectors from the fuel tank solenoid valves.
    • Disconnect the high-pressure fuel line from the forward fuel tank solenoid valve.

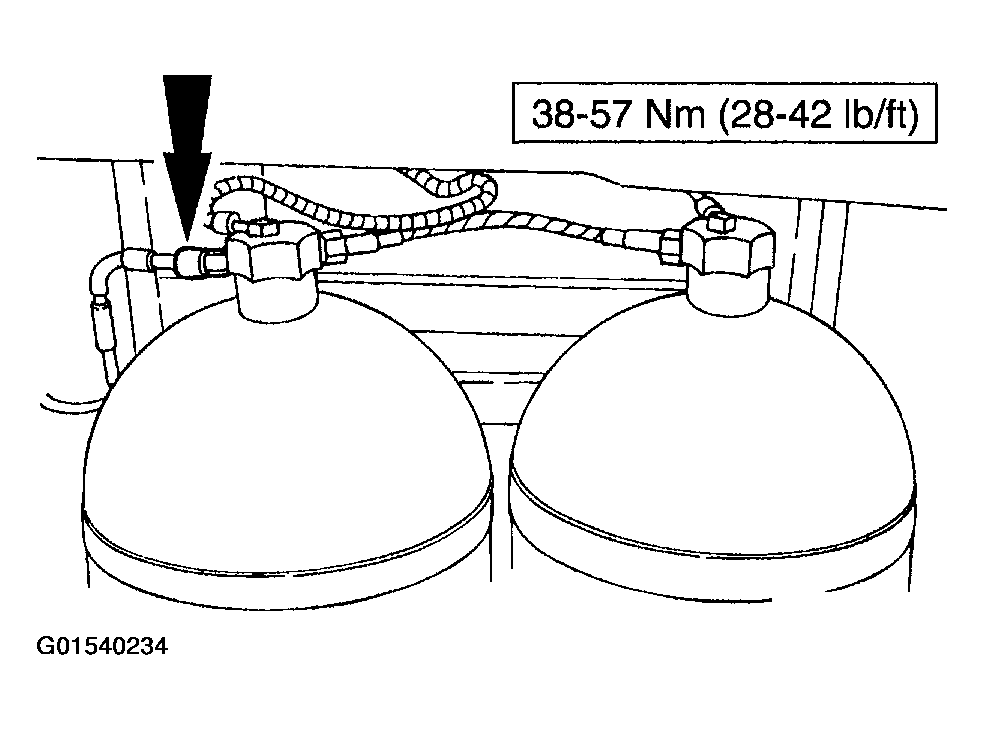

    Fig 8: Disconnecting High-Pressure Fuel Line
    G01540234Courtesy of FORD MOTOR CO.
  16. Install the Powertrain Lift with Tilting Plate and NGV fuel cell handler rubber pad.
    1. Position the Power Lift with Tilting Plate and NGV fuel cell handler rubber pad.
    2. Secure the fuel tank assembly with a nylon tie-down strap.

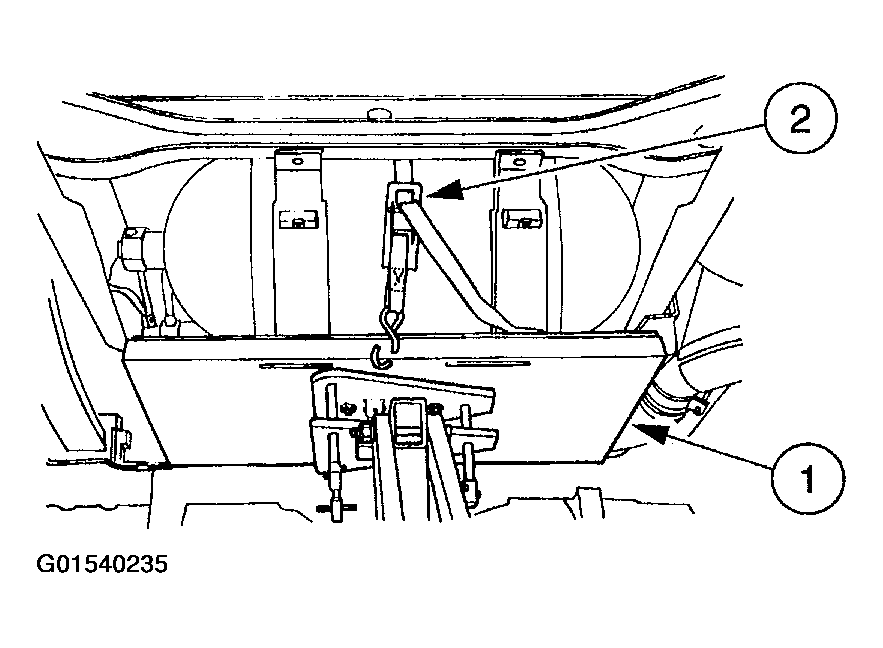

    Fig 9: Securing Fuel Tank Assembly With A Nylon Tie-Down Strap
    G01540235Courtesy of FORD MOTOR CO.
  17. Remove the front fuel tank assembly retaining nuts.

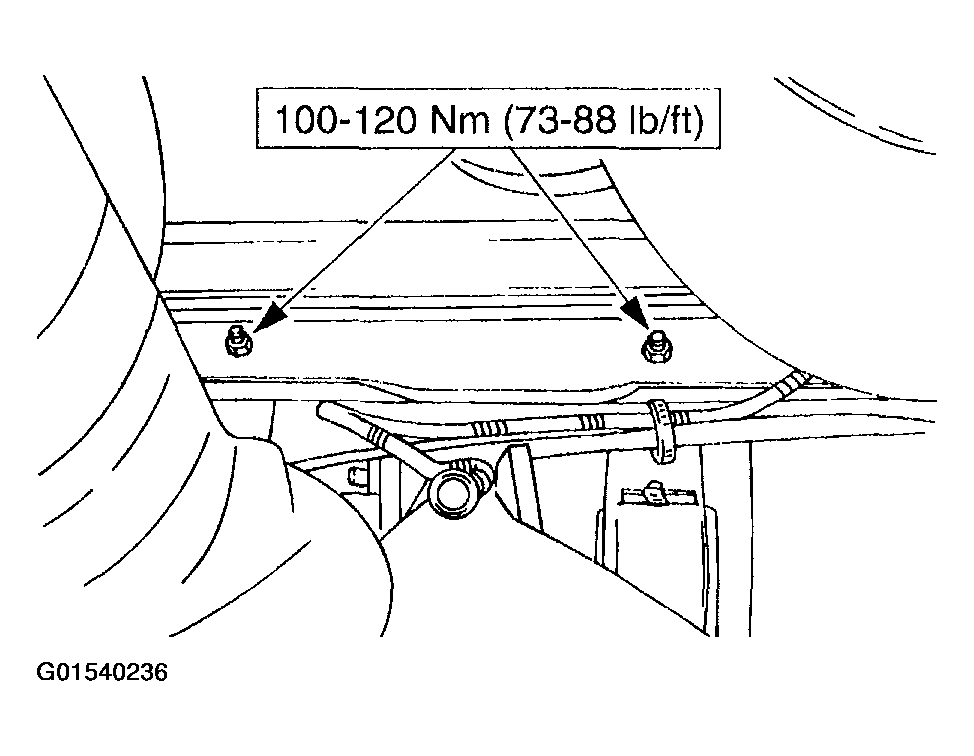

    Fig 10: Removing Front Fuel Tank Assembly Retaining Nuts
    G01540236Courtesy of FORD MOTOR CO.
  18. Remove the rear fuel tank assembly retaining bolts.

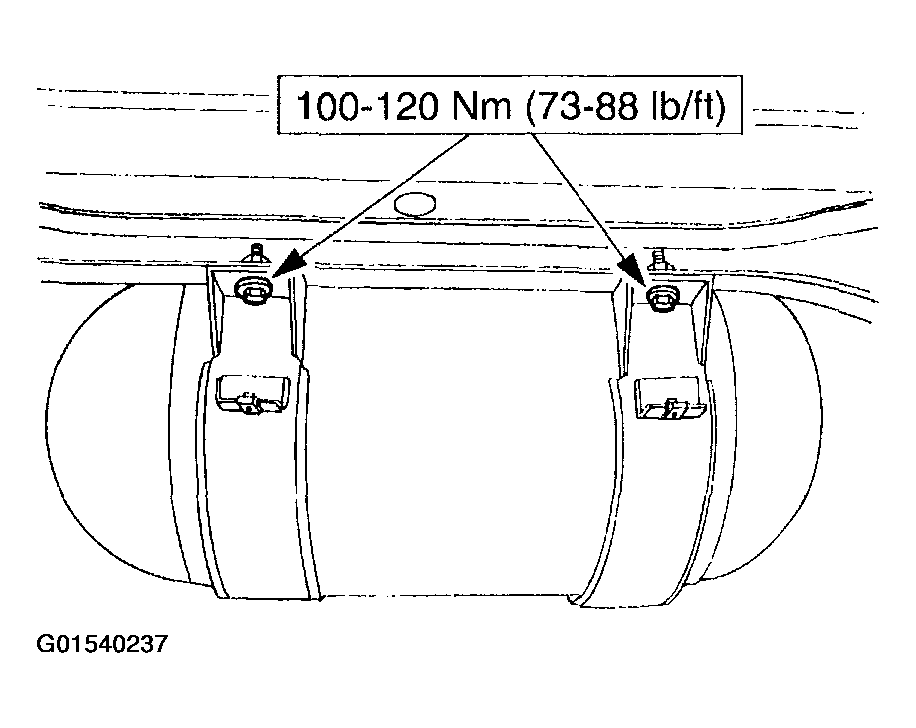

    Fig 11: Removing Rear Fuel Tank Assembly Retaining Bolts
    G01540237Courtesy of FORD MOTOR CO.
  19. Carefully lower and remove the aft-axle fuel tank assembly from the vehicle.

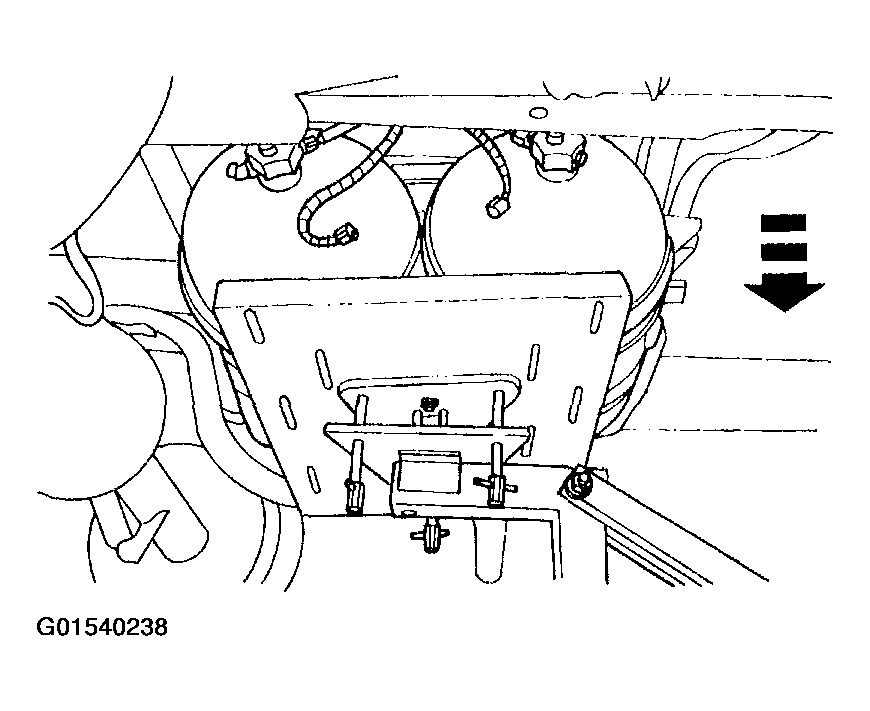

    Fig 12: Removing Aft-Axle Fuel Tank Assembly
    G01540238Courtesy of FORD MOTOR CO.
  20. NOTE: Replace the fuel line O-ring seal.
    NOTE: Lubricate the fuel line O-ring seal with 5W-30 engine oil meeting Ford specification WSS-M2C153-G or equivalent prior to installation, to help seal and ease the installation.
    NOTE: When tightening the fuel line, a torque wrench adapter must be used with the torque wrench. The use of a torque wrench adapter will alter the effective torque of the torque wrench being used. To correct the effective torque, a torque multiplication conversion must be used. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
    NOTE: After installation, perform the fuel system leak test procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
  21. To install, reverse the removal procedure.
