Pinpoint Test A: FUEL TANK SOLENOID STATUS

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

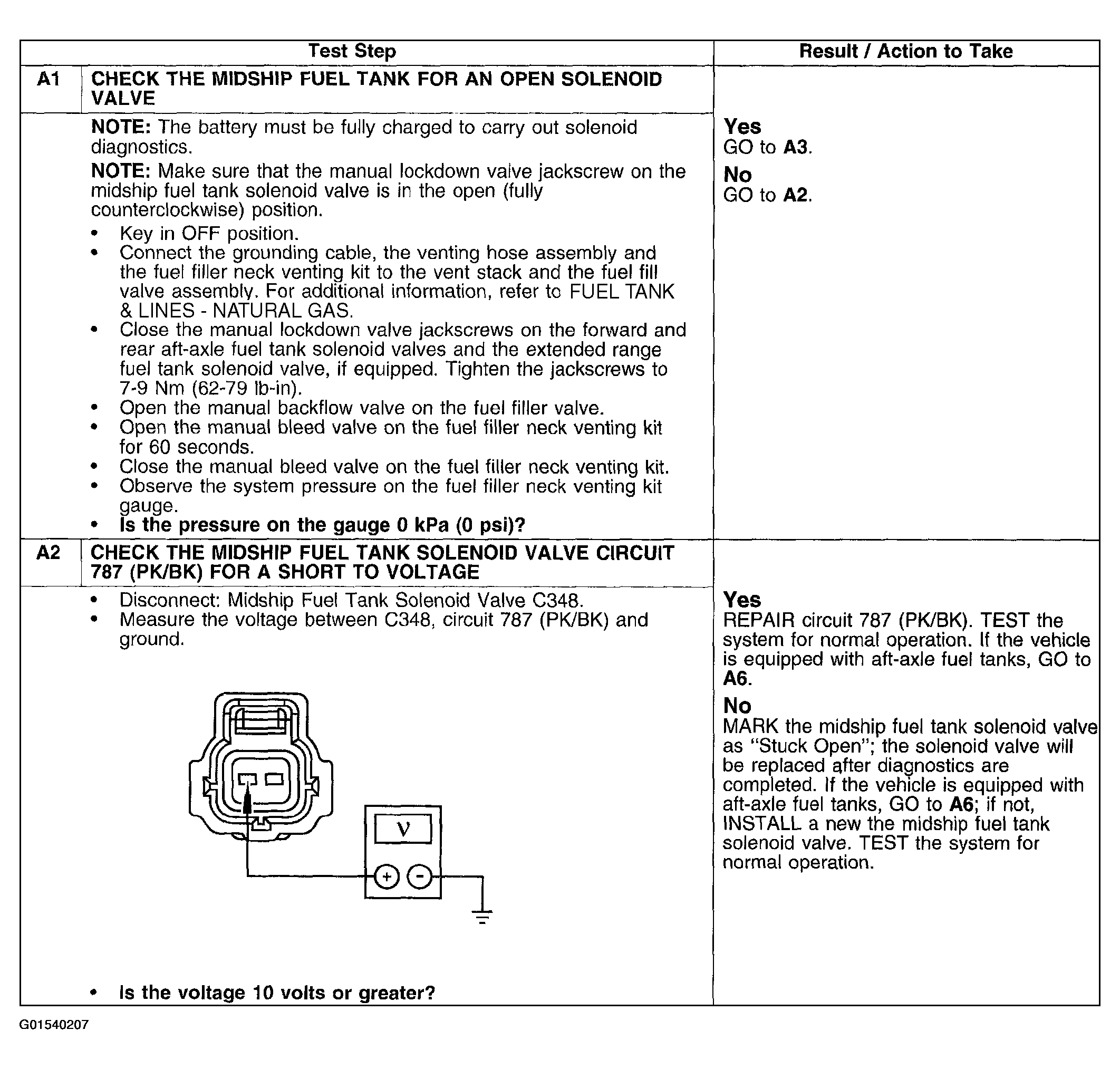

Fig 1: Identifying Pinpoint Test A Chart (A1-A2)

Courtesy of FORD MOTOR CO.

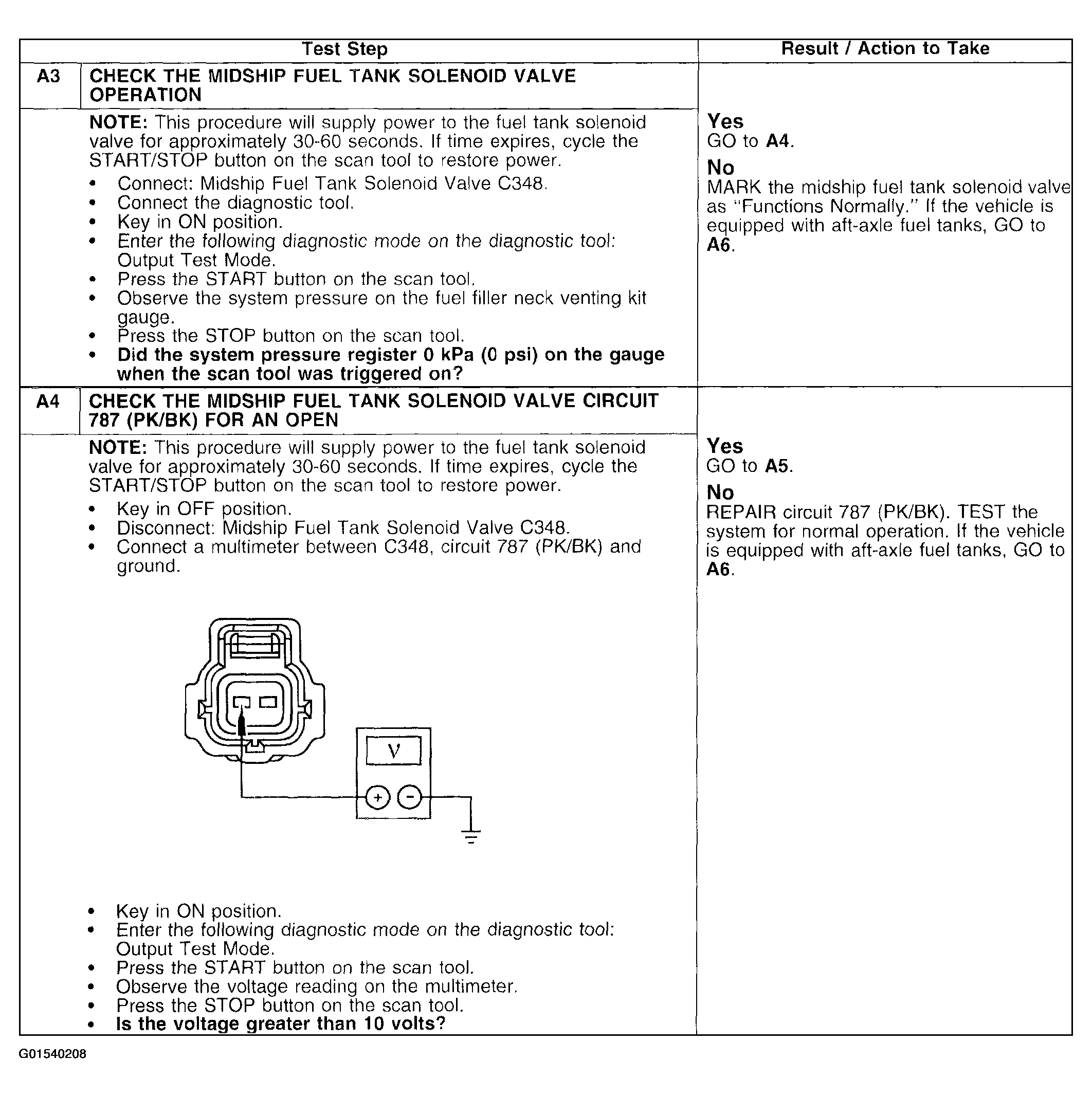

Fig 2: Identifying Pinpoint Test A Chart (A3-A4)

Courtesy of FORD MOTOR CO.

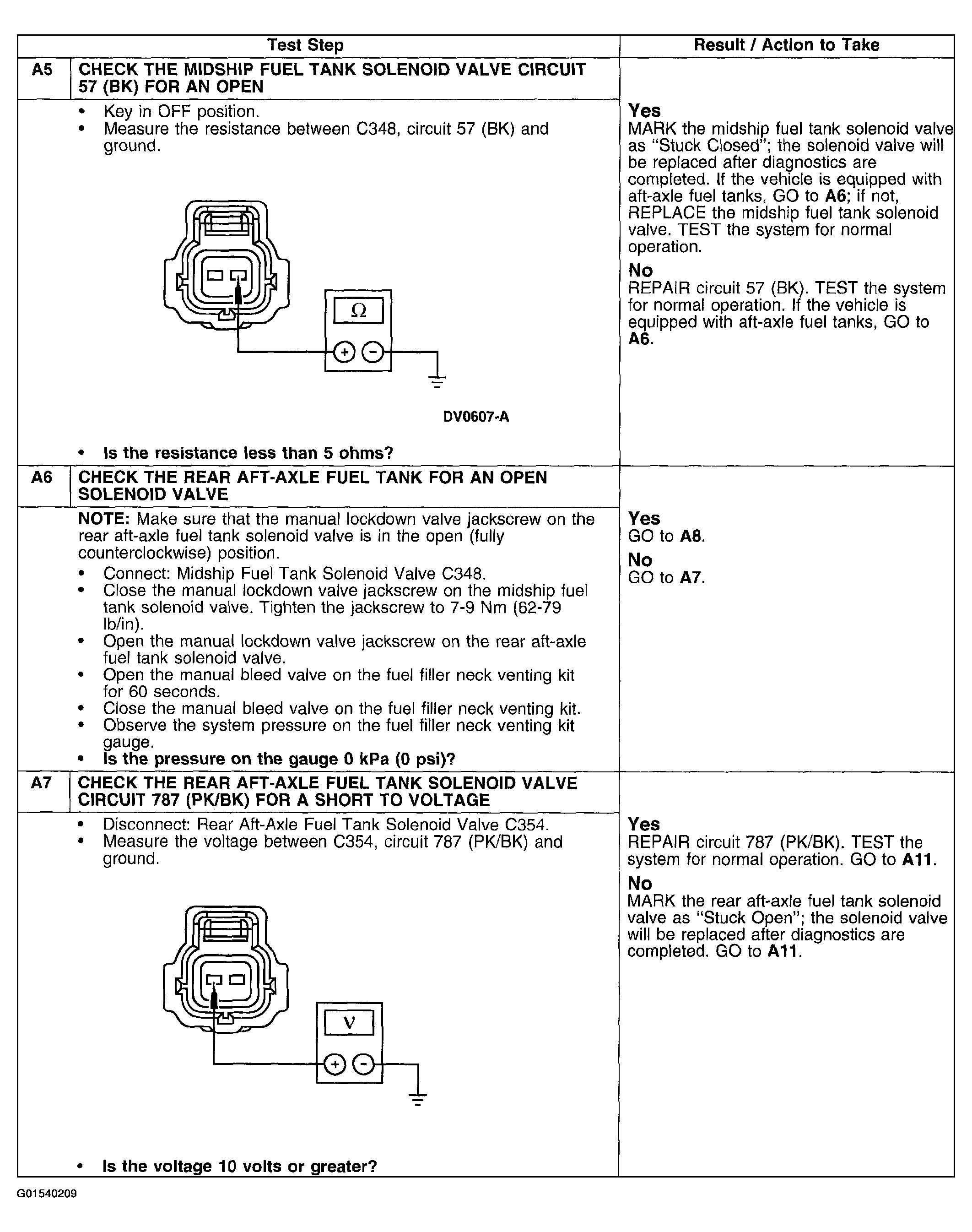

Fig 3: Identifying Pinpoint Test A Chart (A5-A7)

Courtesy of FORD MOTOR CO.

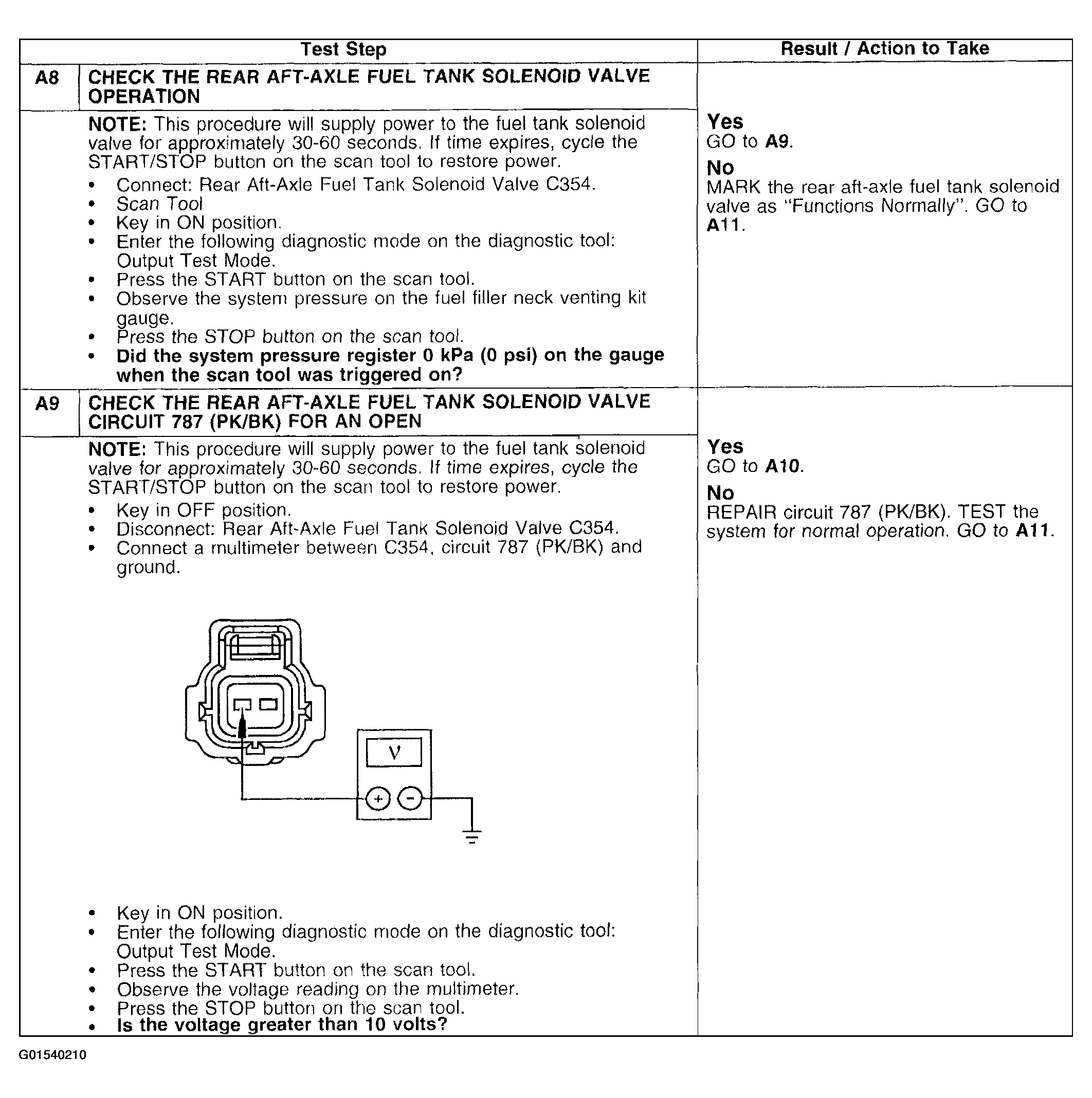

Fig 4: Identifying Pinpoint Test A Chart (A8-A9)

Courtesy of FORD MOTOR CO.

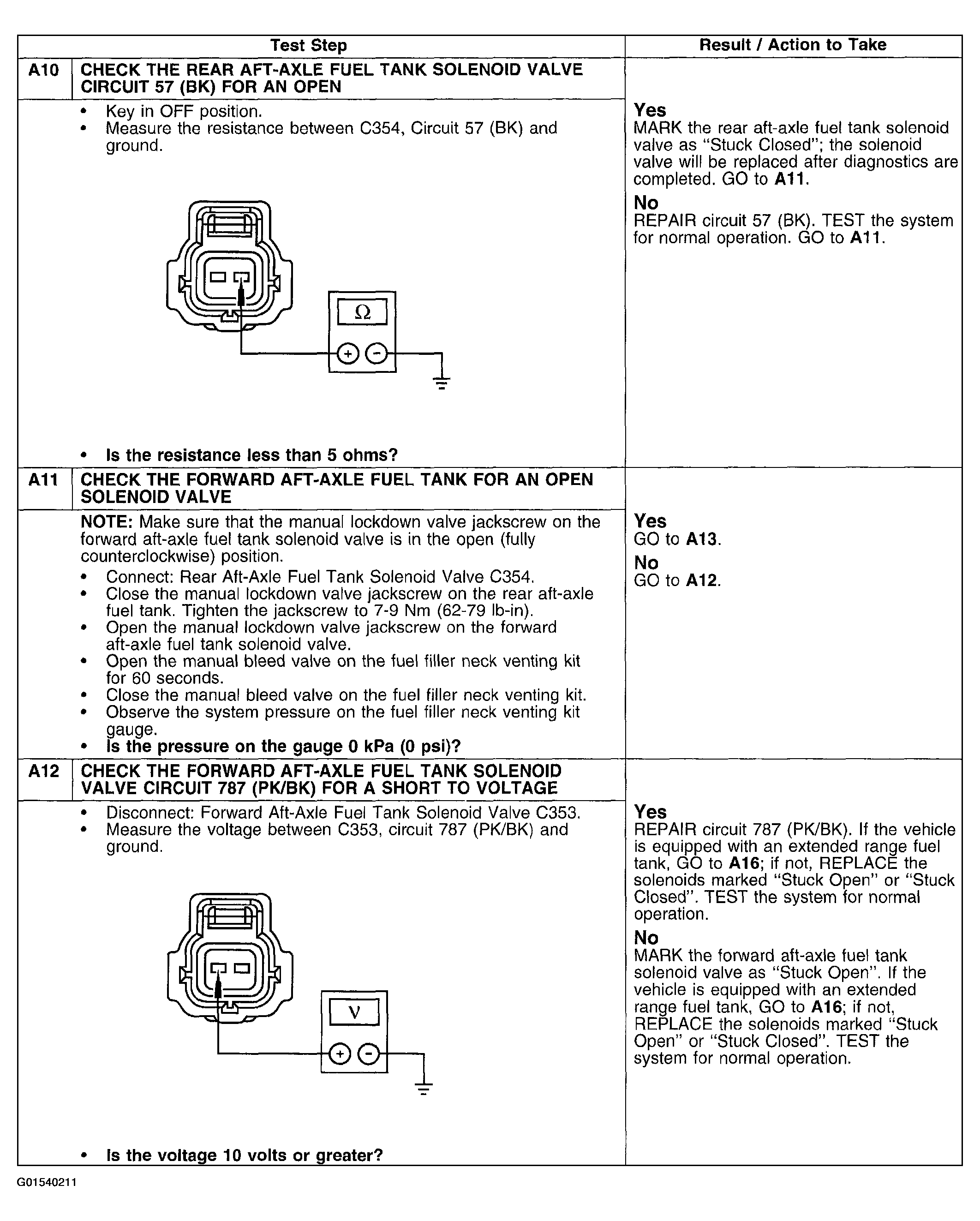

Fig 5: Identifying Pinpoint Test A Chart (A10-A12)

Courtesy of FORD MOTOR CO.

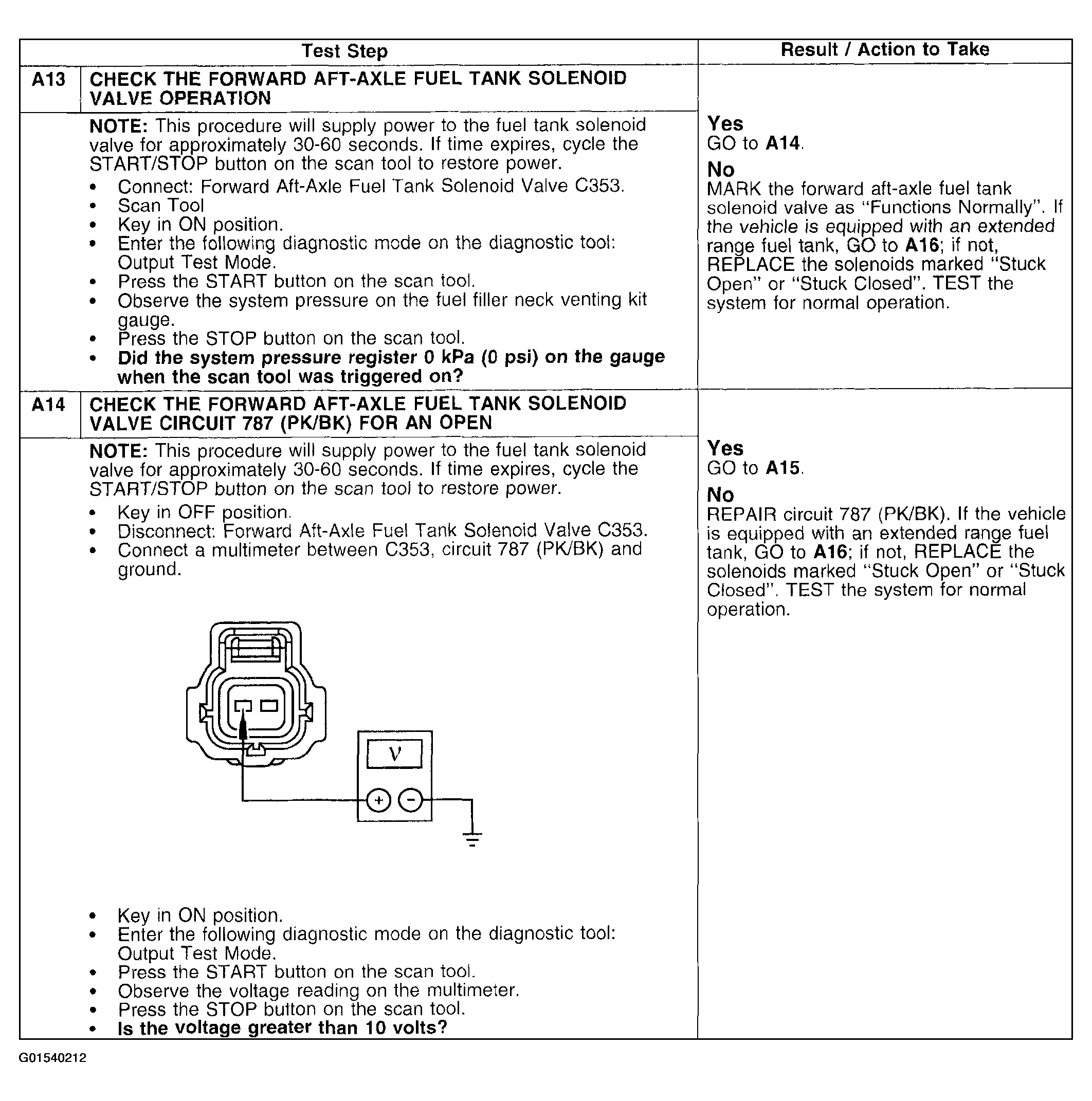

Fig 6: Identifying Pinpoint Test A Chart (A13-A14)

Courtesy of FORD MOTOR CO.

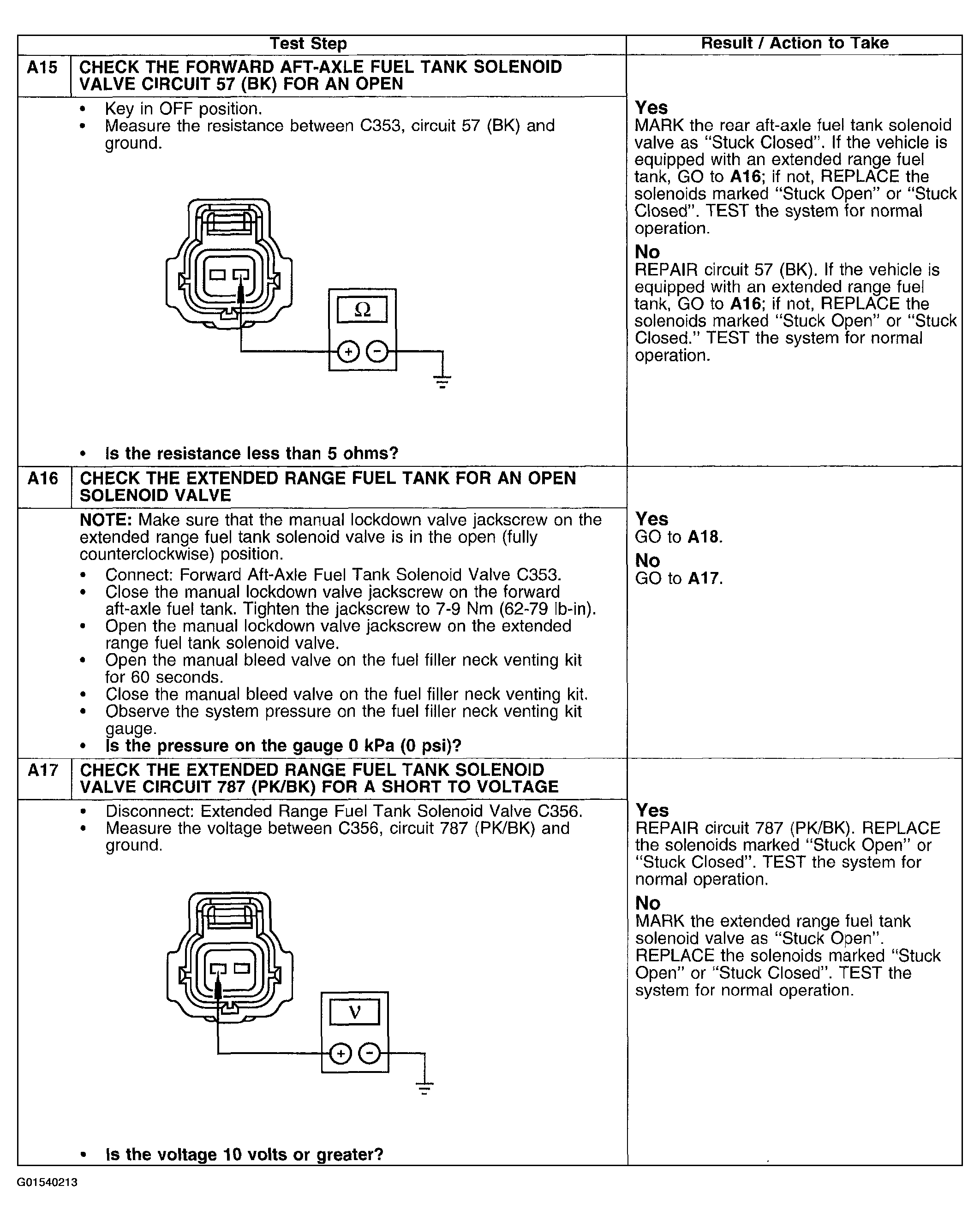

Fig 7: Identifying Pinpoint Test A Chart (A15-A17)

Courtesy of FORD MOTOR CO.

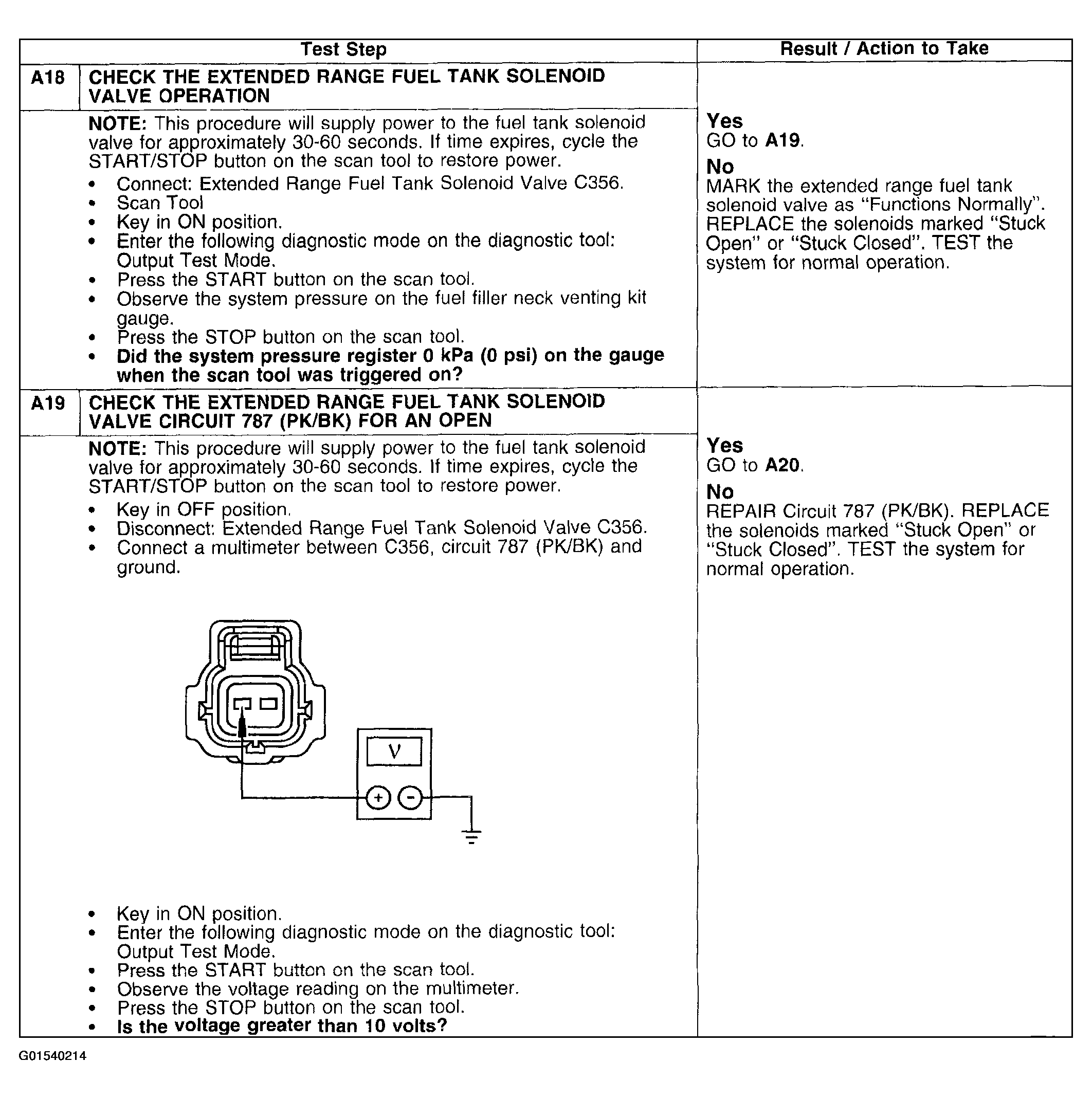

Fig 8: Identifying Pinpoint Test A Chart (A18-A19)

Courtesy of FORD MOTOR CO.

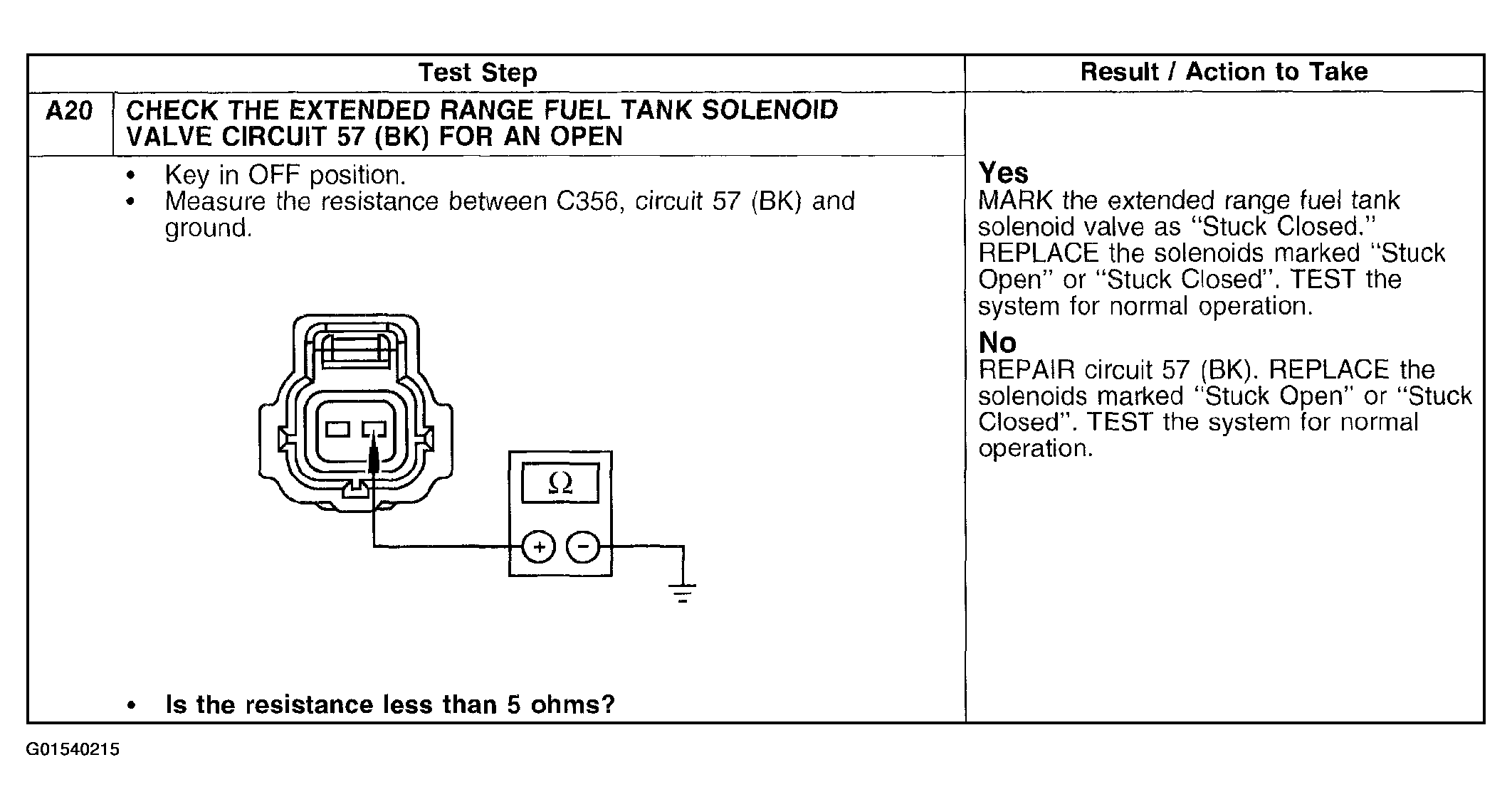

Fig 9: Identifying Pinpoint Test A Chart (A20)

Courtesy of FORD MOTOR CO.
