Variable Cam Timing Solenoid Valve

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2002 Mercury Sable, 2002 Mercury Mountaineer, 2002 Mercury Grand Marquis, 2002 Mercury Cougar, and 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Variable Cam Timing (VCT) solenoid valve is an integral part of VCT system. See Fig 1. VCT solenoid valve controls flow of engine oil to VCT unit assembly. As PCM duty cycles the solenoid valve, oil is allowed to flow to VCT unit assembly and advance or retard cam timing.

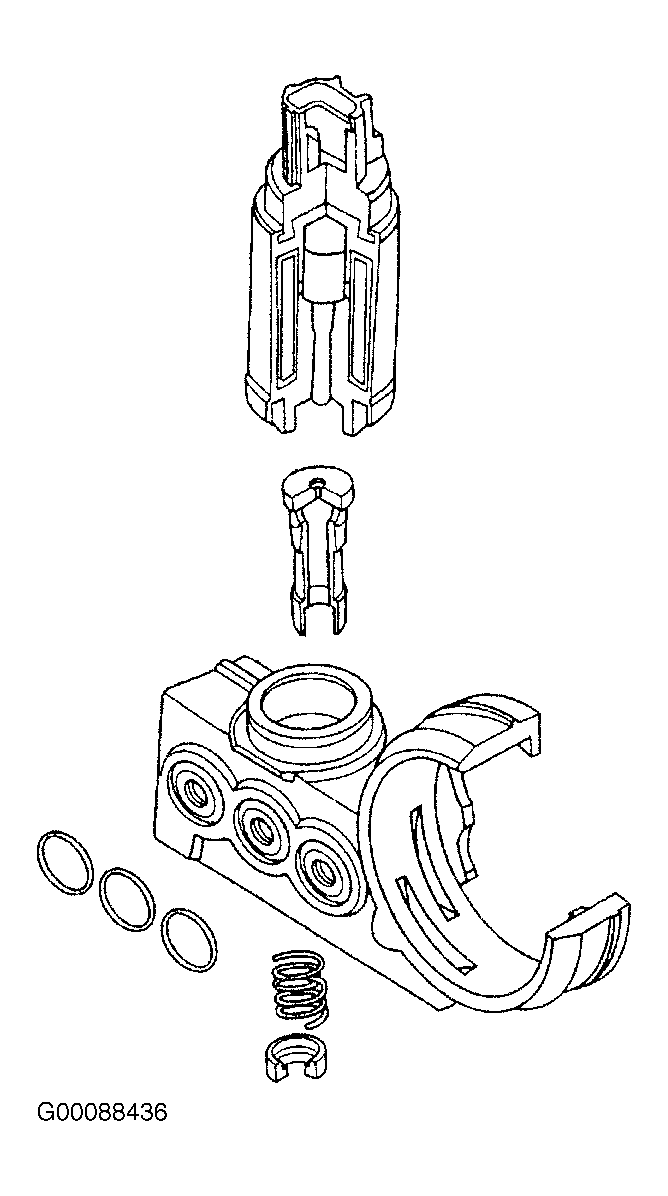

Fig 1: Identifying Variable Cam Timing Solenoid Valve
G00088436Courtesy of FORD MOTOR CO.
